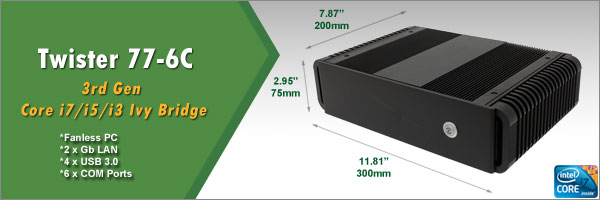

rohs compliant Twister 77 6C Mini PC
Think Big, go Thin
Features | Specifications | Picture Gallery | Power Consumption | Buy Now





Features
  • Support the 3rd generation Intel i7/i5/i3 Core mobile CPU
  • Intel QM77 core logic
  • Support Max 16GB DDR3 1066/1333/1600MHz SODIMM with 64Bit OS
  • Support 6Gb/s SATA 2.5" hard disk (thickness less than 15mm)
  • 2 x SIM Sockets for 3G Modem
  • 2 x Gigabit LAN
  • 4 x USB 3.0
  • 6 x COM Ports
  • Low noise and low power consumption
  • HDMI, DVI port(Digital only) and VGA Port for Triple display
  • Support Full 1080p playback
  • Windows 8 Compatible
  • Power in: DC 12V/100W/ 4 Pins
  • Support PCI card Max Size 4"(H) x 6.31"(L)

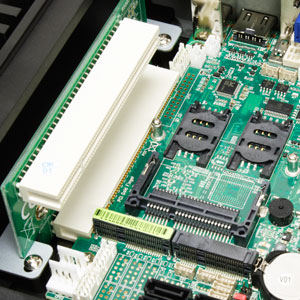

Something
 1 x PCI Slot
 2 x Mini PCI-e Slot
 2 x SIM Sockets for 3G Modem
Related Products
i7 wide extended temperature mini pc computer

SP695PH(PCI Slot) Mini PC
-PCI Slot
9th Gen Intel® (Coffee Lake)

Read More
i7 wide extended temperature mini pc computer

SP675HP(PCI Slot) Mini PC
-PCI Slot
3rd and 2nd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More
i7 wide extended temperature mini pc computer

SP685HP(PCI Slot) Mini PC
-PCI Slot
4th Gen Intel® (Haswell)

Read More
i7 wide extended temperature mini pc computer

Twister170P(PCI) Mini PC
-PCI Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FP(PCI Slot) Mini PC
-PCI Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
-PCI Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Expando Quad 2IE416 Mini PC
-PCI Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More

Power Consumption in Watts
 14   20   42
idleIdle normalNormal fullPeak / Full

spacer
Twister 77 6C (PCI)
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Twister 77 6C Fanless Mini PC Specification
CPU Type

Support the 3rd generation Intel i7/i5/i3 Core mobile CPU
MB Chipset QM77
Video Intel Graphic chipset various on Selected Processor
Intel® Core™ i3-3120M Processor (3M Cache, 2.50 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i5-3320M Processor (3M Cache, 3.30 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i5-3360M Processor (3M Cache, 3.50 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i7-3520M Processor (4M Cache, 3.60 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i7-3630QM Processor (6M Cache, up to 3.40 GHz)(4 Cores)
(Intel® HD Graphics 4000)
Memory Support 2 x SODIMM DDR3 1066/1333/1600MHz
Maximum 16GB
SATA Supports SATA 6Gb/s and 3Gb/s specification
Support 2.5" hard disk drive & optical disk drive
Support AHCI function
Support SATA SSD drive
Audio HD Audio Two channel sound
LAN Intel 82579LM Gigabit Ethernet PHY x 1
Intel 82574L PCIe LAN NIC chipset x 1
Supports PXE boot
Supports Wake on LAN
IO Function 6 x RS232
COM2 Jumper Switchable to RS232/422/485
1 x Mic in
1 x Line out
1 x VGA
1 x DVI-D
1 x HDMI
2 x Gb LAN
4 x USB 3.0
DIO & WDT Hardware digital Input & Output, 8xDI / 8xDO
Hardware Watch Dog Timer, 0~255 sec programmable
Expansion 1 x PCI supports PCI rev:2.2 interface
Support PCI card Max Size 4"(H) x 6.31"(L)
1 x PCIe Mini card for PCIe & USB interface
1 x CFast Slot
2 x SIM Sockets for 3G Modem
Optional Features Optional Mini PCI-e TV Tuner
Optional Wifi
Optional Bluetooth
Optional Digital I/O board
Mounting Optional Wall Mount Bracket
Power

On board DC +12V convert to +3.3V/+12V/+5V for system
- 12V support (Optional)
Supports power loss resume feature
External 100~240V AC-DC Adapter 4-pin 12V @ 7A 84W

Operation Temperature

0 ~ 40°C with Hard Disk
0 ~ 60°C with SSD

Operation Humidity 5~95% @ 60°C, non-condensing

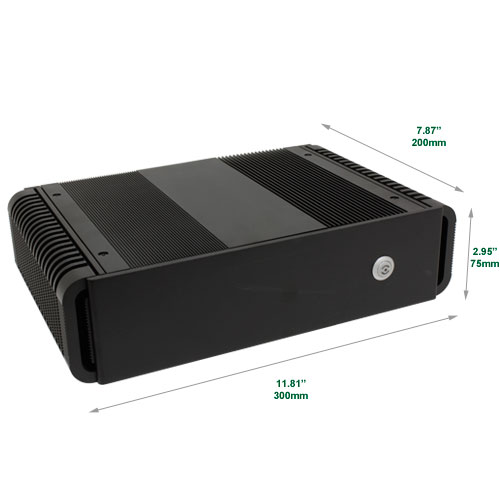

Dimension 11.81"(W) x 7.87"(D) x 2.95"(H)
Weight 6.9 lbs. Fully Loaded
OS Support Windows XP
Windows Vista
Windows 7 x86, x64
Windows 8.1 x86, x64
Ubuntu
User Manual
Resolution Support HDTV 1080P
Support 16:9 resolution
Maximum Resolution: 2048x1536 32-bit 75 Hz
