Mini PC with PCI slot - SlimPro SP685HP

Mini PC with PCI slot - SlimPro SP685HP is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 4^th generation Intel® Core™ i7 (Haswell) engine running with 15% enhanced productivity than former generation, Intel® Q87 chipset, dual channel DDR3 memory at 1600MHz, up to 16GB. Advanced Intel® HD Graphics 4600 supports DVI to VGA, DVI-I, DisplayPort interfaces, up to 2 independent 1080P displays. It is delivering leading performance, trusted rugged reliability and compact integration.

Mini PC with PCI slot - SlimPro SP685HP is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

SP685HP Mini PC

4th Generation Intel® (Haswell)

6 x USB 3.0
Display Ports
PCI Slot
Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC

Features List

Intel Q87 core logic

Support the 4th generation Intel FCLGA1150 low power CPU

Support SODIMM DDR3 1333/1600Mhz 8GB * 2

On-board gigabit LAN and 6 x USB 3.0 ports

PCI Slot
Max Card Dimension: 4.2"(H)x9.75"(D)

On-board DVI-I and Display Port

Optional dual mini-PCIe slots support one full size and one half size mini card

Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)

Support SATA slim optical disk drive

Power in: DC 12V/84W

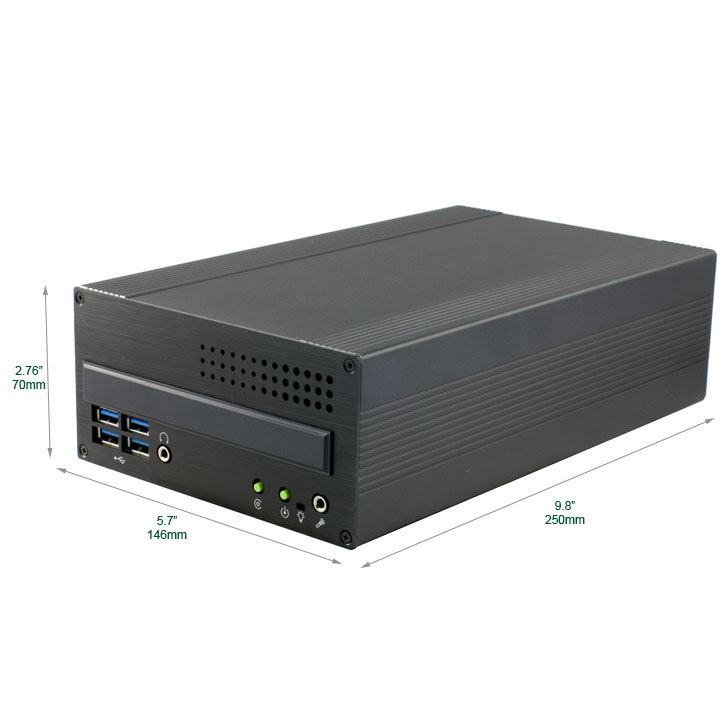

Dimension 5.7"(W) x 9.8"(D) x 2.76"(H) (W146mm x L250mm x H70mm)

P
Specifications

System
Processor	Quad Core 4th Generation/ Intel® Core™ LGA1150 low power CPU (Desktop Type)
Chipset	Intel® Q87
BIOS	Insyde UEFI BIOS
Memory	2 x DDR3 1600MHz SO-DIMM, up to 16GB
I/O Interface
Serial	- 1 COM RS-232, Optional 2^nd COM
USB	- 6 x USB 3.0 (External)
Video	- DVI-D (Digital and Analog) - Display Port
PS/2	- PS/2 Mouse and Keyboard Ports
LED	Power, HDD
Expansion
Mini PCIe	Mini PCIe Socket : - 1 Full-size for PCIe/ USB - 1 Half-size for PCIe/ USB
Slots	PCI Slot
Graphics
Graphics Processor	- Intel® HD Graphics 4600
Interface	- DVI to VGA : Up to 1920 x 1200 @ 60Hz - DVI-I : Up to 1920 x 1080 @ 60Hz - DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA	2 SATA III (6Gbps)
Storage Device	- 2 x 2.5" SSD/ HDD Bracket (Internal) 2^nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1	Intel® I217LM Gigabit LAN
Power
Power Input	Voltage 12V, DC-in
Power Adapter	Input universal AC 100~240V; Output DC 12V/84W
Others
Smart Management	Wake on LAN, PXE supported
HW Monitor	CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H)	146mm x 250mm x 70mm (5.7” x 9.8” x 2.76”)
Weight	2.4 kg (5.3 lb)
Mounting	- Optional U-Shape mounting bracket - Optional Dual VESA mounting Bracket
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported
Linux	Ubuntu 14.04
Environment
Operating Temperature	0 to 40°C with Hard Disk 0 to 60°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
