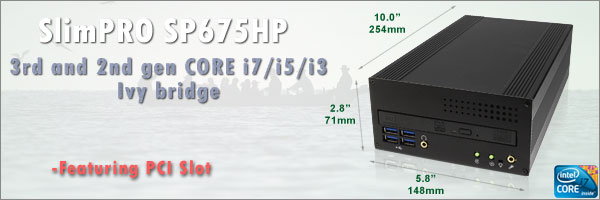

SlimPRO SP675HP Mini PC Fully functional and upgradable mini pc system
	Features | Specifications | Picture Gallery | Power Consumption | Contact Sales

SlimPRO SP675 Series are being replace with a newer version SP695.
Pleace click here for SP695PH (PCI Slot)

---

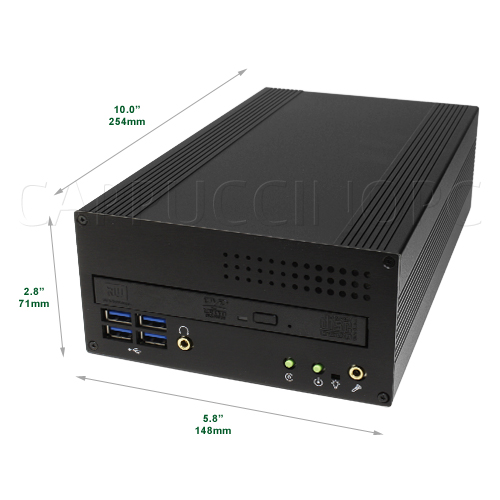

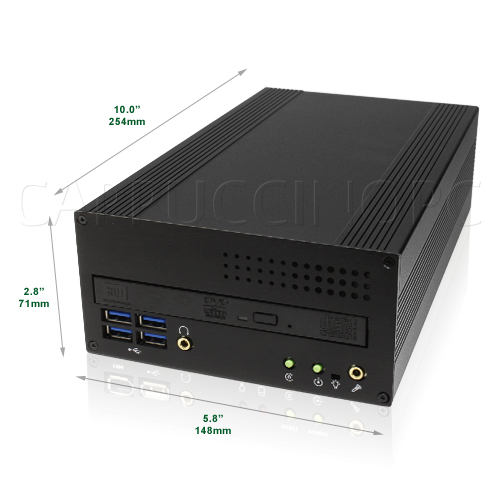

Features Support the 3rd and 2nd generation Intel i7/i5/i3 Core mobile CPU Intel HM76 core logic Support Max 16GB DDR3 1066/1333/1600MHz SODIMM with 64Bit OS Support 6Gb/s SATA 2.5" hard disk (thickness less than 15mm) On-board Gigabit LAN and USB 3.0/2.0 Low noise and low power consumption PCI Slot Max PCI Card Dimension: 4.2"(H)x9.75"(D) Optional 2nd COM Port Optional 3 extra Gigabit LAN coexist with Optical Drive 2 x Mini PCI Express slot Optional DVI port add-on for dual display Optional Parallel Port Support Full 1080p playback Windows 8 Compatible Power in: DC 12V/60W 5.8"(W) x 9.8"(D) x 2.75"(H) (14.6 x 25 x 7 cm) Power Consumption in Watts  16   30   51  Idle Normal Peak / Full Pictures Gallery





Specifications Processor Intel FCPGA988B socket Support the 3rd and 2nd generation Intel i7/i5/i3 Core™ mobile CPU Memory Support 2 x SODIMM DDR3 1066/1333/1600MHz Maximum 16GB Bios Insyde UEFI BIOS CPU temperature, cooling fan speed, system voltage (ESC key to Enter Bios Menu) Core Logic Intel HM76(Panther Point) Video Intel Graphic chipset various on Selected Processor Ivy Bridge Processors(3nd Generation): Intel® Core™ i3-3120M Processor (3M Cache, 2.50 GHz)(Intel® HD Graphics 4000) Intel® Core™ i5-3320M Processor (3M Cache, 3.30 GHz)(Intel® HD Graphics 4000) Intel® Core™ i5-3360M Processor (3M Cache, 3.50 GHz)(Intel® HD Graphics 4000) Intel® Core™ i7-3520M Processor (4M Cache, 3.60 GHz)(Intel® HD Graphics 4000) Intel® Core™ i7-3630QM Processor (6M Cache, up to 3.40 GHz)(4 Cores) (Intel® HD Graphics 4000) Sandy Bridge Processors(2nd Generation): Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)(Intel® HD Graphics 2000) Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)(Intel® HD Graphics 3000) Intel® Core™ i5-2520M Processor (3M Cache, 2.50 GHz)(Intel® HD Graphics 3000) Intel® Core™ i5-2540M Processor (3M Cache, 2.60 GHz)(Intel® HD Graphics 3000) Intel® Core™ i7-2670QM Processor (6M Cache, up to 3.10 GHz)(4 Cores) (Intel® HD Graphics 3000) Audio Realtek ALC888 Software high definition audio CODEC LAN Built-in high speed Ethernet 10/100/1000 Mbps LAN controller (Intel(R) 82574L) Support PXE Boot and WOL feature -Optional 3 Additional Intel 82574L LAN (Front Access, headphone out is removed, coexist with optical drive) USB 2.0/3.0 Integrated XHCI controller supports four super speed USB 3.0 ports Integrated 2 EHCI controllers support two USB 2.0 ports (total six USB 2.0 ports are optional) SATA Supports SATA 6Gb/s and 3Gb/s specification Support 2.5" hard disk drive & optical disk drive Support AHCI function Support SATA SSD drive Two internal SATA connectors (One Used for 2.5" SATA Hard disk and Other used for Optical drive) Hardware Monitor Processor temperature; Voltage; CPU fan speed Power Management ACPI 4.0a compliance and OS direct power management Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse Power Loss Resume feature Watch Dog Timer not available Switch and Jumper Front Panel: 4 x USB 3.0 ports (compatible with USB 2.0/1.1 devices) 4 x USB 2.0 ports (optional) 1 x MIC-in phone jack 1 x Ear Phone jack Power on/off button Reset button Power and HDD LED Back Panel: 1 x RS232 COM port (secondary COM port is optional) 1 x RJ45 gigabit fast Ethernet 1 x Line-out jack 2 x USB 2.0 / 1.1 ports 1 x 15 pin VGA port 1 x DVI-D Port (optional) 2 x PS/2 ports for keyboard and mouse 1 x 12V DC power jack Expansion Slot Mini PCI Express slot (Full size x1, half size x1) 1 x PCI Slot Max PCI Card Dimension: 4.2"(H)x9.75"(D) Optional Features -(Model SP675HSP) Optional 2nd COM port -(Model SP675HTP) Optional DVI-D (digital only) -(Model SP675HTG3P) Optional 4 Gigabit Lan in Total -Optional Wifi -Optional Bluetooth -Optional Parallel Port Mounting bracket -Optional U-Shape mounting bracket -Optional Dual VESA mounting Bracket Dimension & Weight 5.82"W x 10.0"D x 2.79"H (14.8 x 25.4 x 7.1cm) 3.6kg (Fully Equipped) Operating Temperature 0 to 40°C AC/DC Adaptor External 110~240V AC-DC adapter 2-pin 12V DC @ 5A 60W OS Support Windows XP Windows Vista Windows 7 Windows 8.1 (x86, x64) Windows 10 (x86, x64) Driver Link Resolution Support HDTV 1080p Support 16:9 Resolution Maximum Support Resolution: VGA: 2048 x 1536 32-bit at 60Hz DVI: 1920 x 1080 32-bit at 60Hz Dual Display support with Optional DVI port add-on and/or splitter cable
