SlimPro SP695PH is a mini pc with a 32 bits PCI Slot

SlimPro SP695PH is a mini pc with a 32 bits PCI Slot and a perfect integrated high performance Industrial machine in the market. Powerful 8 core 9^th generation Intel® Core™ i7 (CoffeeLake) engine running with 15% enhanced productivity than former generation, Intel® Q370 chipset, dual channel DDR4 memory at 2666MHz, up to 32GB. Advanced Intel® HD Graphics 630UHD supports DVI-D(Digital Only) and DisplayPort interfaces, up to 2 independent 4k displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

SlimPro SP695PH is a mini pc with a 32 bits PCI Slot and ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

SP695PH Mini PC

9^th Generation Intel® (Coffee Lake)

6 x USB 3.1
Display Ports
PCI Slot
Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC

Features List

Intel® Q370 core™ logic

Support Intel® Core™ 9^th Generation Core™ FCLGA1151 low power CPU (35W)

Support SODIMM DDR4 2666Mhz 16GB * 2

Intel® i219LM Gigabit LAN and 6 x USB 3.1 Gen2(External)

On-board DVI-D(Digital Only) and Display Port

Optional dual mini-PCIe slots support one full size and one half size mini card

Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)

Support SATA slim optical disk drive

Power in: DC 12V

PCI Slot
Max Card Dimension: 4.2"(H)x9.75"(D)

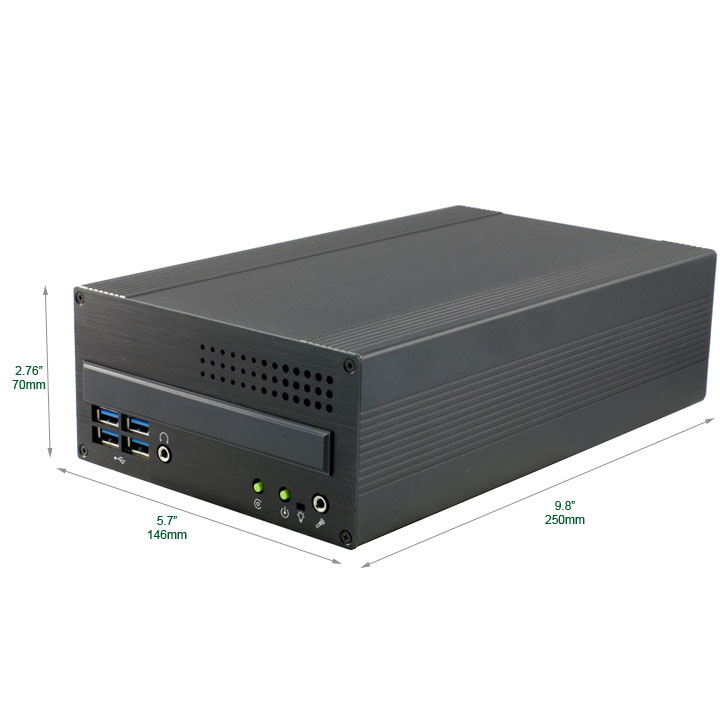

Dimension 5.7"(W) x 9.8"(D) x 2.76"(H) (W146mm x L250mm x H70mm)

Specifications

System
Processor	9th Generation/ Intel® Core™ LGA1151 low power CPU (Desktop Type CoffeeLake) 45W/35W
Chipset	Intel® Q370(Coffee Lake)
BIOS	Insyde UEFI BIOS
Memory	2 x DDR4 2400/2666MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 1 COM RS-232/RS-485, Optional 2^nd COM RS-232/RS-485, Configure under bios
USB	- 6 x USB 3.1 Gen2 (External)
Video	- DVI-I (Digital) - Display Port
PS/2	- PS/2 Mouse and Keyboard Ports
LED	Power, HDD
Expansion
Mini PCIe	Mini PCIe Socket : - 1 Full-size for PCIe/ USB - 1 Half-size for PCIe/ USB
Slots	PCI Slot
Graphics
Graphics Processor	- Intel® HD Graphics
Interface	- DVI : Up to 1920 x 1080 @ 60Hz - DisplayPort : Up to 3840 x 2160 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
Storage Device	- 2 x 2.5" SSD/ HDD Bracket (Internal) 2^nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec	Realtek® ALC898, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1	Intel® I219LM Gigabit LAN
Power
Power Input	Voltage 12V, DC-in
Power Adapter	Input universal AC 100~240V; Output DC 12V
Others
Smart Management	Wake on LAN, PXE supported
HW Monitor	CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H)	146mm x 250mm x 70mm (5.7” x 9.8” x 2.76”)
Weight	2.4 kg (5.3 lb)
Mounting	- Optional U-Shape mounting bracket - Optional Dual VESA mounting Bracket
Operating System
Windows 10	Supported
Linux	Ubuntu 19 or up
Environment
Operating Temperature	0 to 40°C with Hard Disk 0 to 60°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
