Echo PC Series Fanless Mini PC

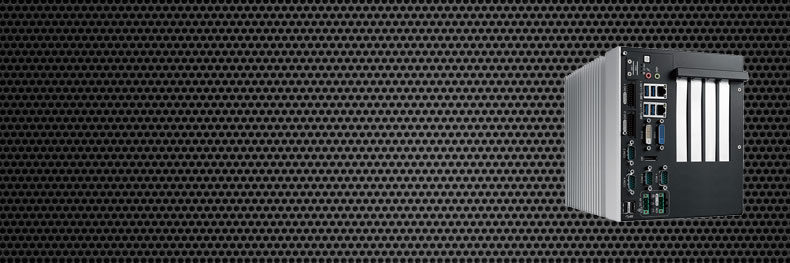

Expando Quad 2IE416 Embedded Fanless Mini PC with i7 Kaby Lake and 2 PCI, 1 PCIe x4 and 1 PCIe x16 Expansion Slots is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 7
th generation Intel® Core™ i7 (Kaby Lake) engine running with 15% enhanced productivity than former generation, Intel® C236 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 630/530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.
Expando Quad 2IE416 Embedded Fanless Mini PC with i7 Kaby Lake and 2 PCI, 1 PCIe x4 and 1 PCIe x16 Expansion Slots is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Features List
7th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake)
Fanless Mini PC Industrial Design
1 PCIe x4 Slot
1 PCIe x16 Slot
2 PCI
Max 250W Power Budget for PCI/PCIe expansions
2 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
2 Internal 2.5" SSD/ HDD
Dual NIC
DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
7 USB 3.0 (6 External, 1 Internal)
4 x COM Ports
32 Isolated DIO
Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours
6V to 36V DC-in, 80V Surge Protection
Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD
Intel® Firmware Raid
EN50155 compliant
Specifications
System
Processor
Intel® Core™ Xeon® i7/i5/i3 Processor (Kaby Lake-S/Skylake-S)
Chipset
Intel® C236
BIOS
AMI
SIO
IT8786E
Memory
2 DDR4 2133MHz SO-DIMM, up to 32GB(ECC/Non-ECC)
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 7 USB 3.0 (6 External, 1 Internal)
- 2 USB 2.0 (Internal)
Isolated DIO
32 Isolated DIO : 16 DI, 16 DO
LED
Power, HDD
SIM Card
3 SIM Card Socket (2 External, 1 Internal)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 Full-size Mini PCIe for PCIe/ USB/ Internal SIM Card/ mSATA
PCIe
1 PCIe x16 Slot
PCI
1 PCIe x4 Slot
PCI
2 PCI Slot
Graphics
Graphics Processor
- Intel® HD Graphics 630/530
Interface
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA
2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM
1 SATA II (3Gbps)
M2DOM
1 PCIe 3.0 (8GT/s)
Storage Device
- 1 CFast Socket (Internal)
- 4 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec
Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface
1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1
Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2
Intel® I210 Gigabit LAN
Power
Power Input
Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control
16 Mode(Internal)
Remote Switch
3-pin Terminal Block : On, Off, IGN
Surge Protection
Up to 80V/1ms Transient Power
Power Adapter
Input universal AC 100~240V; Output DC 24V
Others
Trusted Platform Module (TPM)
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer
Reset : 1 to 255 sec./min. per step
Smart Management
Wake on LAN, PXE supported
HW Monitor
Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H)
172mm x 250mm x 210mm (6.8" x 9.8" x 8.3")
Weight
5 kg (11 lb)
Mounting
- L shape Mounting bracket (Included)
Operating System
Windows 10
Supported
Windows 8
Supported
Windows 7
Supported
Linux
Supported
Environment
Operating Temperature
-40°C to 70°C (-13°F to 158°F) With Special Wide Temperature memory and SSD and 35W CPU
-40°C to 55°C (-13°F to 131°F) With Special Wide Temperature memory and SSD and 65W CPU
-40°C to 45°C (-13°F to 104°F) With Special Wide Temperature memory and SSD and 85W CPU
0 to 40°C with Hard Disk
0 to 55°C with SSD
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
10% to 95% Humidity, non-condensing
Relative Humidity
95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC
CE, FCC, EN 50155, EN 50121-3-2
