Expando Duo IE16 Embedded Fanless Mini PC with i7 Skylake-S and PCI Express 3.0 x16 slot and PCI slot

Expando Duo IE16 Series Embedded Fanless Mini PC with i7 Skylake-S and PCI Express 3.0 x16 slot and PCI slot is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 6^th generation Intel® Core™ i7 (Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® Q170 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Expando Duo IE16 Series Embedded Fanless Mini PC with i7 Skylake-S and PCI Express 3.0 x16 slot and PCI slot is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

Expando Duo IE16 Fanless PC

6th Generation Intel® (SkyLake-S)

1 PCI and 1 PCIe x16 Slot
DVI-I, DVI-D, and Display Ports
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC

Features List

6^th Generation Intel® Core™ i7 Mobile Processor (SkyLake-S)

Fanless Mini PC Industrial Design

1 PCI Slot

1 PCIe x16

1 Front-access CFast Socket

3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)

2 Internal 2.5" SSD/ HDD

Dual NIC

DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)

7 x USB 3.0

4 x COM Ports

16 GPIO

Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours

6V to 36V DC-in, 80V Surge Protection

Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD

Intel® Firmware Raid

EN50155 compliant

Echo 236F Industrial Fanless Mini PC with i7 SkyLake-S and Dual NIC
Specifications

System
Processor	Intel® Core™ i7-6700/ i7-6700TE/ i5-6500/ i5-6500TE/ i3-6100/ i3-6100TE Processor (Skylake-S)
Chipset	Intel® Q170
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 4 COM RS-232/ 422/ 485
USB	- 7 USB 3.0 (External) - 1 USB 2.0 (Internal)
Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
LED	Power, HDD
SIM Card	3 SIM Card Socket (2 External, 1 Internal) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 Full-size Mini PCIe for PCIe/ USB/ Internal SIM Card/ mSATA
PCIe	1 PCIe x16 Slot
PCI	1 PCI Slot
Graphics
Graphics Processor	- Intel® HD Graphics 530
Interface	- DVI-I : Up to 1920 x 1080 @ 60Hz - DVI-D: Up to 1920 x 1080 @ 60Hz - DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM	1 SATA II (3Gbps)
M2DOM	1 PCIe 3.0 (8GT/s)
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Power Adapter	Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

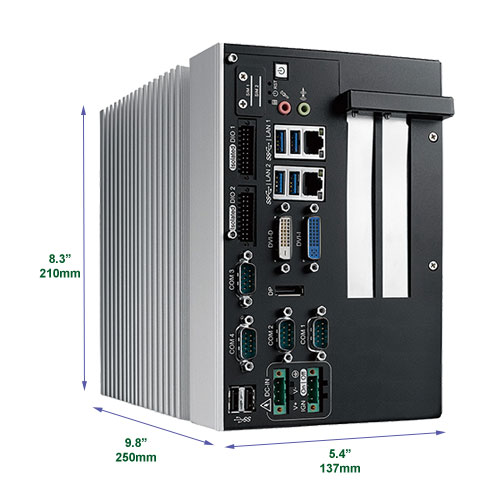

Dimensions (W x L x H)	137mm x 250mm x 210mm (5.4” x 9.8” x 8.3”)
Weight	4.3 kg (9.5 lb)
Mounting	- L shape Mounting bracket (Included)
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported
Linux	Supported
Environment
Operating Temperature	-40°C to 70°C (-13°F to 158°F) With Special Wide Temperature memory and SSD and 35W CPU -40°C to 55°C (-13°F to 131°F) With Special Wide Temperature memory and SSD and 65W CPU 0 to 40°C with Hard Disk 0 to 55°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2
