Numi 1900EF is a general purpose fanless mini pc Computer with Intel® Bay Trail processor. Powered by the quad-core Bay Trail processor, Numi 1900EF shows outstanding computing power and is even more power efficient compared to those with its predecessors. Numi 1900EF with dual Independent display, dual storage for isolating system and data, 2x Gigabit Ethernet ports, 4x COM ports and 4x USB ports.

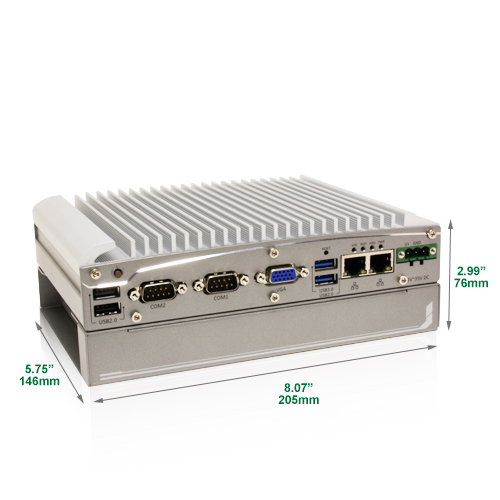

Provided with 1x PCIe expansion slot, Numi 1900EF Fanless Mini PC still features its compact design. The dimension is only 205mm (w) x 146mm (d) x 76mm (h). The expansion slot locates in Patented Expansion Cassette. The patented design well reduces the potential thermal impact from the installed add-on card, and thus make Numi 1900EF compact, expandable yet stable.
Wireless communication, such as 3G, LTE, Wi-Fi and BT, featured by internal Mini PCIe socket with USIM socket enables Numi 1900EF connecting to the networks. Moreover, Numi 1900EF Fanless optionally equips with Auxiliary I/O. The Auxiliary I/O includes 4x isolated digital inputs, 8x isolated digital outputs, 6x PWM outputs, 1x quadrature encoder input and 2x ADC. The Auxiliary I/O facilitates simple sequence control and speed control to various types of motors. Numi 1900EF is perfect for controlling your versatile equipments as well as connecting them up to the Cloud.
Numi 1900EF Fanless PC
Intel® Celeron® Processor J1900 processor
1 x VGA
x1 PCIe Slot
Small Form Factor
Low Power Consumption Fanless PC
x1 PCIe Slot Fanless Mini PC
Numi 1900EF
Features List
- Intel® Celeron® Bay Trail J1900 quad-core processor
- 1x PCI/PCIe Slot expansion with compact size with Slot cover
- Dual storage with 1x mSATA and 1x SATA
- Dual independent display via VGA and DVI connectors
- Optional Auxiliary I/O for PWM and Encoder signals
- 2x RS-232/422/485 and 2x RS-232
- 8 to 35VDC wide-range DC input
- Operating temperature from -25° to 70°C with Wide Temperature SSD and Memory
|
|
