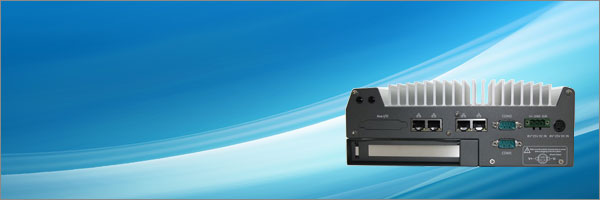

Echo Seriesx16 PCIe Slot Mini PC Numi 76EF Fanless PC

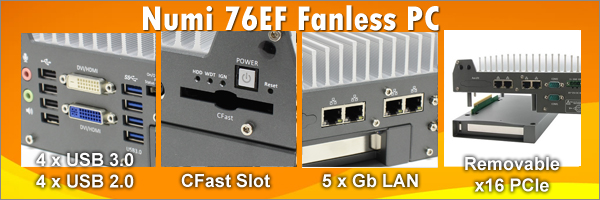

Numi 76EF i7 Fanless Mini PC with PCIe x16 Slot Numi is a Fanless Mini-PC Computer feature 3rd Generation i3/i5/i7 Prcoessor (Ivy Bridge) to deliver high-end computing ability for demanding applications. And 5 x Gb LANs, 2 x COM Ports, x16 PCI Express Slot are perfect for Machine Vision, Manufacturing, Intelligent Automation applications.    Numi 76EF Mini PC 3rd Gen i3/i5/i7 Small Mini Computer 5 x Gb LANs  2 x COM Ports   PCIe x16 Expansion Slot    Low Power Consumption PC     Core™ 3rd Gen i3/i5/i7 Small Computer Features Intel 3rd Generation i7,i5,i3 CPU (Ivy Bridge) Intel HM76 Chipset 2 x DDR3 SO-DIMM. 4 x USB 3.0, 4 x USB 2.0 5 x Gigabit LAN onboard Fanless Mini PC with Removable PCIe x16 Slot(8 Lanes) 3 Display Support: DVI-D/ DVI-I, & VGA 2 x COM Ports 1 x SATA III (6Gbps) 2.5" SSD / HDD, mSATA Wide Voltage input 8~25V Optional Wifi & Bluetooth Innovative Expansion Cassette Providing an expansion slot inside a fanless controller is easy, but the real challenge is to deal with the heat generated by add-on card. That's why we invent our patent x16 Mini PCIe expansion Cassette (8 Lanes) for Numi 76EF i7 Fanless Mini PC. By creating an isolated chamber to accommodate add-on card separately, Numi 76EF i7 Fanless Mini PC can effectively minimize the thermal interference and maintain system stability. Additional thermal solution, such as customized heat-spreader, can be applied inside x16 Mini PCIe Cassette to realize a truly rugged fanless system with diversified add-on cards. Optional Intelligent ignition power control for vehicle application A common requirement for in-vehicle applications is to correlate system on/off with vehicle ignition signal and predefined delay. Numi 76EF i7 Fanless Mini PC features a SoC-based implementation that monitors the ignition signal and reacts to turn on/off the system according to predefined on/off delay. Its built-in algorithm for further features such as ultra-low standby power, battery-low protection, system hard-off and etc. Versatile I/O functions Numi 76EF i7 Fanless Mini PC has plenty of I/O functions to meet arbitrary application requirements. Its Gigabit Ethernet ports and USB 3.0 ports provide high-bandwidth data connectivity, while its triple independent display outputs provide benefits for image-related applications. There are two internal mini-PCIe slots for expanding WIFI/3G capability. We also offer the option of isolated DIO which Change-of-State interrupt and is very useful for industrial usage.

Related Products Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Mini PC x16 Expansion Slot 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake) Read More Echo 246FM(4 x M12 PoE Port) Mini PC x16 Expansion Slot 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake) Read More Twister170E(PCI-E x16) Mini PC x16 Expansion Slot 7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake) Read More Echo 246FE(x16 PCIe Slot) Mini PC x16 Expansion Slot 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake) Read More Expando Duo IE16(x16 and PCI Slot) Mini PC x16 Expansion Slot 6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S) Read More Echo 236FE(x16 PCIe Slot) Mini PC x16 Expansion Slot 7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake) Read More Expando Duo E416(x16 and x4 Slot) Mini PC x16 Expansion Slot 6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S) Read More

Numi 76EF To Customize a Complete System.  Black     RoHS¹ Compliant ¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
