Twister 77E Fanless Mini PC with PCI Express x1 Slot

Twister 77E is a Core™ i7 i5 i3 Fanless Mini PC with PCI Express x1 Slot . With PCI-e x1 Slot, you can add x1 cards like additional 4 Gb LAN, Fiber Optic, additional USB 3.0, HD Audio for your special project. For 24/7 application computing with no moving parts for mission-critical performance, we turn to the best-in-breed ruggedized, fanless computer that echoes power performance thanks to the QM77 Core Logic chipset.

Twister 77E i7 fanless mini pc computer with 6 COM(rs232), with PCI Express x1 Slot

Features

Fanless Mini-PC with 3rd generation Intel i7/i5/i3 Core mobile CPU

Intel QM77 core logic

Max 16GB DDR3 1066/1333/1600MHz SODIMM with 64Bit OS

6Gb/s SATA 2.5" hard disk (thickness less than 15mm)

2 x SIM Sockets for 3G Modem

2 x Gigabit LAN

4 x USB 3.0

6 x COM Ports

Low noise and low power consumption

HDMI, DVI port(Digital only) and VGA Port for Triple display

Full 1080p playback

Windows 8 Compatible

Power in: DC 12V/120W/4 Pins

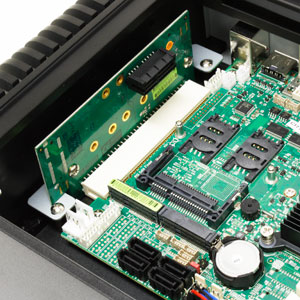

Fanless Mini PC with PCI Express x1 Slot 3G Sim Slot

2 x Mini PCI-e Slot
1 x PCI Express x1 Slot
2 x SIM Sockets for 3G Modem

Twister 77E Fanless mini PC Specifications

CPU Type	3^rd generation Intel i7/i5/i3 Core mobile CPU
MB Chipset	QM77
Video	Intel Graphic chipset various on Selected Processor Intel® Core™ i3-3120M Processor (3M Cache, 2.50 GHz) (Intel® HD Graphics 4000) Intel® Core™ i5-3320M Processor (3M Cache, 3.30 GHz) (Intel® HD Graphics 4000) Intel® Core™ i5-3360M Processor (3M Cache, 3.50 GHz) (Intel® HD Graphics 4000) Intel® Core™ i7-3520M Processor (4M Cache, 3.60 GHz) (Intel® HD Graphics 4000) Intel® Core™ i7-3630QM Processor (6M Cache, up to 3.40 GHz)(4 Cores) (Intel® HD Graphics 4000)
Memory	2 x SODIMM DDR3 1066/1333/1600MHz Maximum 16GB
SATA	SATA 6Gb/s and 3Gb/s specification 2.5" hard disk drive AHCI function SATA SSD drive
Audio	HD Audio Two channel sound
LAN	Intel 82579LM Gigabit Ethernet PHY x 1 Intel 82574L PCIe LAN NIC chipset x 1 PXE boot Wake on LAN
IO Function	6 x RS232 COM2 Jumper Switchable to RS232/422/485 1 x Mic in 1 x Line out 1 x VGA 1 x DVI-D 1 x HDMI 2 x Gb LAN 4 x USB 3.0
DIO & WDT	Hardware digital Input & Output, 8xDI / 8xDO Hardware Watch Dog Timer, 0~255 sec programmable
Expansion	1 x PCI Express x1 Slot Support card Max Size 4"(H) x 6.31"(L) 1 x PCIe Mini card for PCIe & USB interface 1 x CFast Slot 2 x SIM Sockets for 3G Modem
Optional Features	Optional Mini PCI-e TV Tuner Optional Wifi Optional Bluetooth Optional Digital I/O board
Mounting	Optional Wall Mount Bracket
Power	On board DC +12V convert to +3.3V/+12V/+5V for system - 12V support (Optional) Supports power loss resume feature External 100~240V AC-DC Adapter 4-pin 12V @ 7A 84W
Operation Temperature	0 ~ 40°C with Hard Disk 0 ~ 60°C with SSD
Operation Humidity	5~95% @ 60°C, non-condensing

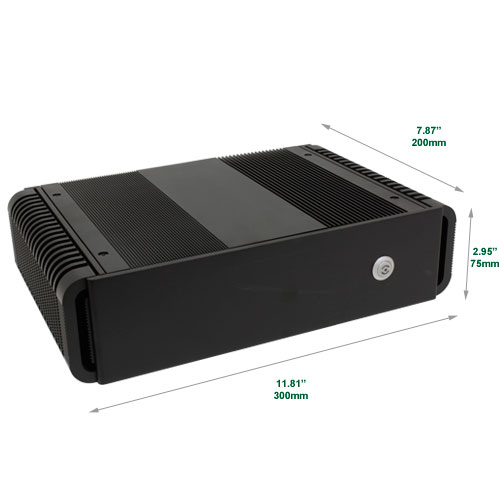

Dimension	11.81"(W) x 7.87"(D) x 2.95"(H)
Weight	6.9 lbs. Fully Loaded
OS Support	Windows XP Windows Vista Windows 7 x86, x64 Windows 8.1 x86, x64 Ubuntu
Resolution	HDTV 1080P 16:9 resolution Maximum Resolution: 2048x1536 32-bit 75 Hz
