rohs compliant Echo 77FE Fanless Mini PC with x16 PCIe Express Slot
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption



Echo SeriesWide Voltage PC Echo 77FE

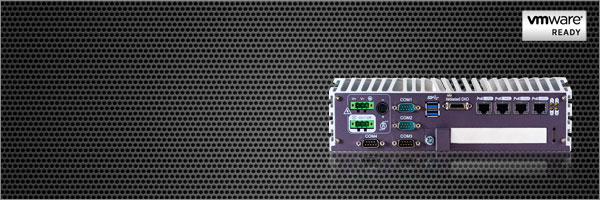

Echo 77FE Fanless Mini PC with x16 PCIe Express Slot

Echo 77FE is a Fanless Mini-PC Computer feature 3rd Generation i3/i5/i7 Prcoessor (Ivy Bridge) to deliver high-end computing ability for demanding applications. And 2 x Gb LANs, 4 x COM Ports, 4 x PoE, x16 PCI Express Slot are perfect for Machine Vision, Manufacturing, Intelligent Automation applications.
Echo 77FE Fanless Mini PC, 4 COM, 4xPoe, 4 x Lan, PCIe x16

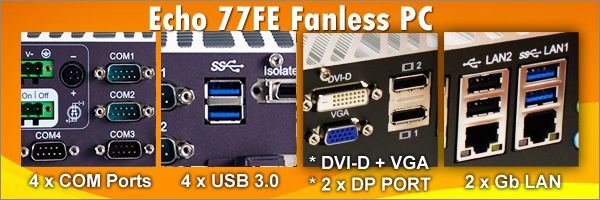

   Echo 77FE Mini PC
3rd Gen i3/i5/i7 Small Mini Computer

2 x Gb LANs
 4 x COM Ports

  PCIe x16 Expansion Slot
   Low Power Consumption PC
    Core™ 3rd Gen i3/i5/i7 Small Computer
Echo 77FE Fanless Mini PC, 4 COM, 4xPoe, 4 x Lan


Features

  • Intel® 3rd Generation i7,i5,i3 CPU (Ivy Bridge)
  • Intel® QM77 Chipset
  • 2 x DDR3 SO-DIMM.
  • 4 x USB 3.0
  • 2 x Gigabit LAN onboard
  • 4 x PoE onboard Intel® 82574L
  • SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
    (Additional Mini PCIe Modem required)
  • 16 Isolated DIO, 16 GPIO
    (See page 16,32,68 of User Manual)
  • 1 PCIe x16 Expansion Slot (Max Card Dimension: 4.2"(H) x 7.9"(D) )
  • 3 Display Support: DVI-D/ HDMI, & VGA, 2 Display Ports
  • 4 x COM Ports
  • 2 SATA III (6Gbps) 2.5" SSD / HDD, mSATA
  • Wide Voltage input 6~36V
  • Optional Wifi & Bluetooth
  • Compliant with EN50121-3-2 and Essential Sections of EN50155

Fanless Mini PC with 3G Sim Slot

vmware ready:

  • VMware vSphere® 5.5
  • View Connection Server 6.0.1 enterprises
Related Products
i7 wide extended temperature mini pc computer

Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Twister170E(PCI-E x16) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Echo 236FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo E416(x16 and x4 Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More


Pictures Gallery





Echo 77FE Mini PC computer
with x16 PCI Express Slot Specifications
System
Processor Intel® Core™ i7-3610QE/ i5-3610ME/ i3-3120ME
Chipset Intel® QM77
BIOS AMI
SIO IT8783
Memory 2 DDR3 1066/ 1333/ 1600 MHz or DDR3L 1066/ 1333 MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232/ 422/ 485
- 3 COM RS-232
USB
- 4 USB 3.0 (External)
- 4 USB 2.0 (2 External, 2 Internal by JST Connector)
Isolated DIO 16 Isolated DIO : 8 DI, 8 DO
GPIO 16 GPIO (Internal)
LED Power, HDD, PoE
SIM Card 1 SIM Card Socket (Internal)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 1 Mini PCIe for PCIe/ USB/ Internal SIM Card/ Optional mSATA
- 1 Mini PCIe for PCIe/ USB/ Optional mSATA
PCIe 1 PCIe x16 Slot
Max Card Dimension:
4.2"(H) x 7.9"(D)
Graphics
Chipset Intel® HD 4000
Display Memory Shared Memory, Up to 1.7GB
Interface
- VGA : DB-15, up to 1920 x 1200
- DVI-D : Up to 1920 x 1200
- DisplayPort 1 : Up to 2560 x 1600
- DisplayPort 2 : Up to 1920 x 1200
- LVDS : Dual channel 24-bit, up to 1920 x 1200
Note DisplayPort cannot convert to Hdmi though adapter
Storage
SATA
- 2 SATA III (6Gbps)
- 1 SATA II (3Gbps), supports horizontal type SATA DOM
mSATA 2 SATA II (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-in, 1 Line-out, 1 Mic-in
Ethernet
LAN 1 Intel® 82579LM Gigabit LAN supports iAMT 8.0
LAN 2 Intel® 82574L Gigabit LAN
PoE
LAN 3 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 4 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 5 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
LAN 6 Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel® 82574L
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM) Optional Infineon SLB9635 supports TPM 1.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

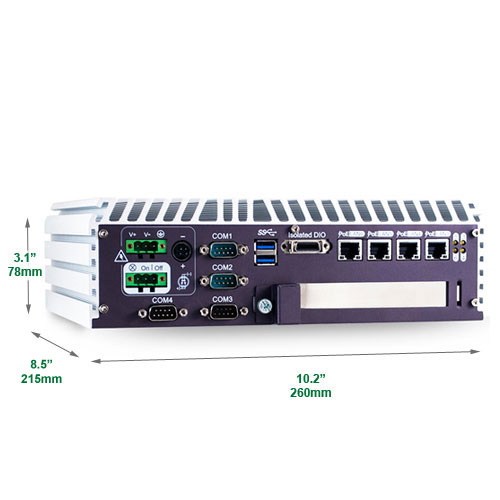

Dimensions (W x L x H) 260mm x 215mm x 79mm (10.2" x 8.5" x 3.1")
Weight 2.8 kg (6.2 lb)
Mounting
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10 Supported
Windows 8 Windows 8.1 (x86, x64) Driver
Windows 7 Windows 7 (x86, x64) Driver
User Manual User Manual Download
VMware vSphere® 5.5 Supported
View Connection Server 6.0.1 enterprises Supported
Environment
Operating Temperature -25°C to 70°C  (-13°F to 158°F) With Special Wide Temperature memory and SSD

0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
