rohs compliant Digital Engine DE7200 Haswell Mini PC ultraHD 4K Resolution
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption


Digital Engine Mini PC Series Digital Engine DE7200 Mini PC (Small Computer)

Digital Engine DE7200 Haswell Mini PC ultraHD 4K Resolution

Accelerated performance for your most demanding tasks with ultraHD (4k Resolution). The DE7200 mini small pc (Computer) allows you to run the most advanced software seamlessly and helps you create an immersive digital experience with powerful built-in visual enhancements. Integrating the latest 4th Generation (Hashwell) Intel® Core™, the DE7200 mini small pc (Computer) raises the bar on computing.
4K resolution Mini-PC

Digital Engine® DE7200 Mini-PC
High quality graphics through multiple displays for Signage applications. 2 x Hdmi Ports + 1 x DisplayPort

  • Support for Extended Desktop on all connected screens for up to three independent (Full HD) displays.
  • Flexible integration opportunities thanks to a unique small form factor
  • High performance support for Ultra HD resolution (4k*)
  • Power switch extension for remote control
  • Ultra reliable hardware with 24/7 operability
  • Energy efficient green computing

DE7200 Digital Engine Haswell Mini PC UltraHD (4K Resolution) Leads A New Lineup Of Market-Leading Commercial Technologies

The new DE7200 media player is the most powerful Digital Engine, and has been designed for customers who require the utmost in power, versatility and functionality. Backed by the 4th Generation Intel® Core™ Processor Family, the DE7200 is capable of running the most complex multimedia presentations and managing them across multiple screens. The DE7200 is quiet and efficient, while USB 3.0 and HDMI ports allow for fast high definition performance and expandable storage. The DE7200 is the first in a line of new products to come with an integrated dust filter to protect the critical circuits inside and an extended power switch for convenient management.





Giga LAN   Antenna Hole x 2



HDMI x 2
DP x 1



USB 2.0
x 2

USB 3.0
x 2

Speaker out

4U Rack for Six Digital Engines Digital Signage Whole in 1 Management System

Power Consumption in Watts
 12   39   56
idleIdle normalNormal fullPeak / Full

Pictures Gallery



Digital Engine DE7200 Haswell Mini PC ultraHD 4K Resolution Specifications


Socket: Socket G3/rPGA946
4th generation Intel® Core™ vPro™ i3, i5, i7 mobile processor TDP<47W


2 x Low Voltage SODIMM DDR3 1066/1333/1600MHz
Maximum 16GB(Depending on OS)


Intel® QM87 Chipset


Chip: Intel HD Graphics 4600
HDMI Port x2
Display Port x1

Audio Realtek ALC662 Software high definition audio CODEC

Intel® WGI217LM Gigabit LAN
Support PXE Boot and WOL feature

USB 2.0/3.0

4 x USB 2.0
(Two of them combined with eSATA)

2 x USB 3.0


SATA 6Gb/s and 3Gb/s specification
2.5" hard disk drive & optical disk drive
AHCI function
SATA SSD drive

Power Management

ACPI 4.0a compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Power Loss Resume feature
Watch Dog Timer not available

Switch and Jumper

Front Panel:
2 x USB 2.0 ports
Power on/off button
Power and HDD LED

Back Panel:
1 x RS232 COM port
1 x RJ45 Gigabit fast Ethernet
1 x Line-out jack
1 x Mic jack
2 x USB 3.0
2 x USB 2.0 / 1.1 ports
(2 ports combine with eSATA)
2 x eSATA
2 x HDMI
1 x DisplayPort
1 x Kensington Lock Hole
1 x 19V DC power jack

Expansion Slot

mSATA x 1

Optional Features

-Optional Wifi
-Optional Bluetooth

Mounting bracket

L-Shape Mounting included

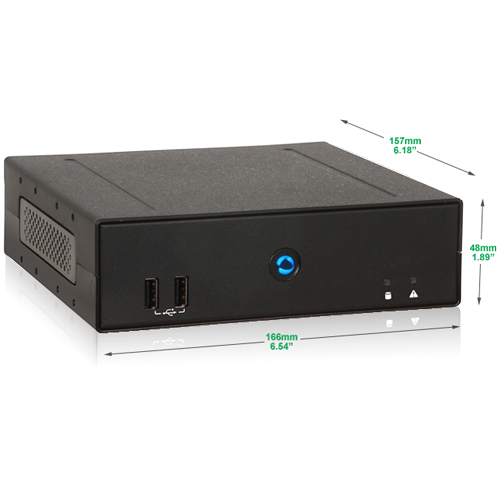

Dimension & Weight

Metric : 166(W) x 48(H) x 157(D)mm
inch : 6.54(W) x 1.89(H) x 6.18(D)inch
N.W. : 1.12 kgs / 2.46 lbs
G.W. : 2.0 kgs / 4.4 lbs

Operating Temperature

0 to 40°C

AC/DC Adaptor

External 110~240V AC-DC adapter 2-pin 19V DC @ 4.74A 90W

OS Support

Windows 7
Windows 8.1 (x86, x64)


HDTV 1080p
16:9 Resolution
2 x HDMI for multiple screen application
(Digital Signage Project)
