| Processor |
Intel 4th Gen i7,i5,i3 Socket LGA 1150 (Formerly Haswell) |
| Bios |
AMI: American Megatrends, Inc
UEFI supported.
|
| Chipset |
Intel B85 Chipset |
| System Memory |
2 x DDR3 SO-DIMM up to 16GB, Support Dual Channel |
| Audio |
Realtek ALC662 6 Channel HD Audio |
| Storage |
Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive |
| LAN |
PCI-E Gigabit Ethernet (Intel i217LM)
Support PXE Boot
Support Wake on LAN
|

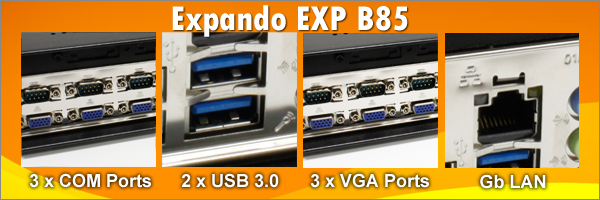

| Back I/O |
2 x USB 3.0
2 x USB 2.0
3 x VGA
3 x COM Port
(**COM 1 RS232/422/485 Setting under bios)
1 x RJ45 LAN (10/100/1000)
1 x Line Out
1 x Line In
1 x Mic in
|
| Onboard I/O |
x16 PCI Express Slot
1 x Shared mSATA/mini-PCI Express slot (Full-size)
2 x SATA3 Connectors
3 x Serial Headers
1 x LVDS header/inverter
1 x 9-pin Audio header
1 x 2-pin SPDIF out header
1 x GPIO header
1 x Front Panel header
3 x Fan headers |
| Expansion Slot |
x16 PCI Express Slot
Max PCI Card Dimension:
4.2"(H)x9"(D) |
| Optional Features |
Optional Mini PCI Express TV tuner
Optional Wifi
Optional Bluetooth
|

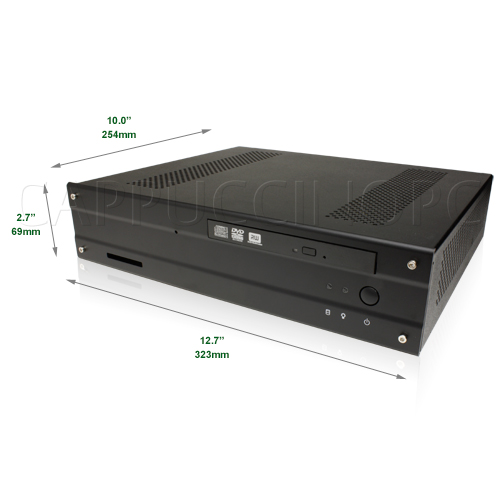

| Dimension & Weight |
12.7" (W) x 10.0" (D) x 2.7" (H)
7.75 lb. Fully Loaded
|
| Power Management |
Watch Dog Timer Available |
| Operating & Storage Temperature |
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
|
| Power Supply |
External 110~240V AC-DC Adapter 2-pin 12V DC@10A 120W
Power Loss Resume feature available
|
| Mounting |
-Optional Dual VESA mounting bracket
-Optional L Shape Mounting
|
| OS Support |
Ubuntu Linux
Windows 8.1 (x86, x64)
Windows 7 (x86, x64)
Windows XP
|
| Certificate |
CE, FCC, RoHS |
| Resolution |
Support HDTV 1080p
Support 16:9 resolution
Maximum Resolution 2048 x 1536 32-bit 60Hz
Requires Intel Core processor with Intel HD 4000/5000 Graphics
|
