| Processor |
Intel Atom D2550 Dual Cores™ CPU (Embedded) |
| Memory |
Support 2 x SODIMM DDR3 800/1066MHz
Maximum 4GB(Based on OS support) |
| Bios |
AMI BIOS |
| Chipset |
Intel ICH10R |
| Video |
nVidia (610M)
N13M-GE1-B |
| Audio |
Realtek ALC887 Software high definition audio CODEC |
| LAN |
Realtek GbE LAN controller RTL8111F (Gigabit LAN)
Support PXE Boot and WOL feature
|
| USB 2.0/3.0 |
6 x USB 2.0
|
| SATA |
Supports SATA 3Gb/s specification
Support 2.5" hard disk drive
Support AHCI function
Support SATA SSD drive
|
| Power Management |
ACPI 4.0a compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Power Loss Resume feature
Watch Dog Timer not available
|
| Switch and Jumper |
Front Panel:
2 x USB 2.0 ports
Power on/off button
Power and HDD LED
Back Panel:
2 x RS232 COM port
1 x RJ45 Gigabit fast Ethernet
1 x Line-out jack
1 x Mic jack
1 x Optical S/PDIF-OUT
4 x USB 2.0 / 1.1 ports
1 x DVI-I Port(Digital and Analog
1 x Display Port
1 x HDMI Port
1 x 12V DC power jack
|
| Expansion Slot |
Mini PCI Express slot (Full size x1)
|
| Optional Features |
-Optional Wifi
-Optional Bluetooth
|
| Mounting bracket |
L-Shape Mounting included |
| Dimension & Weight |

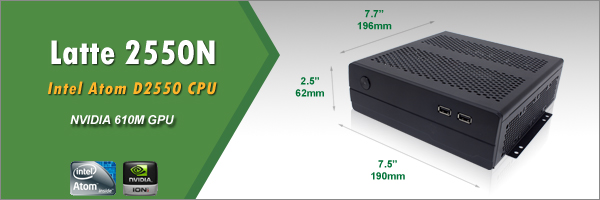

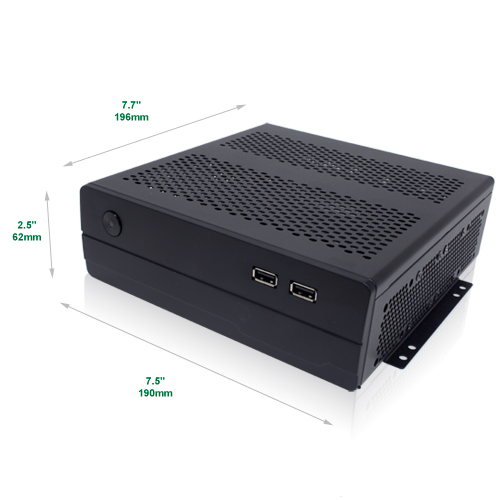

7.5"W x 7.7"D x 2.5"H
5.2 lb. Fully Loaded
|
| Operating Temperature |
0 to 40°C |
| AC/DC Adaptor |
External 110~240V AC-DC adapter 2-pin 12V DC @ 5A 60W
|
| OS Support |
Windows XP
Windows Vista
Windows 7
Windows 8 (x86, x64)
|
| Resolution |
Support HDTV 1080p
Support 16:9 Resolution
Maximum Support Resolution:
VGA: 2048 x 1536 32-bit at 60Hz
DVI: 1920 x 1080 32-bit at 60Hz
Dual Display support with Optional DVI port add-on and/or splitter cable |
