Specifications |
Processor |
INTEL Atom D2550 CPU (2 Cores, 4 Threads) |
Chipset |
Intel NM10 Express Chipset |
System Memory |
2 x DDR3 800/1066 SODIMM Slot (up to 4GB) |
Audio |
Realtek ALC662 6 Channel HD Audio |
Storage |
Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive |
LAN |
2 x Realtek RTL8111EVL PCI-E Gigabit Ethernet
Optional 2nd Gigabit LAN (Realtek 8110SC)
Optional 3 Extra Gigabit LAN (Realtek 8110SC)
Support PXE Boot
Support Wake on LAN
|
Graphics |
Intel GMA3600 Integrated Graphics |
Back I/O |
1 x PS2 Mouse/Keyboard port(Jumper switch)
1 x Serial
1 x VGA
4 x USB 2.0
2 x RJ45 LAN (10/100/1000)
1 x HDMI
1 x Line Out
1 x Line In
1 x Mic in
|
Onboard I/O |
1 x PCI Slot(not applicable)
1 x mini PCI Express x1 Slot
1 x Serial header (RS232/RS422/RS485)
2 x SATA2 Connectors
2 x SATA3 Connectors
4 x USB Pin Headers for up to 4 USB 2.0 ports (Two are used for front USB ports)
1 x 24-bit Dual Channel LVDS header/inverter
1 x 9-pin Audio header
1 x 2-pin SPDIF out header
1 x 4-pin CD audio-in header
1 x GPIO header
1 x LPC header
1 x Front Panel header
3 x Fan headers |
Optional Features |
Optional 2nd COM
Optional 3 Extra COM(4 in total)
Optional 4 Extra COM(5 in total)
RS485 Port Adjustable via COM 1
Optional DVI-D port (Coexist with VGA)
Optional Mini PCI Express TV tuner
Optional Wide DC input 12-32V
Optional Wifi
Optional Bluetooth
|
Dimension & Weight |

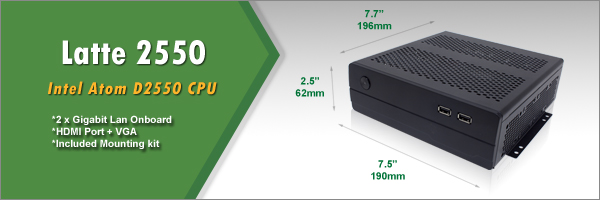

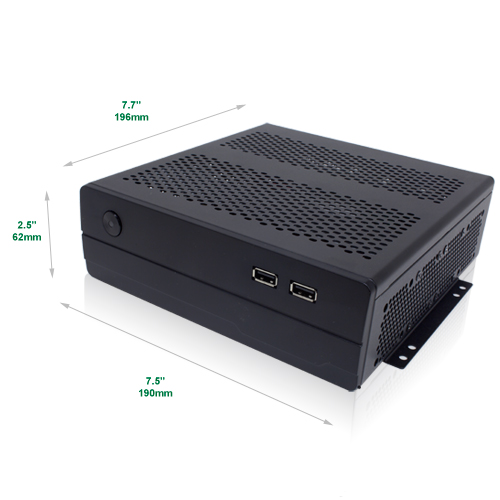

7.5"W x 7.7"D x 2.5"H
5.2 lb. Fully Loaded
|
Power Management |
Watch Dog Timer Available |
Operating & Storage Temperature |
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
|
Power Supply |
External 110~240V AC-DC Adapter 2-pin 12V DC@5A 60W
Power Loss Resume feature available
|
Mounting |
-Optional Dual VESA mounting bracket
-L Shape Mounting Included
|
OS Support |
Windows 7 32BIT
|
Certificate |
CE, FCC, RoHS |
Resolution |
Support 16:9 resolution, but not HDTV 1080p
Maximum Resolution 2048 x 1536 32-bit 60Hz |
