rohs compliant SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC
SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC
Features | Specifications | Picture Gallery | Power Consumption | Buy Now



SlimPro SeriesMini PC SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC

SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC

SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC is a perfect integrated high performance Industrial machine in the market. Powerful 4th generation Intel® Core™ i3 (Haswell) engine running with 15% enhanced productivity than former generation, Intel® 8 series chipset, dual channel DDR3 memory at 1600MHz, up to 16GB. Advanced Intel® HD Graphics supports DVI-D and DisplayPort interfaces, up to 2 independent 1080P displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Compact PC with Multi-LAN_SlimPro SP385G4
  SP385P-G4 Mini PC
4th Generation Intel® (Haswell)

4 x Gigabit LANs
Display Ports
Small Form Factor Industrial
Low Power Consumption Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • Intel 8 series core logic
  • Onboard Intel 4th generation Haswell-ULT processor (i3 or Celeron)
  • Support SODIMM DDR3 1333/1600Mhz 8GB * 2
  • On-board 4 x Gigabit LANs and 2 x USB 3.0 ports
  • On-board DVI-D and Display Port
  • support one full size mini-PCIe slots
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)
  • Power in: DC 12V/60W

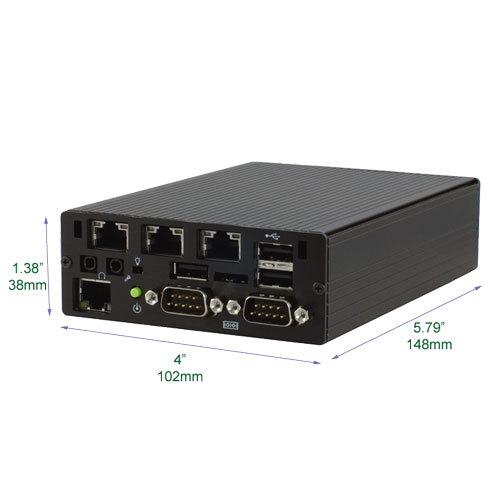

  • Dimension Wide 4" x Depth 5.79" x High 1.38" (W102mm x D148mm x H38mm)
Related Products
i7 wide extended temperature mini pc computer

Echo 236F-G4(4 LAN) Embedded Gigabit LAN Mini PC
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Numi 170F(Multi Add-on) Embedded Gigabit LAN Mini PC
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

SP385P-G4(4 x Gb LAN) Embedded Gigabit LAN Mini PC
4th Gen Intel® (Haswell)

Read More
i7 wide extended temperature mini pc computer

SP385PF-G4(4 x Gb LAN) Embedded Gigabit LAN Mini PC
4th Gen Intel® (Haswell)Celeron

Read More
i7 wide extended temperature mini pc computer

SP675EP(PCI-E 1x Slot) Embedded Gigabit LAN Mini PC
3rd and 2nd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More
i7 wide extended temperature mini pc computer

SP675EPR(Raid) Embedded Gigabit LAN Mini PC
3rd and 2nd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More
i7 wide extended temperature mini pc computer

SP675FP(Multi Add-on) Embedded Gigabit LAN Mini PC
Intel Celeron Processor

Read More
i7 wide extended temperature mini pc computer

SP675HP(PCI Slot) Embedded Gigabit LAN Mini PC
3rd and 2nd Gen Intel® Core™ i3/i5/i7 Processors (IvyBridge) Mobile

Read More

Power Consumption in Watts
 13   19   25
idleIdle normalNormal fullPeak / Full

spacer
SlimPRO SP385P-G4
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery
SlimPro SP385P-G4 Compact PC with Multi LAN Four 4 Intel Gigabit LAN PC SlimPro SP385P-G4 Compact P
SlimPro SP385P-G4 Compact PC with Multi LAN Four 4 Intel Gigabit LAN PC





SlimPro SP385P-G4 Compact PC with Multi LAN - (Four) 4 x Intel Gigabit LAN PC
Specifications
System
Processor Onboard Intel 4th generation Celeron 2980U 1.6GHz or i3-4010U 1.7GHz processor, 8 series chipset integrated in processor
Chipset Intel® 8 Series
BIOS Insyde UEFI BIOS
Memory 2 x DDR3 1600MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 2 x COM RS-232
USB
- 2 x USB 3.0 (External), 3 x USB 2.0
Video
- DVI-I (Digital and Analog)
- Display Port
PS/2 - PS/2 Mouse and Keyboard Ports
LED Power, HDD
Expansion
Mini PCIe
Mini PCIe Socket :
- 1 Full-size for PCIe/ USB
Graphics
Graphics Processor - Intel® HD Graphics
Interface
- DVI to VGA : Up to 1920 x 1200 @ 60Hz
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA
2 SATA III (6Gbps)
Storage Device
- 1 x 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1 Intel® I218LM Gigabit LAN
LAN 2,3,4 Intel® I210AT Gigabit LAN
Power
Power Input Voltage 12V, DC-in
Power Adapter Input universal AC 100~240V; Output DC 12V/60W
Others
Smart Management Wake on LAN, PXE supported
HW Monitor CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H) Wide 4" x Depth 5.79" x High 1.38" (W102mm x D148mm x H38mm)
Weight 2.4 kg (5.3 lb)
Mounting
- Optional Dual VESA mounting Bracket
- Optional Sliding Style Mounting Bracket
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Ubuntu 14.04
Environment
Operating Temperature
0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
