rohs compliant SlimPRO SP675EP Mini PC
Fully functional and upgradable mini pc system

Features | Specifications | Picture Gallery | Power Consumption | Contact Sales

SlimPRO SP675 Series are being replace with a newer version SP695.
Pleace click here for SP695PE (PCIe Slot)


  • Support the 3rd and 2nd generation Intel i7/i5/i3 Core mobile CPU
  • Intel HM76 core logic
  • Support Max 16GB DDR3 1066/1333/1600MHz SODIMM with 64Bit OS
  • Support 6Gb/s SATA 2.5" hard disk (thickness less than 15mm)
  • On-board Gigabit LAN and USB 3.0/2.0
  • Low noise and low power consumption
  • PCI-Express x1 Slot or Optional PCI-Express x4 Slot
    Max Card Dimension: 4.2"(H)x9.75"(D)
  • Optional 2nd COM Port
  • Optional 1 extra Gigabit LAN coexist with Optical Drive
  • Optional 3 extra Gigabit LAN coexist with Optical Drive
  • 2 x Mini PCI Express slot (Cannot combine with PCI-E x4 Slot)
  • Optional DVI port add-on for dual display
  • Optional Parallel Port
  • Support Full 1080p playback
  • Windows 8 Compatible
  • Power in: DC 12V/60W

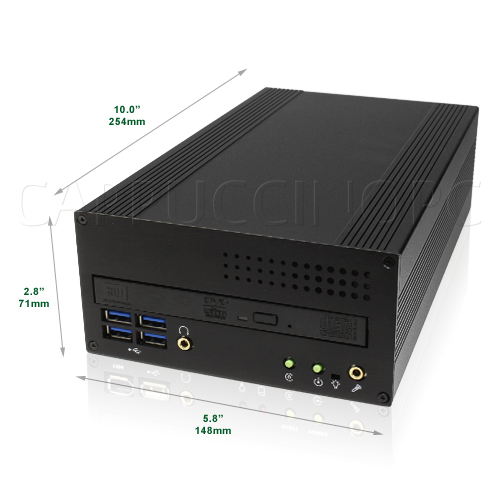

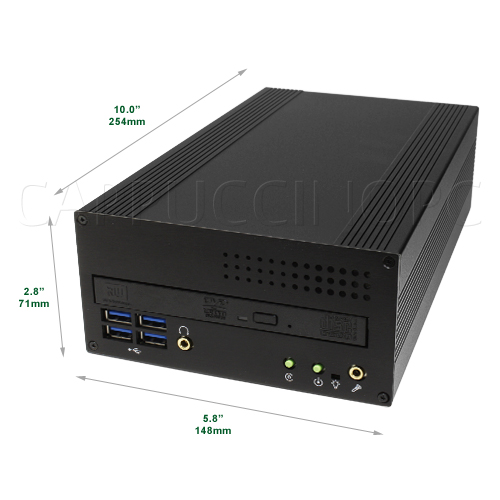

  • 5.8"(W) x 9.8"(D) x 2.75"(H) (14.6 x 25 x 7 cm)
Mini PC Computer with PCI-e 4X Slot
 PCI-Express x1 Slot (Default)
 2 x Mini PCI-e slots
Mini PC Computer with PCI-e 4X Slot
 Optional PCI-Express x4 Slot
 Cannot co-exist with Mini PCI-e

Power Consumption in Watts
 16   30   51
idleIdle normalNormal fullPeak / Full

Pictures Gallery



Processor Intel FCPGA988B socket
Support the 3rd and 2nd generation Intel i7/i5/i3 Core™ mobile CPU
Memory Support 2 x SODIMM DDR3 1066/1333/1600MHz
Maximum 16GB
Bios Insyde UEFI BIOS
CPU temperature, cooling fan speed, system voltage
(ESC key to Enter Bios Menu)
Core Logic Intel HM76(Panther Point)
Video Intel Graphic chipset various on Selected Processor
Ivy Bridge Processors(3nd Generation):
Intel® Core™ i3-3120M Processor (3M Cache, 2.50 GHz)(Intel® HD Graphics 4000)
Intel® Core™ i5-3320M Processor (3M Cache, 3.30 GHz)(Intel® HD Graphics 4000)
Intel® Core™ i5-3360M Processor (3M Cache, 3.50 GHz)(Intel® HD Graphics 4000)
Intel® Core™ i7-3520M Processor (4M Cache, 3.60 GHz)(Intel® HD Graphics 4000)
Intel® Core™ i7-3630QM Processor (6M Cache, up to 3.40 GHz)(4 Cores)
(Intel® HD Graphics 4000)

Sandy Bridge Processors(2nd Generation):
Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)(Intel® HD Graphics 2000)
Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)(Intel® HD Graphics 3000)
Intel® Core™ i5-2520M Processor (3M Cache, 2.50 GHz)(Intel® HD Graphics 3000)
Intel® Core™ i5-2540M Processor (3M Cache, 2.60 GHz)(Intel® HD Graphics 3000)
Intel® Core™ i7-2670QM Processor (6M Cache, up to 3.10 GHz)(4 Cores)
(Intel® HD Graphics 3000)
Audio Realtek ALC888 Software high definition audio CODEC

Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
(Intel(R) 82574L)
Support PXE Boot and WOL feature

-Optional 1 Additional Intel 82574L LAN (Front Access and coexist with optical drive)(Total 2 x Gb LAN)
-Optional 3 Additional Intel 82574L LAN (Front Access, headphone out is removed, coexist with optical drive)
(Total 4 x Gb LAN)

USB 2.0/3.0 Integrated XHCI controller supports four super speed USB 3.0 ports Integrated 2 EHCI controllers support two USB 2.0 ports (total six USB 2.0 ports are optional)
SATA Supports SATA 6Gb/s and 3Gb/s specification
Support 2.5" hard disk drive & optical disk drive
Support AHCI function
Support SATA SSD drive
Two internal SATA connectors
(One Used for 2.5" SATA Hard disk and Other used for Optical drive)
Hardware Monitor

Processor temperature; Voltage; CPU fan speed

Power Management ACPI 4.0a compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Power Loss Resume feature
Watch Dog Timer not available
Switch and Jumper Front Panel:
4 x USB 3.0 ports (compatible with USB 2.0/1.1 devices)
4 x USB 2.0 ports (optional)
1 x MIC-in phone jack
1 x Ear Phone jack
Power on/off button
Reset button
Power and HDD LED

Back Panel:
1 x RS232 COM port (secondary COM port is optional)
1 x RJ45 gigabit fast Ethernet
1 x Line-out jack
2 x USB 2.0 / 1.1 ports
1 x 15 pin VGA port
1 x DVI-D Port (optional)
2 x PS/2 ports for keyboard and mouse
1 x 12V DC power jack
Expansion Slot Mini PCI Express slot (Full size x 1, half size x 1)
PCI-Express x1 Slot

Optional PCI-Express x4 Slot
(Cannot co-exist with Mini PCI Express Slot)
Optional Features

-(Model SP675ESP) Optional 2nd COM port
-(Model SP675EUP) Optional 4 Extra USB 2.0
-(Model SP675ETP) Optional DVI-D (digital only)
-(Model SP675ETGP) Optional 2 Gigabit Lan in Total
-(Model SP675ETG3P) Optional 4 Gigabit Lan in Total
-(Model SP675ETCP) Optional Car PC Version Support Wide Voltage DC input 10~26V and build-in Shutdown/Startup Controller by Ignition wire
-Optional PCIe-4X
-Optional Wifi
-Optional Bluetooth
-Optional Parallel Port

Mounting bracket -Optional U-Shape mounting bracket
-Optional Dual VESA mounting Bracket
-OPtional Sliding Style Mounting Bracket
Dimension & Weight 5.82"W x 10.0"D x 2.79"H (14.8 x 25.4 x 7.1cm)
3.6kg (Fully Equipped)
Operating Temperature 0 to 40°C
AC/DC Adaptor External 110~240V AC-DC adapter 2-pin 12V DC @ 7A 84W
OS Support Windows XP
Windows Vista
Windows 7
Windows 8.1 (x86, x64)
Windows 10 (x86, x64)
Driver Link
Resolution Support HDTV 1080p
Support 16:9 Resolution
Maximum Support Resolution:
VGA: 2048 x 1536 32-bit at 60Hz
DVI: 1920 x 1080 32-bit at 60Hz
Dual Display support with Optional DVI port add-on and/or splitter cable
