rohs compliant Mini PC with PCI Express x4 slot and 2 displays - SlimPro SP695PE
Mini PC with PCI Express x4 slot and 2 displays
Features | Specifications | Picture Gallery | Power Consumption | Buy Now



SlimPro SeriesMini PC Mini PC with PCI Express x4 slot and 2 displays - SlimPro SP695PE
Mini PC with PCI Express x4 slot and 2 displays - SlimPro SP695PE is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
SLIMPRO SP695PE with PCIe x4 and dual Displays
  SP695PE Mini PC
4th Generation Intel® (Haswell)

6 x USB 3.1
Display Ports
PCI Express x1 or x4
Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • Intel Q370 core logic
  • Support the 8th & 9th generation Intel FCLGA1151 low power CPU
  • Support SODIMM DDR4 2666/2400Mhz 32GB * 2
  • On-board gigabit LAN and Six USB 3.1 ports
  • PCI-Express x1 Slot or Optional PCI-Express x4 Slot
    Max Card Dimension: 4.2"(H)x9.75"(D)
  • On-board DVI-I and Display Port
  • Optional dual mini-PCIe slots support one full size and one half size mini card
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)
  • Support SATA slim optical disk drive
  • Power in: DC 12V/84W

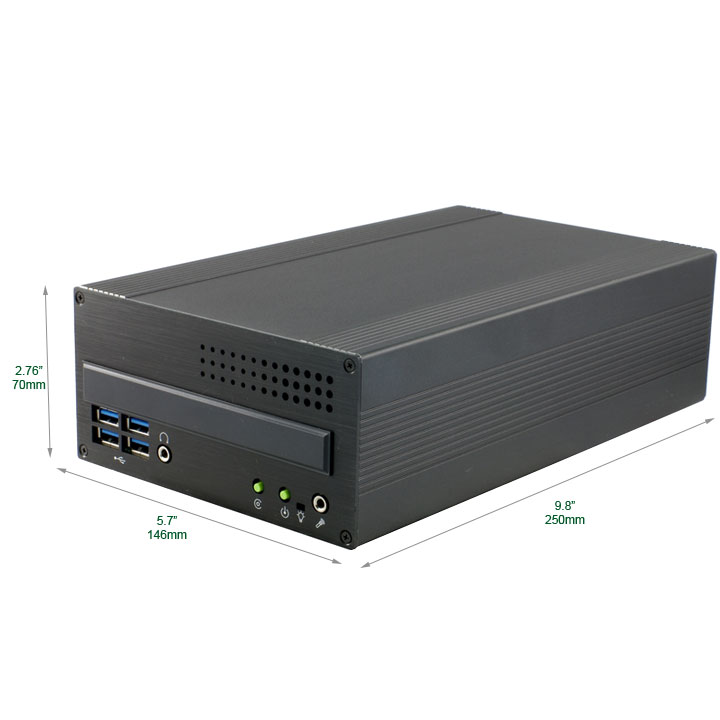

  • Dimension 5.7"(W) x 9.8"(D) x 2.76"(H) (W146mm x L250mm x H70mm)

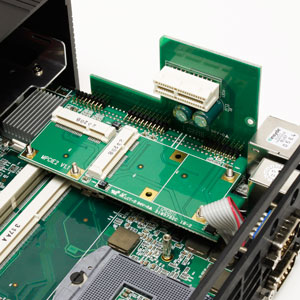

Mini PC Computer with PCI-e 4X Slot
 PCI-Express x1 Slot (Default)
 2 x Mini PCI-e slots

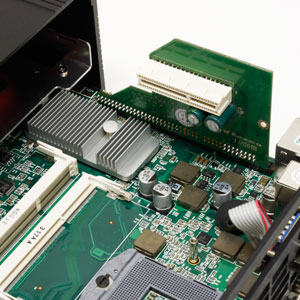

Mini PC Computer with PCI-e 4X Slot
 Optional PCI-Express x4 Slot
 Cannot co-exist with Mini PCI-e
Related Products
i7 wide extended temperature mini pc computer

Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Twister170E(PCI-E x16) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Echo 236FE(x16 PCIe Slot) Mini PC
x16 PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo E416(x16 and x4 Slot) Mini PC
x16 PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More


spacer
SlimPRO SP695PE
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Mini PC with PCI Express x4 slot and 2 diaplays - SlimPro SP685EP
Specifications
System
Processor Intel FCLGA1151 Socket
Tested 8th & 9th generation CPU: i7-9700TE, i7-8700T, i5-8500T, i3-8100T, Pentium G5400T and Celeron G4900T
Chipset Intel® Q370 Core Logic
BIOS Insyde UEFI BIOS CPU temperature, cooling fan speed, system voltage
Memory Support dual channel(two SODIMM) DDR4 2666/2400 Mhz non-ECC SODIMM
Total memory size up to 64GB
I/O Interface
Serial
- 1 COM RS-232, Optional 2nd COM
USB
- 6 x USB 3.1 (External)
Integrated XHCI and EHCI controllers support six super speed USB 3.1 Gen2 ports and compatible to USB2.0
Video
- Integrated Intel UHD graphics 630 or 610 in processor
PS/2 - PS/2 Mouse and Keyboard Ports
LED Power, HDD
Expansion
Mini PCIe
Mini PCIe Socket :
- 1 Full-size for PCIe/ USB
- 1 Half-size for PCIe/ USB
Slots
PCI-Express x1 Slot

Optional PCI-Express x4 Slot
(Cannot co-exist with Mini PCI Express Slot and x1 Slot)
Graphics
Interface
- DVI to VGA : Up to 1920 x 1200 @ 60Hz
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA
- Supports SATA 6Gb/s and 3Gb/s specification
- Supports 2.5" SATA hard disk drive and solid state drive
- Supports SATA Slim DVD-ROM Combo, DVD-RW drive
Storage Device
- 2 x 2.5" SSD/ HDD Bracket (Internal)
2nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec Realtek ALC892 high definition audio CODEC
Audio Interface 1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1 Built-in Intel i219LM 100/1000Mbps Ethernet PHY
Support WOL function
Power
Power Input Voltage 12V, DC-in
Power Adapter Input universal AC 100~240V; Output DC 12V/84W
Others
Smart Management Wake on LAN, PXE supported
HW Monitor CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H) 146mm x 250mm x 70mm (5.7” x 9.8” x 2.76”)
Weight 2.4 kg (5.3 lb)
Mounting
- Optional U-Shape mounting bracket
- Optional Dual VESA mounting Bracket
Operating System
Windows 10 Supported
Linux Ubuntu 14.04
Environment
Operating Temperature
0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
