| Processor |
Intel FCPGA988B socket
The 3rd and 2nd generation Intel i7/i5/i3 Core™ mobile CPU |
| Memory |
Support 2 x SODIMM DDR3 1066/1333/1600MHz
Maximum 16GB |
| Bios |
Insyde UEFI BIOS
CPU temperature, cooling fan speed, system voltage
(ESC key to Enter Bios Menu) |
| Core Logic |
Intel HM76(Panther Point) |
| Video |
Intel Graphic chipset various on Selected Processor
Ivy Bridge Processors(3nd Generation):
Intel® Core™ i3-3120M Processor (3M Cache, 2.50 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i5-3320M Processor (3M Cache, 3.30 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i5-3360M Processor (3M Cache, 3.50 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i7-3520M Processor (4M Cache, 3.60 GHz)
(Intel® HD Graphics 4000)
Intel® Core™ i7-3630QM Processor (6M Cache, up to 3.40 GHz)(4 Cores)
(Intel® HD Graphics 4000)
Sandy Bridge Processors(2nd Generation):
Intel® Pentium® Processor B950 (2M Cache, 2.10 GHz)
(Intel® HD Graphics 2000)
Intel® Core™ i3-2350M Processor (3M Cache, 2.30 GHz)
(Intel® HD Graphics 3000)
Intel® Core™ i5-2520M Processor (3M Cache, 2.50 GHz)
(Intel® HD Graphics 3000)
Intel® Core™ i5-2540M Processor (3M Cache, 2.60 GHz)
(Intel® HD Graphics 3000)
Intel® Core™ i7-2670QM Processor (6M Cache, up to 3.10 GHz)(4 Cores)
(Intel® HD Graphics 3000)
|
| Audio |
Realtek ALC888 Software high definition audio CODEC |
| LAN |
Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
(Intel(R) 82574L)
Support PXE Boot and WOL feature
-Optional 1 Additional Intel 82574L LAN (Front Access and coexist with optical drive)(Total 2 x Gb LAN)
-Optional 3 Additional Intel 82574L LAN (Front Access, headphone out is removed, coexist with optical drive)
(Total 4 x Gb LAN)
|
| USB 2.0/3.0 |
Integrated XHCI controller supports four super speed USB 3.0 ports
Integrated 2 EHCI controllers support two USB 2.0 ports (total six USB 2.0 ports are optional)
|
| SATA |
Supports SATA 6Gb/s and 3Gb/s specification
Support 2.5" hard disk drive & optical disk drive
Support AHCI function
Support SATA SSD drive
Two internal SATA connectors
(One Used for 2.5" SATA Hard disk and Other used for Optical drive)
|
| Hardware Monitor |
Processor temperature; Voltage; CPU fan speed |
| Power Management |
ACPI 4.0a compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Power Loss Resume feature
Watch Dog Timer not available
|
| Switch and Jumper |
Front Panel:
4 x USB 3.0 ports (compatible with USB 2.0/1.1 devices)
4 x USB 2.0 ports (optional)
1 x MIC-in phone jack
1 x Ear Phone jack
Power on/off button
Reset button
Power and HDD LED
Back Panel:
1 x RS232 COM port (secondary COM port is optional)
1 x RJ45 gigabit fast Ethernet
1 x Line-out jack
2 x USB 2.0 / 1.1 ports
1 x 15 pin VGA port
1 x DVI-D Port (optional)
2 x PS/2 ports for keyboard and mouse
1 x 12V DC power jack
|
| Expansion Slot |
PCI-Express x1 Slot (Not Available, Used by Raid Card)
|

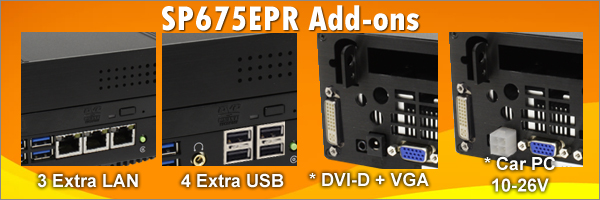

| Optional Features |
-(Model SP675ESPR) Optional 2nd COM port
-(Model SP675EUPR) Optional 4 Extra USB 2.0
-(Model SP675ETPR) Optional DVI-D (digital only)
-(Model SP675ETGPR) Optional 2 Gigabit Lan in Total
-(Model SP675ETG3PR) Optional 4 Gigabit Lan in Total
-(Model SP675ETCPR) Optional Car PC Version Support Wide Voltage DC input 10~26V and build-in Shutdown/Startup Controller by Ignition wire
-Optional Wifi
-Optional Bluetooth
-Optional Parallel Port
|
| Mounting bracket |
-Optional U-Shape mounting bracket
-Optional Dual VESA mounting Bracket
-OPtional Sliding Style Mounting Bracket
|

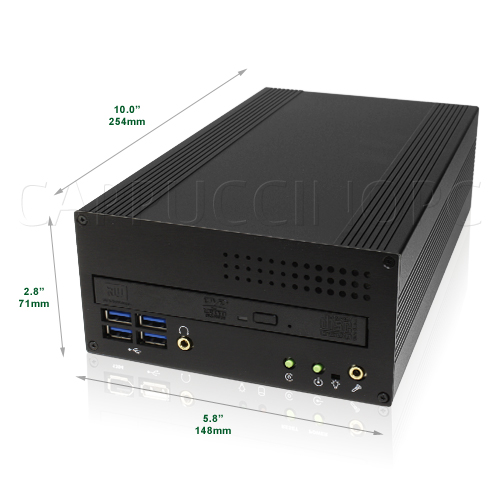

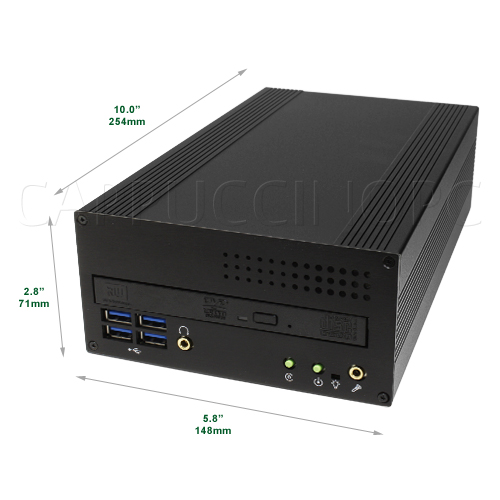

| Dimension & Weight |
5.82"W x 10.0"D x 2.79"H (14.8 x 25.4 x 7.1cm)
3.6kg (Fully Equipped)
|
| Operating Temperature |
0 to 40°C
|
| AC/DC Adaptor |
External 110~240V AC-DC adapter 2-pin 12V DC @ 5A 60W
|
| OS Support |
Windows XP
Windows Vista
Windows 7
Windows 8.1 (x86, x64)
Windows 10 (x86, x64)
Driver Link
|
| Resolution |
Support HDTV 1080p
Support 16:9 Resolution
Maximum Support Resolution:
VGA: 2048 x 1536 32-bit at 60Hz
DVI: 1920 x 1080 32-bit at 60Hz
|
