Numi 170F industrial Fanless Mini PC with optional 8/16 CH DIO (Digital Input Ouput)

Numi 170F industrial Fanless Mini PC with optional 8/16 CH DIO (Digital Input Ouput)

Numi 170F industrial Fanless Mini PC with optional 8/16 CH DIO (Digital Input Ouput) is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 6^th generation Intel® Core™ i7 (Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® Q170 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Numi 170F industrial Fanless Mini PC with optional 8/16 CH DIO (Digital Input Ouput) is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

Numi 170F Fanless PC

6^th Generation Intel® (SkyLake-S)

Optional DIO (Digital Input Output
DVI-I, VGA, and 2 x Display Ports
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC

Features List

6^th Generation Intel® Core™ I Processor (SkyLake-S)

Fanless Mini PC Industrial Design

1 hot-swappable external 2.5" SSD/ HDD

2 x Gb LAN

DVI-I, VGA, 2 x DisplayPort Interface

4 x USB 3.0

4 x COM Ports

Optional -25°C to 70°C (Call our sales to order)

Optional module with 4x RS-232/422/485 ports and 4x RS-232 ports

Optional module with 4x RS-232/422/485 ports and 4x RS-422/485 ports

Optional module with 8-CH isolated digital input and 8-CH isolated digital output

Optional module with 16-CH isolated digital input and 16-CH isolated digital output

Optional module with ignition power control function and 1x mini-PCIe socket for in-vehicle usage

Optional 4 x additional Gigabit LAN

Optional 4 x IEEE 802.3at PoE+ Ports

Optional DIN-Rail mounting kit

Numi 170F industrial Fanless Mini PC with optional 8/16 CH DIO (Digital Input Ouput)
Specifications

System
Processor	6^th Generation Intel® Core™ i7 Mobile Processor (SkyLake-S)
Chipset	Intel® Q170 Platform Controller Hub
BIOS	Insyde
Memory	2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 2x software-programmable RS-232/422/485 port (COM1 & COM2) 1x RS-232 port (COM3)
USB	- 4x USB 3.0 ports via native XHCI controller - 4x USB 2.0 ports
DIO	Optional module with 8-CH isolated digital input and 8-CH isolated digital output Optional module with 16-CH isolated digital input and 16-CH isolated digital output
LED	Power, HDD, WDT, IGN
SIM Card	1 SIM Card Socket (Internal) 1 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Expansion Modules	Optional module with 4x RS-232/422/485 ports and 4x RS-232 ports Optional module with 4x RS-232/422/485 ports and 4x RS-422/485 ports Optional module with 8-CH isolated digital input and 8-CH isolated digital output Optional module with 16-CH isolated digital input and 16-CH isolated digital output Optional module with ignition power control function and 1x mini-PCIe socket for in-vehicle usage
Mini PCIe	2 Mini PCIe Socket : - 1x mini PCI-E socket with front-accessible SIM socket - 1x mini PCI-E socket with internal SIM socket (mux with mSATA)
Graphics
Graphics Processor	- Intel® HD Graphics 530(Core™ i7/i5/i3) - Intel® HD Graphics 510(Pentium®)
Interface	- DVI-I : Up to 1920 x 1080 @ 60Hz - DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
Storage Device	- 1x hot-swappable tray for 2.5" HDD/SSD - 1x Internal SATA port for 2.5" HDD/SSD
Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2	Intel® I210 Gigabit LAN
Optional LAN 3~6	Intel® I210 Gigabit LAN
Optional PoE+	IEEE 802.3at PoE+ PSE for GbE Port 3 ~ Port 6, 80 W total power budget
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	Optional
Remote Switch	3-pin Terminal Block : On, Off, IGN
Power Adapter	Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM)	Supports TPM 2.0
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

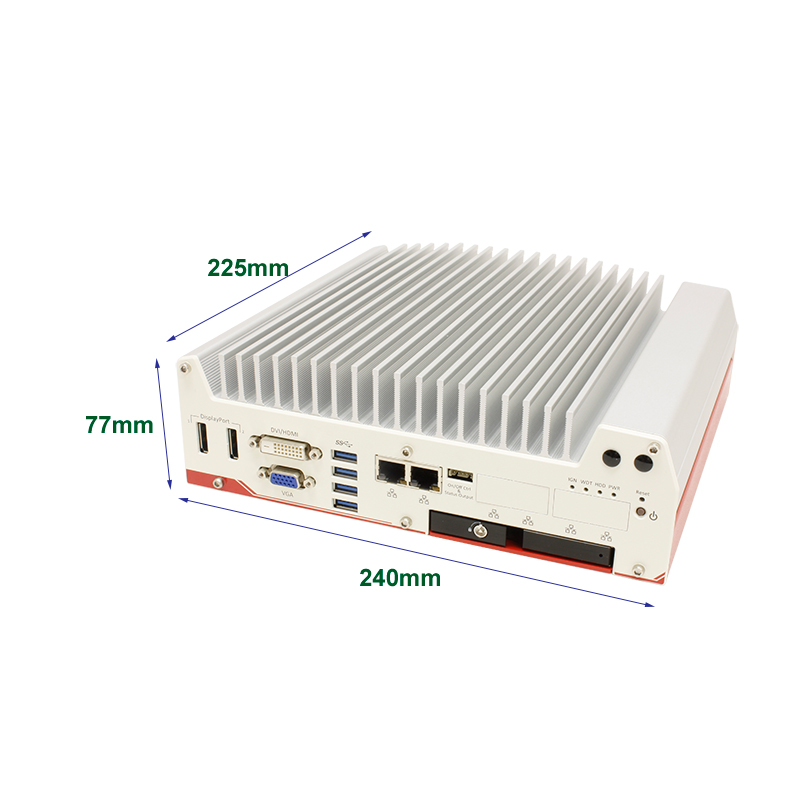

Dimensions (W x L x H)	240mm x 225mm x 77mm
Weight	3.1 kg
Mounting	- Wall Mount(Included) -DIN Rail Mount (Optional)
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported
Linux	Supported
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F) With Special Wide Temperature memory and SSD and 35W CPU -25°C to 50°C (-13°F to 131°F) With Special Wide Temperature memory and SSD and 65W CPU 0 to 40°C with Hard Disk 0 to 55°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 90% Humidity, non-condensing
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE/FCC Class A, according to EN 55022 & EN 55024 EN 50155:2007
