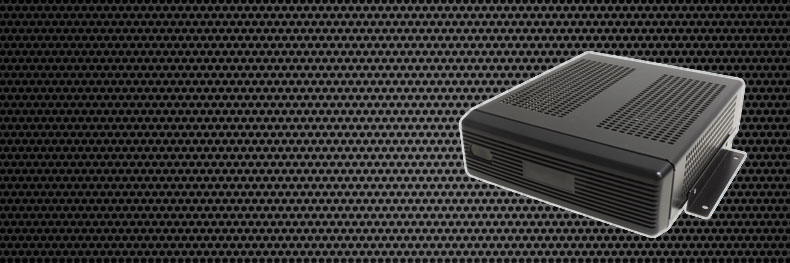

Robusto Q370 MINI ITX PC with 9th Gen. Core i7 CPU and Dual Gigabit LAN

Robusto Q370 MINI ITX PC with 9th Gen. Core i7 CPU with VGA and Hdmi 1.4 and 4K Support

Robusto Q370 MINI ITX PC with 9th Gen. Core i7 CPU with VGA and Hdmi 1.4 and 4K Support is a perfect integrated high performance Industrial machine in the market. Powerful eight Cores 9^th generation Intel® Core™ i7 (CoffeeLake) engine running with 15% enhanced productivity than former generation, Intel® Q370 chipset, dual channel DDR4 memory at 2666MHz, up to 32GB. Advanced Intel® Graphics 630 supports VGA, Display, and HDMI interfaces, up to 3 independent displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Robusto Q370 MINI ITX PC with 9th Gen. Core i7 CPU with VGA and Hdmi 1.4 and 4K Support is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Robusto 370 Mini ITX PC - A mini pc with 8th Generation Core i7 CPU, 2 x HDMI

Robusto Q370 Mini ITX PC

9^th and 8^th Generation Intel® (CoffeeLake)

6 x USB 3.1
2 x Gigabit LAN
VGA, HDMI, DisplayPort
Small Form Factor Industrial
Low Power Consumption PC

Echo 246F Industrial Fanless Mini PC with i7 CoffeeLake and Dual NIC

Features List

9^th and 8^th Generation Intel® Core™ i7 Mobile Processor (CoffeeLake)

Mini ITX Form Factor

DisplayPort (1.2), HDMI (1.4), VGA

6 x USB 3.1

2 x COM Port

2 x Intel Gigabit LAN

Long-Life Embedded Class with Planned Lifecycle

Specifications

System
Processor	9^th and 8^thGeneration Intel® Core™ i7 Processor (Coffee Lake Socket 1151)
Chipset	Intel® Q370 Chipset
BIOS	N/A
Memory	2 DDR4 2666MHz DIMM, up to 32GB
I/O Interface
Serial	- 2 X COM Ports
USB	- 4 x USB 3.1 Gen 2 (10 Gb/s) - 2 x USB 3.1 Gen 1 (5 Gb/s)
LED	Power (Front)
Video Output	DisplayPort, HDMI, VGA
Audio	Mic-In, Speaker, Headphone
Network	Intel® I219-LM, I211-AT Gigabit LAN
Super IO
	NUVOTON NCT6116D
Graphics
Graphics Processor	- Intel® HD Graphics
Resolution	- Supports HDMI with max. resolution 4096x2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096x2304 @ 60 Hz
Storage
	5 x SATA3 6Gb/s with software RAID 0, 1, 5, 10 1 x mSATA / Mini PCI-E Slot (Full-size)
Audio
Audio Codec	Realtek® ALC662VD, 5.1 Channel HD Audio
Audio Interface	Line-out, Mic-in, Heaphone
Ethernet Dual NIC
Network	Intel® I219-LM, I211AT Gigabit LAN
Power
Power Input	12V, DC-in
Power Adapter	Input universal AC 100~240V; Output DC 12V/150W
Others
TPM	Intel fTPM 2.0 (PTT) Trusted Computing Firmware Onboard NUVOTON TPM v2.0
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

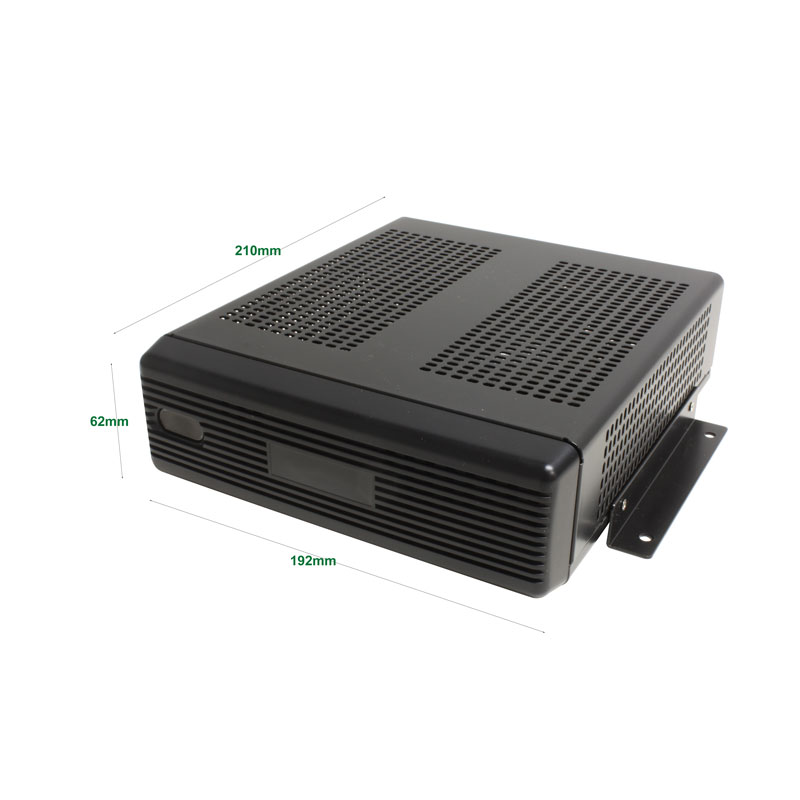

Dimensions (W x L x H)	192 x 210 x 62mm
Weight	3.8 kg (8.38 lb)
Mounting	- L shape Mounting bracket (Included)
Operating System
Windows 10 64Bit	Supported
Linux	Supported, Fedora 28.1.1, openSUSE Leap 15.0, Ubuntu 18.04
Environment
Operating Temperature	0 to 40°C
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
