Latte X1500 Mini itx Computer Small Mini Server with 64GB 128GB RAM Memory

Latte X1500 is a Mini-Server Computer features up to 128GB Memory. With Low power consumption and 2 x Gb LAN ports and 2 x 10Gb LAN ports, it's perfect for clients that need a networked backup, streaming, file, or mini web server.

Latte B85 Mini PC with Multiple 3x VGA for POS Applications

Latte X1500 Mini PC

Intel® Xeon® D-1541 8-Core processor

1 x VGA
2 x Gb LAN Ports
Small Form Factor
Low Power Consumption PC
Up to 128GB Memory support

Latte 2750 Mini Server Computer With 32GB / 64GB RAM Memory

Features

Intel® Xeon® D-1541 8-Core processor

Intel® Virtualization Technology VT-x

Support 64GB and Up to 128GB Memory

2 x USB 3.0

2 x Intel® I350 built-in port GbE controllers

2 x Intel® x557-AT2 SoC 10GBase-T

1 x VGA

1 x COM Port

Optional TPM Module

Latte x1500 Mini itx Computer Small Mini Server with 64GB 128GB RAM Memory Specifications

Processor	Intel® Xeon® processor D-1541 in the FCBGA 1667 package CPU TDP support 45W, 12MB, 8 Cores, 16 Threads Intel® Virtualization Technology VT-x
Bios	AMI: American Megatrends, Inc UEFI supported.
System Memory	Memory Cappacity: 4x DDR4 RDIMM socket Supports up to 128GB DDR4 ECC Un-Buffered memory Memory Type: 2400/2133/1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM DIMM Sizes: 32GB, 16GB, 8GB, 4GB Memory Voltage: 1.2 V
Video	BMC integrated Aspeed AST2400
Audio	Not Available
Storage	Support 2 x 2.5" SATA Hard disk, CF Disk or SSD drive 1 x M.2 SSD
LAN	2 x Intel® I350 built-in port GbE controllers Support PXE Boot Support Wake on LAN 2 x Intel® x557-AT2 SoC 10GBase-T Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1 x IPMI with dedicated LAN

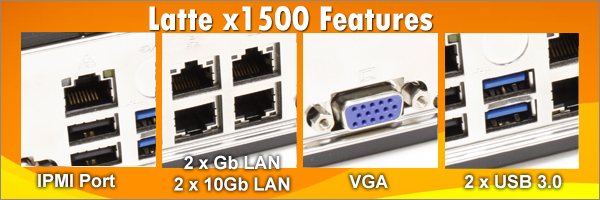

Back I/O	2 x USB 3.0 2 x USB 2.0 1 x VGA Optional 1 x COM Port 2 x RJ45 LAN (10/100/1000) 2 x RJ45 LAN (10/100/1000/10GBase-T) 1 x IPMI LAN Port

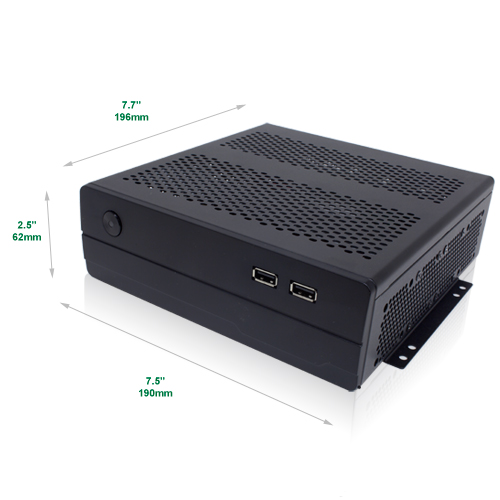

Dimension & Weight	7.5" (W) x 7.7" (D) x 2.5" (H) 5.2 lb. Fully Loaded
Power Management	Watch Dog Timer Available
Operating & Storage Temperature	Operating Temperature: 0 to 40°C Storage Temperature: -20 to 85°C
Power Supply	External 110~240V AC-DC Adapter 2-pin 12V DC@7A 80W Power Loss Resume feature available
Mounting	-Optional Dual VESA mounting bracket -Optional L Shape Mounting
Optional Feature	-Optional TPM Module
OS Support	Ubuntu Linux 14.4.4 LTS (ACHI Mode) Ubuntu Linux 13.10 (AHCI Mode) RedHat Linux EL 7.0, 7.1, 7.2 (AHCI Mode) Windows 8.1 (x86, x64) Windows 7 (x86, x64) Windows Hyper-V Server 2012 R2(x64 AHCI Mode) Windows Server 2012 R2(x64 AHCI Mode) Windows Server 2008 R2 SP1(x64 IDE Mode) VMware ESXi 6.0 (Virtualization Technology)
Certificate	CE, FCC, RoHS
