Mini ITX PC with 9th Gen. Core i7 CPU - Robusto 310 -CappuccinoPC.com

Robusto 310 MINI ITX PC with 9^th Gen. Core i7 CPU

Robusto 310 MINI ITX PC with 9^th Gen. Core i7 CPU is a perfect integrated high performance Industrial machine in the market. Powerful Six Cores 9^th generation Intel® Core™ i7 (CoffeeLake) engine running with 15% enhanced productivity than former generation, Intel® 310 chipset, dual channel DDR4 memory at 2666MHz, up to 32GB. Advanced Intel® Graphics 630 supports VGA, DVI-D, and HDMI interfaces, up to 3 independent displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Robusto 310 MINI ITX PC with 9^th Gen. Core i7 CPU is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Robusto 310 Mini ITX PC

9^th Generation Intel® (CoffeeLake)

2 x USB 3.1
VGA, DVI-D, and HDMI
Small Form Factor Industrial
Low Power Consumption PC

Echo 246F Industrial Fanless Mini PC with i7 CoffeeLake and Dual NIC

Features List

9^th Generation Intel® Core™ i7 Mobile Processor (CoffeeLake)

Mini ITX Form Factor

VGA, DVI-D(Digital Only), HDMI

2 x USB 3.1

2 x USB 2.0

PS2 Port

Gb LAN

M.2 (socket 3, M key)

M.2 (socket 1, E key)

Robusto 310 Mini ITX PC - A mini pc with 8th Generation Core i7 CPU
Specifications

System
Processor	9^thGeneration Intel® Core™ i7 Processor (Coffee Lake Socket 1151)
Chipset	Intel® H310 Chipset
BIOS	AMI
Memory	2 DDR4 2666MHz DIMM, up to 32GB
I/O Interface
Serial	- N/A
USB	- 2 USB 3.1 Gen 1 (blue) Type-A up to 5Gbps - 2 USB 2.0
LED	Power (Front)
Video Output	DVI-D (Digital Only), VGA, HDMI
Audio	Mic-In, Speaker, Headphone
Network	Realtek® RTL8111H Gigabit LAN supports iAMT 11.0
PS/2	1 x PS/2 keyboard/mouse combo port(s)
Expansion
M.2	1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode) 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
Graphics
Graphics Processor	- Intel® HD Graphics
Resolution	- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Storage
M.2	1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode) 1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode
Audio
Audio Codec	Realtek® ALC887, 5.1 Channel HD Audio
Audio Interface	Line-out, Mic-in, Heaphone
Ethernet Dual NIC
LAN 1	Realtek® RTL8111H Gigabit LAN supports iAMT 11.0
Power
Power Input	12V, DC-in
Power Adapter	Input universal AC 100~240V; Output DC 12V/150W
Others
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

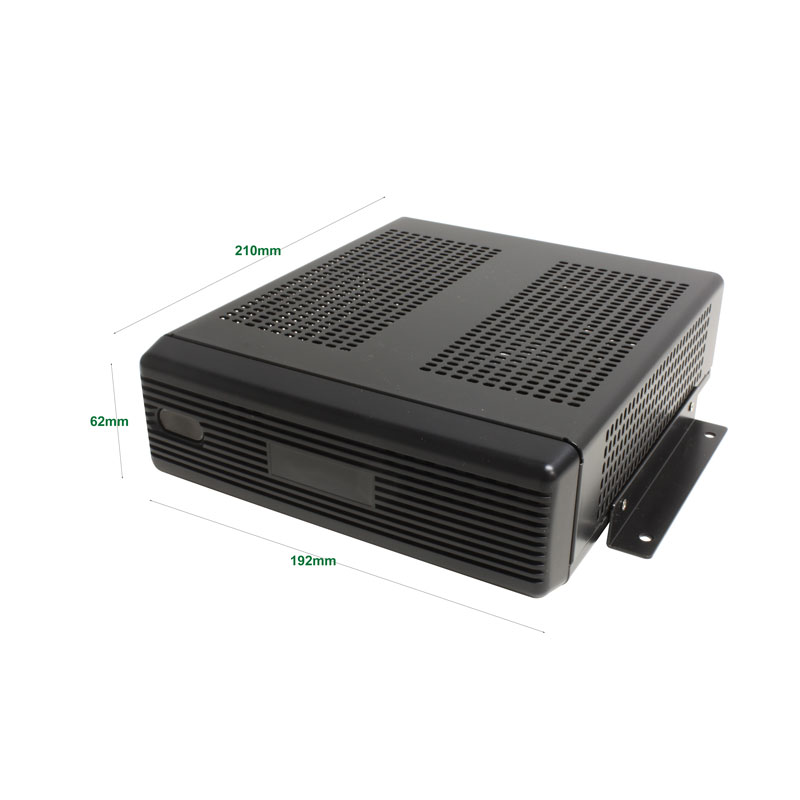

Dimensions (W x L x H)	192 x 210 x 62mm
Weight	3.8 kg (8.38 lb)
Mounting	- L shape Mounting bracket (Included)
Operating System
Windows 10	Supported
Linux	Supported
Environment
Operating Temperature	0 to 40°C
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
