Processor |
Intel 4th Gen i7,i5,i3 Socket LGA 1150 (Formerly Haswell) |
Bios |
AMI: American Megatrends, Inc
128 Mb Flash ROM UEFI supported.
|
Chipset |
Intel® Q87 Chipset |
System Memory |
2 x DDR3 SO-DIMM up to 16GB, Support Dual Channel |
Audio |
Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
Storage |
Support 1 x mSATA SSD |
LAN |
2 x PCI-E Gigabit Ethernet (Intel® i217LM and Realtek® 8111G)
Support PXE Boot
Support Wake on LAN
|

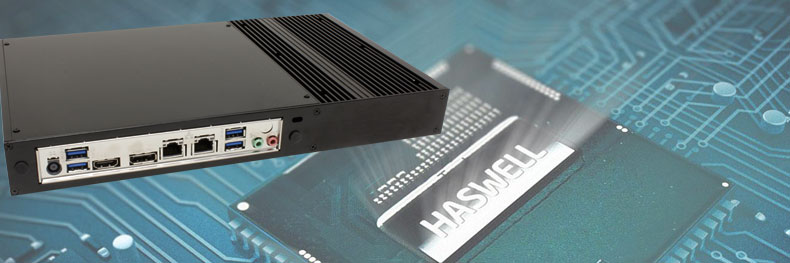

Back I/O |
4 x USB 3.0
1 x DisplayPort
1 x HDMI
1 x Optional COM Port
2 x RJ45 LAN (10/100/1000)
1 x Line Out
2 x Optional Wifi /Bluetooth Antenna Holes
1 x kingston lock slot hole
1 x Mic in
|
Expansion Slot |
1 x mini-PCIe 2.0 x1 (half-length, black) |
Optional Features |
Optional Wifi
Optional Bluetooth
|
Dimension & Weight |

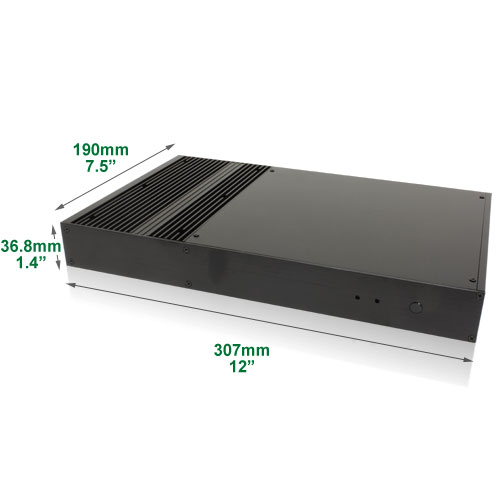

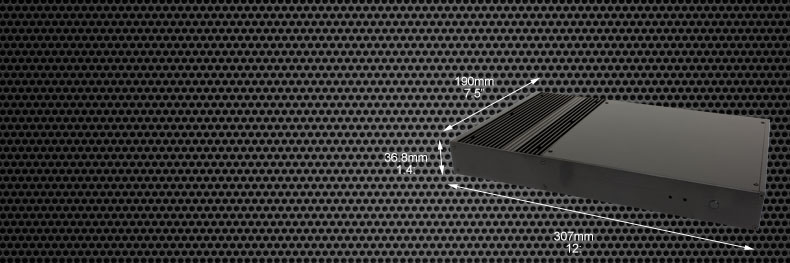

12"W x 7.5"D x 1.4"H
6.7 lb. Fully Loaded
|
Power Management |
Watch Dog Timer Available |
Operating & Storage Temperature |
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 85°C
|
Power Supply |
External 110~240V AC-DC Adapter 2-pin 19V DC@6.5A 120W
Power Loss Resume feature available
|
Mounting |
-VESA mounting holes on the case
|
OS Support |
Windows 8 (x86, x64)
Windows 7 (x86, x64)
Ubuntu
|
Certificate |
CE, FCC, RoHS |
Resolution |
Integrated Graphics Processor
Multi-VGA output support :
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Supports up to 2 displays simultaneously
|
