Latte B85 Mini PC with Multiple 3x VGA for POS Applications

Latte B85 is a Mini-PC Computer feature 4^th Generation i3/i5/i7 Prcoessor (Haswell) to deliver high-end computing ability for demanding applications. And 3 x VGA Ports, 3 x COM Ports are perfect for POS (Point of Sale), digital signage applications.

Latte B85 Mini PC

4^th Gen i3/i5/i7 Small Mini Computer

3 x VGA
3 x COM Ports
Small Form Factor
Low Power Consumption PC
Core™ 4th Gen i3/i5/i7 Mini PC Computer (Haswell)

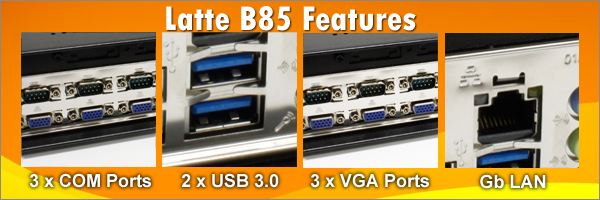

Features

Intel 4^th Generation i7,i5,i3 CPU (Haswell)

Intel B85 Chipset

2 x DDR3 SO-DIMM.

2 x USB 3.0

1 x Gigabit LAN onboard(Intel i217LM)

3 x VGA

3 x COM Ports (**COM 1 RS232/422/485 Setting under bios)

Optional Wifi & Bluetooth

Latte B85 Mini PC computer
with 3 x VGA, 3 x COM Ports Specifications

Processor	Intel 4^th Gen i7,i5,i3 Socket LGA 1150 (Formerly Haswell)
Bios	AMI: American Megatrends, Inc UEFI supported.
Chipset	Intel B85 Chipset
System Memory	2 x DDR3 SO-DIMM up to 16GB, Support Dual Channel
Audio	Realtek ALC662 6 Channel HD Audio
Storage	Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive
LAN	PCI-E Gigabit Ethernet (Intel i217LM) Support PXE Boot Support Wake on LAN
Back I/O	2 x USB 3.0 2 x USB 2.0 rear 2 x USB 2.0 Front 3 x VGA 3 x COM Port (**COM 1 RS232/422/485 Setting under bios) 1 x RJ45 LAN (10/100/1000) 1 x Line Out 1 x Line In 1 x Mic in
Onboard I/O	1 x Shared mSATA/mini-PCI Express slot (Full-size) 2 x SATA3 Connectors 3 x Serial Headers 1 x LVDS header/inverter 1 x 9-pin Audio header 1 x 2-pin SPDIF out header 1 x GPIO header 1 x Front Panel header 3 x Fan headers
Optional Features	Optional Mini PCI Express TV tuner Optional Wifi Optional Bluetooth

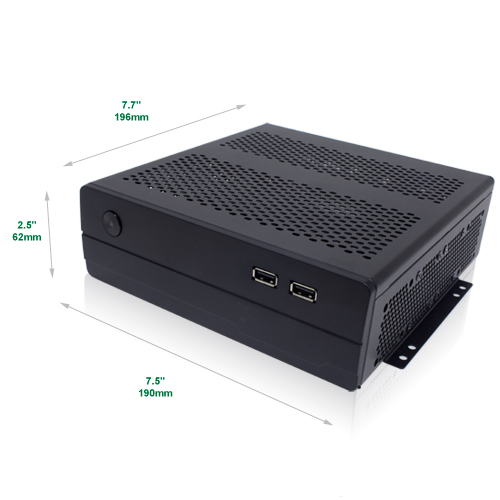

Dimension & Weight	7.5" (W) x 7.7" (D) x 2.5" (H) 5.2 lb. Fully Loaded
Power Management	Watch Dog Timer Available
Operating & Storage Temperature	Operating Temperature: 0 to 40°C Storage Temperature: -20 to 85°C
Power Supply	External 110~240V AC-DC Adapter 2-pin 12V DC@10A 120W Power Loss Resume feature available
Mounting	-Optional Dual VESA mounting bracket -Optional L Shape Mounting
OS Support	Ubuntu Linux Windows 8.1 (x86, x64) Windows 7 (x86, x64) Windows XP
Certificate	CE, FCC, RoHS
Resolution	Support HDTV 1080p Support 16:9 resolution Maximum Resolution 2048 x 1536 32-bit 60Hz Requires Intel Core processor with Intel HD 4000/5000 Graphics
