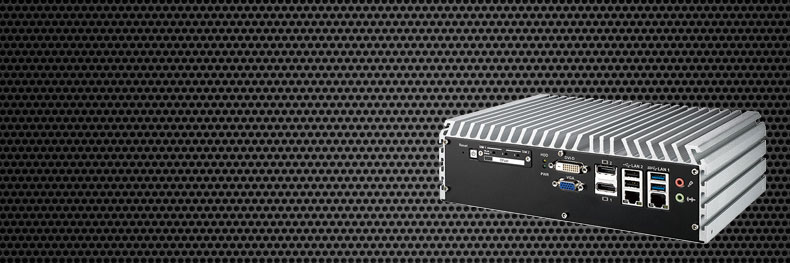

Echo 87F Industrial Fanless Mini PC with i7 Broadwell-H and Dual NIC

Echo 87F Series Industrial Fanless Mini PC with i7 Broadwell-H and Dual NIC is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 5^th generation Intel® Core™ i7 (Broadwell-H) engine running with 15% enhanced productivity than former generation, Intel® QM87 chipset, dual channel DDR3L memory at 1600MHz, up to 32GB. Advanced Intel® IrisCore™ Pro Graphics 6200/ Intel® HD Graphics 5600 supports VGA, DVI-D, dual DisplayPort and eDP display interfaces, up to 3 independent 4K displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 87F Series Industrial Fanless Mini PC with i7 Broadwell H and Dual NIC is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

Echo 87F Fanless PC

5th Generation Intel® (Broadwell-H)

2 x Gigabit LAN
2 x Display Ports
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC

Features List

5^th Generation Intel® Core™ i7 Mobile Processor (Broadwell-H)

Fanless Mini PC Industrial Design

1 Front-access CFast Socket

2 SIM Card sockets (2 External)

2 Internal 2.5" SSD/ HDD

Dual NIC

VGA/ DVI-D/ DisplayPort/ eDP Interface, up to 3 independent 4K displays

2 x USB 3.0

4 x COM Ports

32 GPIO (16 Internal) (See Manual Page 40)

Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours (See Manual Page 56~58)

6V to 36V DC-in, 80V Surge Protection

Fanless, -25°C to 70°C Operating Temperature when pair with special Memory and SSD

Intel® Firmware Raid

EN50155 compliant

Echo 87F Industrial Fanless Mini PC with i7 Broadwell-H and Dual NIC
Specifications

System
Processor	Quad Core 5th Generation/ Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)
Chipset	Intel® QM87
BIOS	AMI
SIO	IT8786E
Memory	2 DDR3L 1600MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 1 COM RS-232/ 422/ 485 - 3 COM RS-232
USB	- 4 USB 3.0 (External) - 3 USB 2.0 (2 External, 1 Internal by JST Connector)
GPIO	32 GPIO (16 Internal) (See Manual Page 40)
LED	Power, HDD
SIM Card	2 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 Half-size for PCIe/ USB
Graphics
Graphics Processor	- Intel® Iris™ Pro Graphics 6200 (5850EQ) - Intel® HD Graphics 5600 (5700EQ)
Interface	- VGA : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort 1 : Up to 4096 x 2304 @ 60Hz - DisplayPort 2 : Up to 4096 x 2304 @ 60Hz - eDP : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	2 SATA III (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I218 Gigabit LAN supports iAMT 9.5
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal) (See Manual Page 58 for detail)
Remote Switch	3-pin Terminal Block : On, Off, IGN (See Manual Page 22 for detail)
Surge Protection	Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

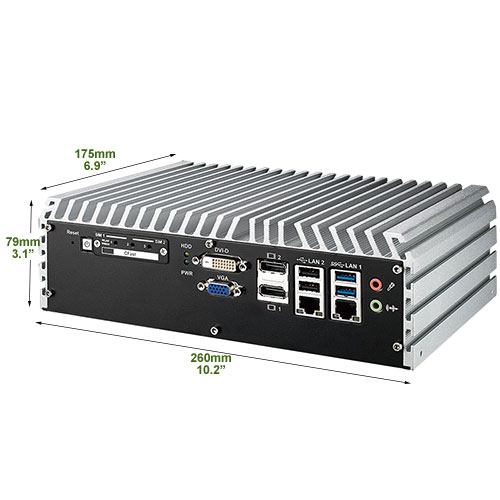

Dimensions (W x L x H)	260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight	2.8 kg (6.2 lb)
Mounting	- Wallmount by mounting bracket - 2U Rackmount (Optional)
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported
User Manual	User Manual Download
Drivers	Windows Drivers
Linux	Supported
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F) With Special Wide Temperature memory and SSD 0 to 40°C with Hard Disk 0 to 60°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2
