rohs compliant SlimPro SP385F Fanless PC is Quiet, Slim, low power consumption PC in a small form factor case
SlimPro SP385F Fanless PC is Quiet, Slim, low power consumption PC in a small form factor case

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



SlimPro SeriesMini PC SlimPro SP385F Fanless PC is Quiet, Slim, low power consumption PC in a small form factor case

SlimPro SP385F Fanless PC is Quiet, Slim, low power consumption PC in a small form factor case

SlimPro SP385F Fanless PC is Quiet, Slim, low power consumption PC in a small form factor case is a perfect integrated high performance Industrial machine in the market. Powerful 4th generation Intel® Celeron™ 2980U (Haswell) engine running with 15% enhanced productivity than former generation, Intel® 8 series chipset, dual channel DDR3 memory at 1600MHz, up to 16GB. Advanced Intel® HD Graphics supports DVI-D and DisplayPort interfaces, up to 2 independent 1080P displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

SlimPro SP385F Fanless PC is Quiet, Slim, low power consumption PC in a small form factor case is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Compact PC with Multi-LAN_SlimPro SP385G4
  SP385F Mini PC
4th Generation Intel® (Haswell)

4 x Gigabit LANs
Display Ports

Small Form Factor Industrial
Low Power Consumption Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • Intel 8 series core logic
  • Onboard Intel 4th generation Haswell-ULT processor (Celeron 2980U)
  • Support SODIMM DDR3 1333/1600Mhz 8GB * 2
  • 2 x USB 3.0 ports
  • On-board DVI-D and Display Port
  • support one full size mini-PCIe slots
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)
  • Power in: DC 12V/60W
  • Dimension Wide 4.6" x Depth 5.79" x High 2" (W117mm x D148mm x H52mm)
Related Products
i7 wide extended temperature mini pc computer

Echo 236F-QRX-PoE16(16 x PoE) Multi LANs Compact PC
Intel® Xeon E3-1505M v5

Read More
i7 wide extended temperature mini pc computer

UNOJ1900G10 (10 x LAN) Multi LANs Compact PC
Intel Celeron Bay Trail J1900 (Quard-Core)

Read More
i7 wide extended temperature mini pc computer

Echo 236F-G9(9 LAN) Multi LANs Compact PC
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236FO-10GS(2 Fiber 10GE) Multi LANs Compact PC
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236F-10GJ(2 RJ45 10GE) Multi LANs Compact PC
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Multi LANs Compact PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246-10GJR(2 10GE RJ45) Multi LANs Compact PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FO-10GSR(2 Fiber 10GE) Multi LANs Compact PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More


spacer
SlimPRO SP385F
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

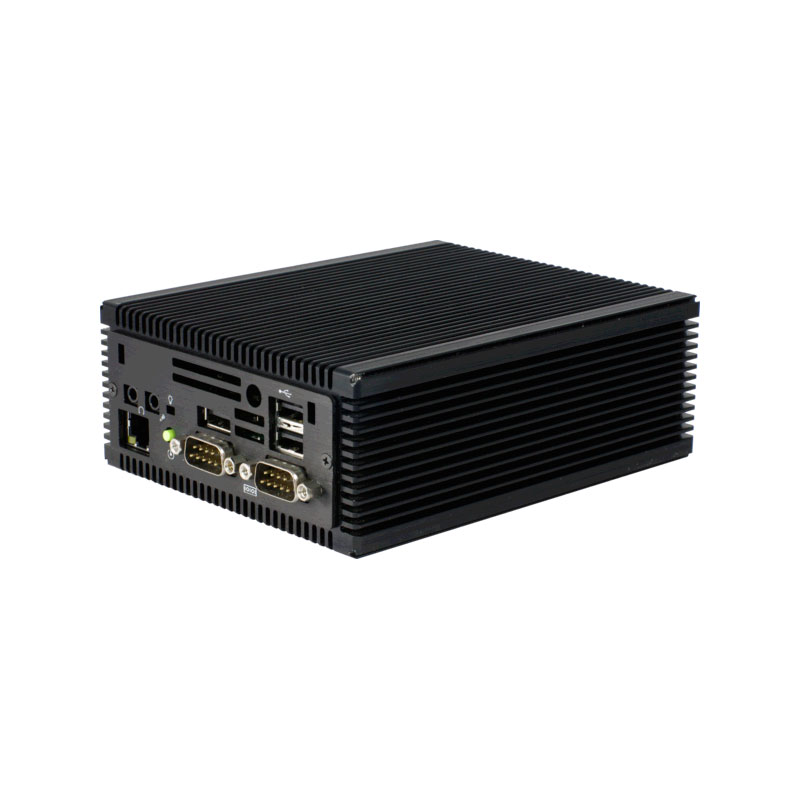

Pictures Gallery
SlimPro SP385F Fanless PC is Quiet Slim low power consumption PC in a small form factor case SlimPr
SlimPro SP385F Fanless PC is Quiet Slim low power consumption PC in a small form factor case





SlimPro SP385F is low noise, low power consumption PC in a small form factor case
Specifications

System
Processor Onboard Intel 4th generation Celeron 2980U 1.6GHz processor, 8 series chipset integrated in processor
Chipset Intel® 8 Series
BIOS Insyde UEFI BIOS
Memory 2 x DDR3 1600MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 2 x COM RS-232
USB
- 2 x USB 3.0 (External), 3 x USB 2.0
Video
- DVI-I (Digital and Analog)
- Display Port
PS/2 - PS/2 Mouse and Keyboard Ports
LED Power, HDD
Expansion
Mini PCIe
Mini PCIe Socket :
- 1 Full-size for PCIe/ USB
Graphics
Graphics Processor - Intel® HD Graphics
Interface
- DVI to VGA : Up to 1920 x 1200 @ 60Hz
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA
2 SATA III (6Gbps)
Storage Device
- 1 x 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1 Intel® I218LM Gigabit LAN
Power
Power Input Voltage 12V, DC-in
Power Adapter Input universal AC 100~240V; Output DC 12V/60W
Others
Smart Management Wake on LAN, PXE supported
HW Monitor CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H) Wide 4.6" x Depth 5.79" x High 2" (W117mm x D148mm x H52mm)
Mounting
- Optional Dual VESA mounting Bracket
- Optional Sliding Style Mounting Bracket
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Ubuntu
Environment
Operating Temperature
0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
