System |
Processor |
9th and 8th Generation Intel® Core™ i7 Mobile Processor (CoffeLake) |
Chipset |
Intel® C246 |
BIOS |
AMI |
SIO |
IT8786E |
Memory |
2 DDR4 2133MHz SO-DIMM, up to 64GB |
I/O Interface |
Serial |
- 4 COM RS-232/ 422/ 485
|
USB |
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal)
|
GPIO |
16 Isolated DIO : 8 DI, 8 DO |
LED |
Power, HDD, PoE, Wireless |
SIM Card |
2 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
|
Expansion |
Mini PCIe |
2 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 M.2 Key E Socket (Size:2230)
|
Graphics |
Graphics Processor |
- Intel® HD Graphics 630 |
Interface |
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
|
Storage |
SATA |
2 SATA III (6Gbps)
|
mSATA |
2 SATA III (Mini PCIe Type, 6Gbps) |
M.2 |
- 1 M.2 Key M socket (Support Size:2242,2260,2280)
Compatible with only Wide Temperature M.2 drive |
Storage Device |
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" Front Access SSD/ HDD
|
Audio |
Audio Codec |
Realtek® ALC892, 5.1 Channel HD Audio |
Audio Interface |
1 Line-out, 1 Mic-in |
Ethernet Dual NIC |
LAN 1 |
Intel® I219LM Gigabit LAN supports iAMT 11.0
|
LAN 2 |
Intel® I210 Gigabit LAN
|
LAN 3 PoE |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
|
LAN 4 PoE |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
|
LAN 5 PoE |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
LAN 6 PoE |
GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
LAN 7 10G Fiber |
Intel® X710-BM2 10 GigE LAN supports IEEE 802.3
10GBASE-T SFP+
|
LAN 8 10G Fiber |
Intel® X710-BM2 10 GigE LAN supports IEEE 802.3
10GBASE-T SFP+ |
Power |
Power Input |
Wide Voltage 6V to 36V, DC-in |
Power Interface |
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
|
Ignition Control |
16 Mode(Internal) |
Remote Switch |
3-pin Terminal Block : On, Off, IGN |
Surge Protection |
Up to 80V/1ms Transient Power |
Power Adapter |
Input universal AC 100~240V; Output DC 24V/120W |
Others |
Trusted Platform Module (TPM) |
Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
Watchdog Timer |
Reset : 1 to 255 sec./min. per step |
Smart Management |
Wake on LAN, PXE supported |
HW Monitor |
Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
Mechanical |

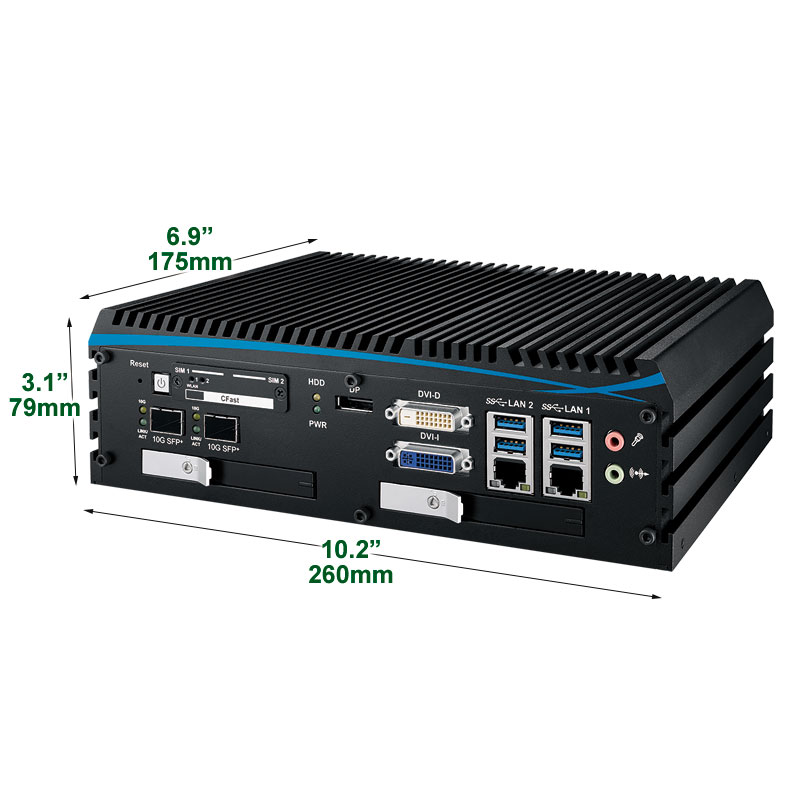

Dimensions (W x L x H) |
260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”) |
Weight |
3.8 kg (8.38 lb) |
Mounting |
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
|
Operating System |
Windows 10 |
Supported |
Linux |
Supported
|
User Manual |
User Manual Download
|
Environment |
Operating Temperature |
-25°C to 55°C With Special Wide Temperature memory and SSD and 35W CPU
-25°C to 40°C With Special Wide Temperature memory and SSD and 65W CPU
0 to 40°C with Hard Disk
0 to 55°C with SSD
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
Humidity |
10% to 95% Humidity, non-condensing |
Relative Humidity |
95% at 70°C |
Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
EMC |
CE, FCC, EN 50155, EN 50121-3-2 |
