rohs compliant Echo 246-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Ports
Echo 246-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Ports

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesMini PC Echo 246-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Ports

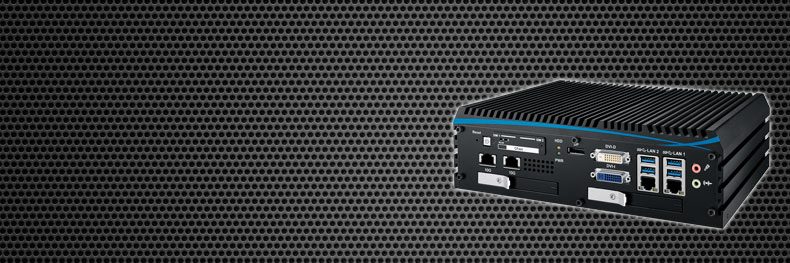

Echo 246-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Ports

Echo 246-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Ports, featuring with 10Gbps new generation data rate, is an all-in-one high-performance embedded engine featured with (10GE, 10GbE, or 10 GigE) RJ45 LAN. Powerful Eight Cores 9th and 8th generation Intel® Core™ i7 (CoffeeLake) engine running with 15% enhanced productivity than former generation, Intel® C246 chipset, dual channel DDR4 memory at 2666MHz, up to 64GB. Advanced Intel® Graphics 630 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 246-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Portsis ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo-236FO-10GS-IoT-Device-Fanless-Mini-PC-with-Dual-10G-SFP+_Fiber-Optic-LANs and 4 PoE
  Echo 246-10GJR 10G PC
9th and 8 th Generation Intel® (CoffeeLake)

2 x 10GE LAN Fiber Optic LAN
Small Form Factor Industrial
Low Power Consumption Industrial PC
Echo-236FO-10GS-IoT-Device-Fanless-Mini-PC-with-Dual-10G-SFP+_Fiber-Optic-LANs and 4 PoE


Features List

  • 9th and 8th Generation Intel® Core™ i7 Mobile Processor (CoffeeLake)
  • Mini PC Industrial Design, this model has small fan on 10G network card
  • 1 Front-access CFast Socket
  • 2 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 2 Front Access 2.5" SSD/ HDD
  • 2 x Gb LANs
  • 4 x GigE PoE (Power Over Ethernet)
  • 2 x (10GE, 10GbE, or 10 GigE) 10 Gigabit Ethernet LANs
  • DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 6 x USB 3.1
  • 4 x COM Ports
  • 16 GPIO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 36V DC-in, 80V Surge Protection
  • -25°C to 55°C Operating Temperature when pair with special Memory and SSD
  • Intel® Firmware Raid
  • EN50155 compliant
Related Products
i7 wide extended temperature mini pc computer

Echo 246F(2 LAN) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246F-PoE(4 x PoE) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FP(PCI Slot) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246-10GJR(2 10GE RJ45) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FO-10GSR(2 Fiber 10GE) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FW(Wide Temp) Machine Vision PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More


spacer
Echo 246-10GJR
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery

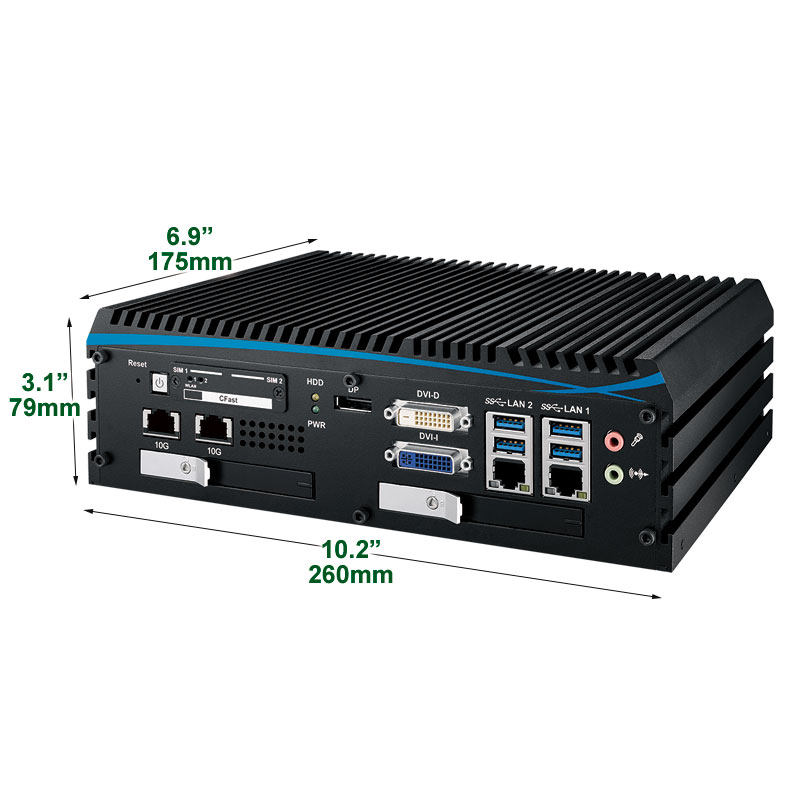

Echo 246F-10GJR Machine Vision Computer with Dual 10G RJ45 LANs and 4 PoE Ports
Specifications

System
Processor 9th and 8th Generation Intel® Core™ i7 Mobile Processor (CoffeLake)
Chipset Intel® C246
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 64GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal)
GPIO 16 Isolated DIO : 8 DI, 8 DO
LED Power, HDD, PoE, Wireless
SIM Card 2 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
2 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 M.2 Key E Socket (Size:2230)
Graphics
Graphics Processor - Intel® HD Graphics 630
Interface
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
M.2
- 1 M.2 Key M socket (Support Size:2242,2260,2280)
Compatible with only Wide Temperature M.2 drive
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" Front Access SSD/ HDD
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
LAN 3 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 7 10G RJ45
Intel® X550-AT2 10 GigE LAN
LAN 8 10G RJ45
Intel® X550-AT2 10 GigE LAN
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Power Adapter Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight 3.8 kg (8.38 lb)
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10 Supported
Linux Supported
User Manual User Manual Download
Environment
Operating Temperature -25°C to 55°C With Special Wide Temperature memory and SSD and 35W CPU

-25°C to 40°C  With Special Wide Temperature memory and SSD and 65W CPU

0 to 40°C with Hard Disk
0 to 55°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
