rohs compliant Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports
Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports

Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports

Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports, featuring with 10Gbps new generation data rate, is an all-in-one high-performance embedded engine featured with (10GE, 10GbE, or 10 GigE) SFP+ Fiber LAN. Powerful quad-core 7th and 6th generation Intel® Core™ i7 (Kaby Lake / Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® C236 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

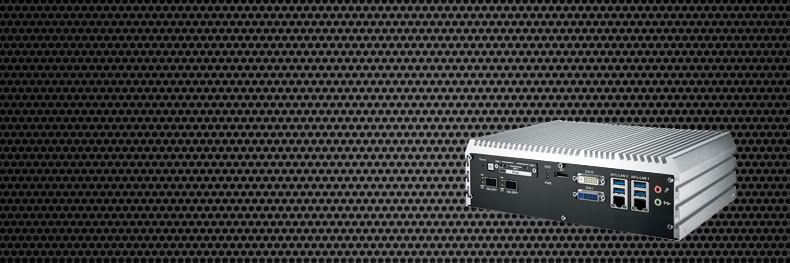

Echo-236FO-10GS-IoT-Device-Fanless-Mini-PC-with-Dual-10G-SFP+_Fiber-Optic-LANs and 4 PoE
  Echo 236FO-10GS Fanless PC
7 th and 6 th Generation Intel® (Kaby Lake / SkyLake-S)

2 x 10GE LAN Fiber Optic LAN
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • 7th and 6th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake / SkyLake-S)
  • Fanless Mini PC Industrial Design
  • 1 Front-access CFast Socket
  • 3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 2 Internal 2.5" SSD/ HDD
  • 2 x Gb LANs
  • 4 x GigE PoE (Power Over Ethernet)
  • 2 x (10GE, 10GbE, or 10 GigE) 10 Gigabit Ethernet Fiber Optic LANs 10GBASE-T SFP+
  • DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 6 x USB 3.0
  • 4 x COM Ports
  • 16 GPIO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 36V DC-in, 80V Surge Protection
  • Fanless, -25°C to 55°C Operating Temperature when pair with special Memory and SSD
  • Intel® Firmware Raid
  • EN50155 compliant
Related Products
i7 wide extended temperature mini pc computer

Mica Ultra Thin Embedded Fanless Mini PC
Built-in Dual NIC
Desktop Haswell (4th Gen. i7 CPU)

Read More
i7 small mini pc computer

SP675 Series Small Embedded Fanless Mini PC

Add-ons Dual NIC
Mobile Ivy Bridge (3rd Gen. i7)

Read More

Numi 210F Embedded Mini PC ( Fanless Mini PC)
Numi 210F BayTrail 2xLAN / 4xCOM Ports Low Power Mini PC
Built-in Dual NIC
Intel Atom BayTrail I-E3845

Read More
i7 wide extended temperature mini pc computer

Echo 77FE
(Embedded Fanless Mini PC)
PCI-E x 16

Built-in Dual NIC
Mobile IvyBridge (3rd Gen. i7)

Read More
i7 wide extended voltage mini pc computer

Echo 77-PoE+ ( Fanless Mini PC Embedded)
Wide Voltage
(6-36V)

Built-in Dual NIC
Mobile IvyBridge (3rd Gen. i7)

Read More
3 x VGA 3 x COM Ports Mini PC

Latte Q87 Embedded
Small Computer

Dual NIC
Budget i7 LGA1150 (Haswell) Solution.

Read More

Digital Engine DE3250 (Fanless Mini Embedded PC)
Digital Engine DE3250 2x Gigabit Ethernet / 2x HDMI Fanless Mini PC
Ultra Small Computer
Built-in Dual NIC
Intel N2930 CPU

Read More
i7 fanless mini pc computer with PCI Express Slot

Twister Series (Fanless Mini Embedded PC)
(PCI-e x1 Slot)
(PCI slot)

Built-in Dual NIC
Mobile IvyBridge (3rd Gen. i7)

Read More


spacer
Echo 236FO-10GS
To Customize a Complete System.  Silver / Grey
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery
Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports
Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10GE SFP+ Fiber Optic LANs and 4 GigE PoE Ports





Echo 236FO-10GS IoT-Device Fanless Mini PC with Dual 10G SFP+ Fiber Optic LANs and 4 PoE Ports
Specifications

System
Processor 7th and 6th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake and SkyLake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal)
GPIO 16 GPIO
LED Power, HDD
SIM Card 3 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 Half-size for PCIe/ USB
Graphics
Graphics Processor - Intel® HD Graphics 530
Interface
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM 1 SATA II (3Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
LAN 3 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 4 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 5 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 6 PoE GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210
LAN 7 10G Fiber
Intel® X710-BM2 10 GigE LAN supports IEEE 802.3 10GBASE-T SFP+
LAN 8 10G Fiber
Intel® X710-BM2 10 GigE LAN supports IEEE 802.3 10GBASE-T SFP+
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Power Adapter Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

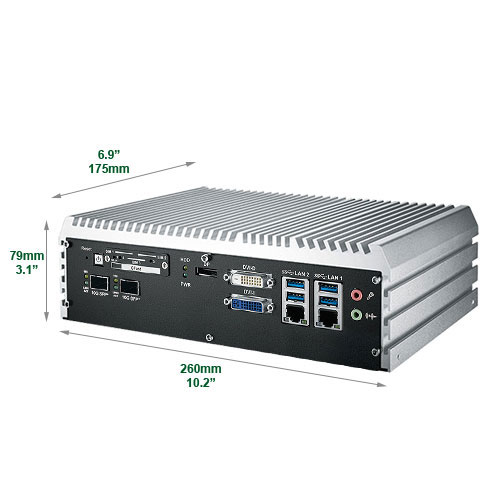

Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight 3.8 kg (8.38 lb)
Mounting
- L shape Mounting bracket (Included)
- VESA mounting (Optional)
- 2U Rackmount (Optional)
- DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported (6th Gen CPU only)
Linux Supported
Environment
Operating Temperature -25°C to 55°C With Special Wide Temperature memory and SSD and 35W CPU

-25°C to 40°C  With Special Wide Temperature memory and SSD and 65W CPU

0 to 40°C with Hard Disk
0 to 55°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
