rohs compliant Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk
Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk
Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk

Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk

Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 7th and 6th generation Intel® Core™ i7 (Kaby Lake /Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® C236 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-D, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K)). It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

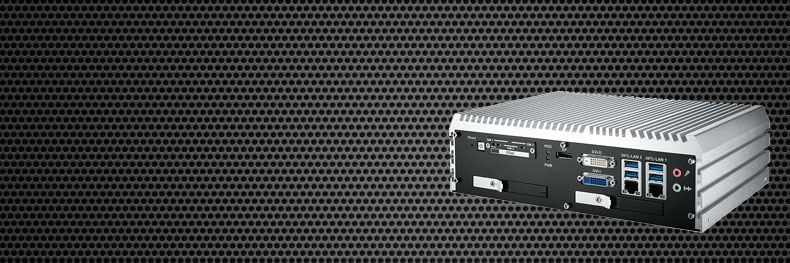

  Echo 236FR Fanless PC
7th and 6th Generation Intel® (SkyLake-S)

2 external removable 2.5" SSD/ HDD
DVI-I, DVI-D, and Display Ports
Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • 7th and 6th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake / SkyLake-S)
  • Fanless Mini PC Industrial Design
  • 1 Front-access CFast Socket
  • 3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 2 external removable 2.5" SSD/ HDD
  • Dual NIC
  • DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 6 x USB 3.0
  • 4 x COM Ports
  • 16 GPIO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 36V DC-in, 80V Surge Protection
  • Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD
  • Intel® Firmware Raid 0, 1(Mirror) for windows OS only
  • EN50155 compliant
Related Products
i7 wide extended temperature mini pc computer

Echo 236F(2 LAN) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236FW(Wide Temp) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236FO(2 Fiber Optic) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236FR(2 Hard Disk) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236FOR(2 Fiber, 2 HD) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236F-G4(4 LAN) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236FO-10GS(2 Fiber 10GE) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 236F-G9(9 LAN) Embedded Fanless Mini PC
with 2 x Hard Disk
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More


spacer
Echo 236FR
To Customize a Complete System.  Silver / Grey
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery
Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk
Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk





Echo 236FR Industrial Embedded Raid Fanless Mini PC with 2 x Hard Disk
Specifications
System
Processor 7th and 6th Generation Intel® Core™ i7 Mobile Processor (Kaby Lake / SkyLake-S)
Chipset Intel® C236
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 6 USB 3.0 (External)
- 1 USB 2.0 (Internal)
GPIO 16 GPIO
LED Power, HDD
SIM Card 3 SIM Card Socket (External)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 Half-size for PCIe/ USB
Graphics
Graphics Processor - Intel® HD Graphics 530
Interface
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 x 2.5" SSD/ HDD Removable (External)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Power Adapter Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

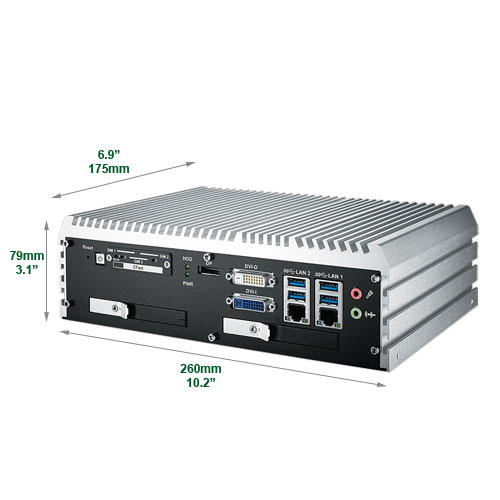

Dimensions (W x L x H) 260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
