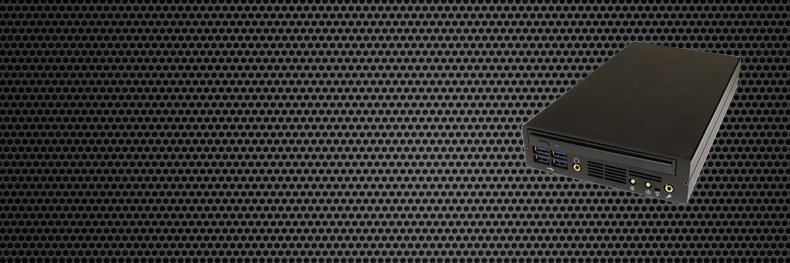

Mini PC with 9th Gen i7 CPU and Optical Drive Option - SlimPro SP695P

SlimPro SP695P is a mini pc that supports 9^th Gen Core™ i7 CPU and an optional DVD drive.

SlimPro SP695P is a mini pc that supports 9^th Gen Core™ i7 CPU and an optional DVD drive. It is a perfect integrated high performance Industrial machine in the market. Powerful 8 core 9^th generation Intel® Core™ i7 (CoffeeLake) engine running with 15% enhanced productivity than former generation, Intel® Q370 chipset, dual channel DDR4 memory at 2666MHz, up to 32GB. Advanced Intel® HD Graphics 630UHD supports DVI-D(Digital Only) and DisplayPort interfaces, up to 2 independent 4k displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

SlimPro SP695P is a mini pc that supports 9^th Gen Core™ i7 CPU and an optional DVD drive.It is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

SP695P Mini PC

9^th Generation Intel® (CoffeeLake)

6 x USB 3.1 Gen2
Display Ports
Small Form Factor Industrial
Low Power Consumption Industrial PC

Features List

Intel® Q370 core™ logic

Support Intel® Core™ 9^th Generation Core™ FCLGA1151 low power CPU (35W)

Support SODIMM DDR4 2666Mhz 16GB * 2

Intel® i219LM Gigabit LAN and 6 x USB 3.1 Gen2(External)

On-board DVI-D(Digital Only) and Display Port

Optional dual mini-PCIe slots support one full size and one half size mini card

Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)

Support SATA slim optical disk drive

Power in: DC 12V

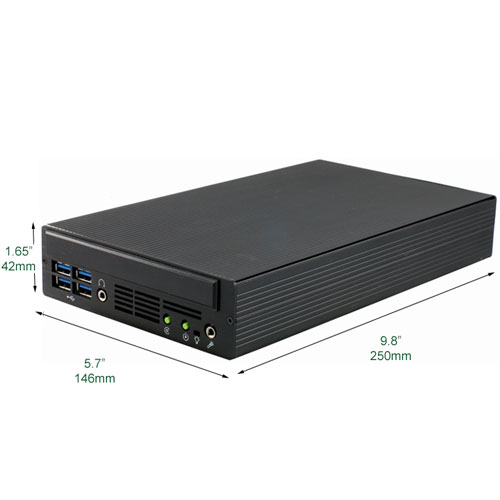

Dimension 5.7"(W) x 9.8"(D) x 1.65"(H) (W146mm x L250mm x H42mm)

Specifications

System
Processor	Intel® Core™ 9^th Generation Core™ i7 CPU FC LGA1151 socket low power(35W) CPU (Desktop Type)
Chipset	Intel® Q370
BIOS	Insyde UEFI BIOS
Memory	2 x DDR4 2666MHz SO-DIMM, up to 32GB (NON-ECC)
I/O Interface
Serial	- 1 COM RS-232/RS-485, Optional 2^nd COM RS-232/RS-485, Configure under bios
USB	- 6 x USB 3.1 Gen2(External)
Video	- DVI-D (Digital Only) - Display Port 1.2
PS/2	- PS/2 Mouse and Keyboard Ports
LED	Power, HDD
Expansion
Mini PCIe	Mini PCIe Socket : - 1 Full-size for PCIe/ USB - 1 Half-size for PCIe/ USB
Graphics
Graphics Processor	- Intel® HD Graphics
Interface	- DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort : Up to 3840 x 2160 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
Storage Device	- 2 x 2.5" SSD/ HDD Bracket (Internal) 2^nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec	Realtek® ALC898, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1	Intel® i219LM Gigabit LAN
Power
Power Input	Voltage 12V, DC-in
Power Adapter	Input universal AC 100~240V; Output DC 12V Required 120W adapter needed for CPU turbo boost enable
Others
Smart Management	Wake on LAN, PXE supported
HW Monitor	CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H)	146mm x 250mm x 42mm (5.7” x 9.8” x 1.65”)
Weight	2.4 kg (5.3 lb)
Mounting	- Optional U-Shape mounting bracket - Optional Dual VESA mounting Bracket - Optional Sliding Style Mounting Bracket
Operating System
Windows 10	Supported
Linux	Ubuntu
Environment
Operating Temperature	0 to 40°C with Hard Disk 0 to 60°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
