rohs compliant Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)
Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



Echo PC SeriesFanless Mini PC Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)

Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)

Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot) is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 6th generation Intel® Core™ i7 (Skylake-S) engine running with 15% enhanced productivity than former generation, Intel® Q170 chipset, dual channel DDR4 memory at 2133MHz, up to 32GB. Advanced Intel® Graphics 530 supports DVI-I, DVI-D, and DisplayPort interfaces, up to 3 independent displays(DisplayPort itself support 4K) It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot) is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC
  Expando Duo E88 Fanless PC
6th Generation Intel® (SkyLake-S)

2 PCIe x8 Slot
DVI-I, DVI-D, and Display Ports

Small Form Factor Fanless Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • 6th Generation Intel® Core™ i7 Mobile Processor (SkyLake-S)
  • Fanless Mini PC Industrial Design
  • 2 PCIe x8 Slot
  • 1 Front-access CFast Socket
  • 2 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)
  • 2 Internal 2.5" SSD/ HDD
  • Dual NIC
  • DVI-I/ DVI-D/ DisplayPort Interface, up to 3 independent 4K displays(DisplayPort only)
  • 7 USB 3.0 (6 External, 1 Internal)
  • 4 x COM Ports
  • 16 GPIO
  • Configurable Ignition Power Control for In-Vehicle user
    Power off delay up to 24 hours
  • 6V to 36V DC-in, 80V Surge Protection
  • Fanless, -40°C to 70°C Operating Temperature when pair with special Memory and SSD
  • Intel® Firmware Raid
  • EN50155 compliant
Related Products
i7 wide extended temperature mini pc computer

Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Mini PC
PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Mini PC
PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Twister170E(PCI-E x16) Mini PC
PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE(x16 PCIe Slot) Mini PC
PCIe Expansion Slot
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo IE16(x16 and PCI Slot) Mini PC
PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More
i7 wide extended temperature mini pc computer

Echo 236FE(x16 PCIe Slot) Mini PC
PCIe Expansion Slot
7th Gen Intel® Core™ i3/i5/i7 Processors (Kaby Lake)

Read More
i7 wide extended temperature mini pc computer

Expando Duo E416(x16 and x4 Slot) Mini PC
PCIe Expansion Slot
6th Gen Intel® Core™ i3/i5/i7 Processors (Skylake-S)

Read More


spacer
Expando Duo E88
To Customize a Complete System.  Silver / Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery
Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)
Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)





Expando Duo E88 Embedded Fanless Mini PC with 2 Expansion Slots ( 2 x PCI Express x8 Slot)
Specifications

System
Processor Intel® Core™ i7-6700/ i7-6700TE/ i5-6500/ i5-6500TE/ i3-6100/ i3-6100TE Processor (Skylake-S)
Chipset Intel® Q170
BIOS AMI
SIO IT8786E
Memory 2 DDR4 2133MHz SO-DIMM, up to 32GB
I/O Interface
Serial
- 4 COM RS-232/ 422/ 485
USB
- 7 USB 3.0 (External)
- 1 USB 2.0 (Internal)
Isolated DIO 32 Isolated DIO : 16 DI, 16 DO
LED Power, HDD
SIM Card 3 SIM Card Socket (2 External, 1 Internal)
(Additional Mini PCIe Modem required)
Expansion
Mini PCIe
3 Mini PCIe Socket :
- 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA
- 1 Full-size Mini PCIe for PCIe/ USB/ Internal SIM Card/ mSATA
PCIe
2 PCIe x8 Slot
Graphics
Graphics Processor - Intel® HD Graphics 530
Interface
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DVI-D: Up to 1920 x 1080 @ 60Hz
- DisplayPort: Up to 4096 x 2304 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
mSATA 2 SATA III (Mini PCIe Type, 6Gbps)
SATA DOM 1 SATA II (3Gbps)
M2DOM 1 PCIe 3.0 (8GT/s)
Storage Device
- 1 CFast Socket, Push-in/ Push-out Ejector
- 2 2.5" SSD/ HDD Bracket (Internal)
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1 Intel® I219LM Gigabit LAN supports iAMT 11.0
LAN 2 Intel® I210 Gigabit LAN
Power
Power Input Wide Voltage 6V to 36V, DC-in
Power Interface
- 3-pin Terminal Block : V+, V-, Frame Ground
- Mini-DIN 4-pin
Ignition Control 16 Mode(Internal)
Remote Switch 3-pin Terminal Block : On, Off, IGN
Surge Protection Up to 80V/1ms Transient Power
Power Adapter Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM) Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer Reset : 1 to 255 sec./min. per step
Smart Management Wake on LAN, PXE supported
HW Monitor Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

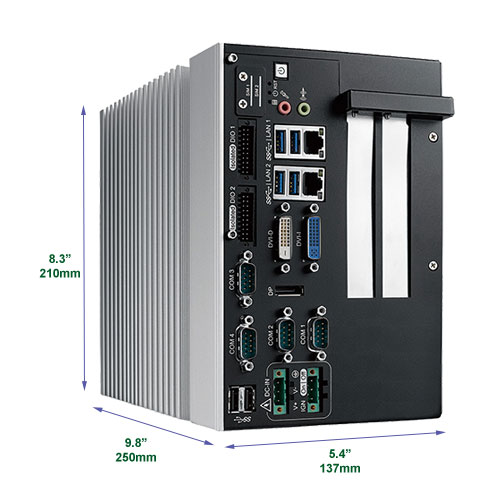

Dimensions (W x L x H) 137mm x 250mm x 210mm (5.4” x 9.8” x 8.3”)
Weight 4.3 kg (9.5 lb)
Mounting
- L shape Mounting bracket (Included)
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Supported
Environment
Operating Temperature -40°C to 70°C  (-13°F to 158°F) With Special Wide Temperature memory and SSD and 35W CPU

-40°C to 55°C  (-13°F to 131°F) With Special Wide Temperature memory and SSD and 65W CPU

0 to 40°C with Hard Disk
0 to 55°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 10% to 95% Humidity, non-condensing
Relative Humidity 95% at 70°C
Vibration
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
EMC CE, FCC, EN 50155, EN 50121-3-2
