Specifications |
P1290 (90 Watts) |
P1900 (140 Watts) |
90 Watt Dual Output Regulator |
140 Watt Dual Output Regulator |
Main output of +12V @ 6.3 Amps |
Jumper selectable main output of +18/+19/+20V |
Second output of +5V @ 3 Amps |
Jumper selectable second output of +12/+13.5V or +5V |
|
Add a 3rd output by installing the optional P5V +5/15 watt regulator |
Survives Engine Cranking under full load over entire temperature range |
Includes sophisticated Startup/Shutdown Controller |
Includes sturdy aluminum chassis with variable speed fan suitable for car environment |
Field upgradable flash microprocessor |
Low battery monitor prevents drained battery, even during Standby/Sleep |
"Anti Thump" delayed remote control for audio amplifiers |
Remote "Pulse Start" from wireless device or car alarm/remote start system |

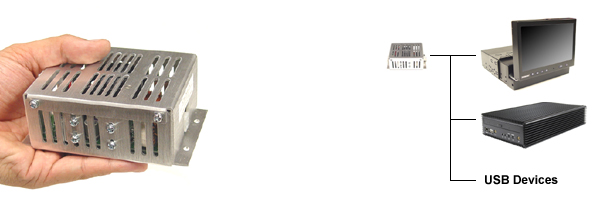

Powers both your car pc and screen or USB devices |
Full, safe support for Windows Standby mode including auto shutdown if PC fails to shutdown |
Over voltage surge suppression on battery input for protection of harsh automotive environment |
User replaceable fuse on battery input to protect your car from internal short circuits |

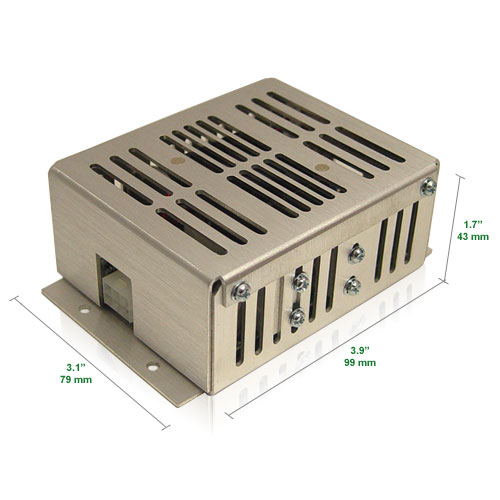

Very compact design measuring 4.6" x 3.25" x 1.75" (LxWxH) or 177mm x 83mm x 45mm |
Compatible with models |
P1290 (90 Watts) |
P1900 (140 Watts) |
SlimPRO SP625
SlimPRO SP625 (Fanless)
SlimPRO SP615 (Fanless)
SlimPRO SP300
SlimPRO SP300 (Fanless)
SlimPRO SP320
SlimPRO SP350
SlimPRO SP620H (1 x PCI Slot)
SlimPRO E10000 |
SlimPRO SP620
Cappuccino EZ3
Cappuccino GX1
Mocha 7043
Mocha 7043 Junior
Pandora PC Mini |
