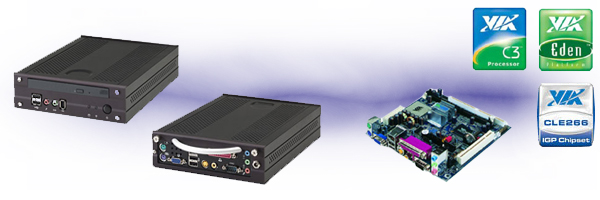

Case Specifications |
Material |
Light weight aluminum alloy and CRS
|
Finish |
Aluminum front panel with anodized finish |
Front Access |
2 x USB 2.0 ports
1 x Firewire
1 x Audio ports (Mic-in / Line-Out)
|
Cooling |
40mm Fan |
Drive Bays |
1 x Slim media
1 x Slim HDD (2.5")
|
Internal Power Supply |
Built-in 60W DC power board |
External AC Adapter |
Input: AC100 ~ 240 V
Output: DC 12V @ 5A 60W |
Dimensions |
7" (177.8mm) x 2" (50.8mm) x 10" (254.0mm) |
Mainboard Specifications |
Processor |
VIA C3T/ VIA EdenT EBGA processor |
Chipset |
VIA CLE266 North Bridge
VIA VT8235 South Bridge |
System Memory |
DDR266 DIMM socket
Up to 1GB memory size |
VGA |
Integrated VIA UniChrome AGP Graphics with MPEG-2 Accelerator |
Expansion Slots |
1 x PCI Slot |
Onboard IDE |
2 x Ultra 133/100/66 Connectors |
Onboard Floppy |
1 x FDD Connector |
Onboard LAN |
VIA VT6103 10/100 Base-T Ethernet PHY |
Onboard Audio |
VIA VT1616 6 channel AC'97 codec |
Onboard TV Out |
VIA VT1622 TV Out |
Onboard 1394 |
VIA VT6307S IEEE 1394 Firewire |
Back Panel I/O |
1 x PS/2 mouse port
1 x PS/2 keyboard port
1 x RJ45 LAN port
1 x Serial port
1 x Parallel port
2 x USB20 ports
1 x VGA port
3 x Audio jacks: line-out, line-in, and mic-in
1 x RCA port (SPDIF or TV Out)
1 x S-Video out |
Onboard I/O |
1 x USB connectors for 2 additional UBS 2.0 ports
2 x 1394 connectors for 2 1394 ports
1 x Front panel audio connector (Mic and Line out)
1 x CD Audio-in connector
1 x Buzzer
1 x FIR connector
1 x CIR connector (Switchable for KB/MS)
1 x Wake-on LAN connector
3 x CPU / SYS Fan
1 x SMBUS connector
1 x Serial port connector for a second com port
1 x ATX power connector |
BIOS |
Award BIOS
2/4 Mbit flash memory |
System Monitoring |
CPU voltage monitoring
Wake-on-LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery |
Operating Temperature |
0 ~ 50°C |
Operating Humidity |
0% ~ 93% (relative humidity; non-condensing) |
Form Factor |
Mini-ITX (6 layer)
17cm x 17cm |
