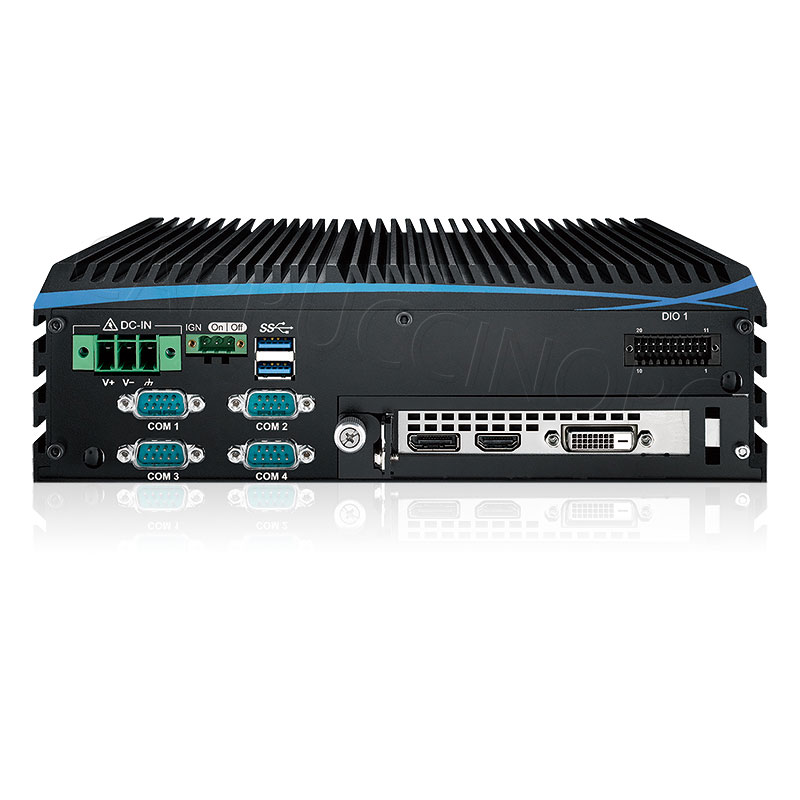

Echo246N i7 Coffee Lake with nVidia Geforce GTX1050 supports four 8K 3x displays ports

Echo246N i7 Coffee Lake with nVidia Geforce GTX1050 supports four 8K 3x displays ports

Echo246N i7 Coffee Lake with nVidia Geforce GTX1050 supports four 8K 3x displays ports is a perfect integrated high performance Industrial machine in the market. Powerful 8 cores 9^th generation Intel® Core™ i7 (Coffee Lake) engine running with 15% enhanced productivity than former generation, Advanced NVIDIA GeForce® GTX1050 chipset supports NVIDIA Pascal GPU architecture. Advanced NVIDIA GeForcel® GTX1050 supports DVI-I, DisplayPort, and 1 x Hdmi interfaces, up to 3 independent displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Echo246N i7 Coffee Lake with nVidia Geforce GTX1050 supports four 8K 3x displays ports is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.

Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC

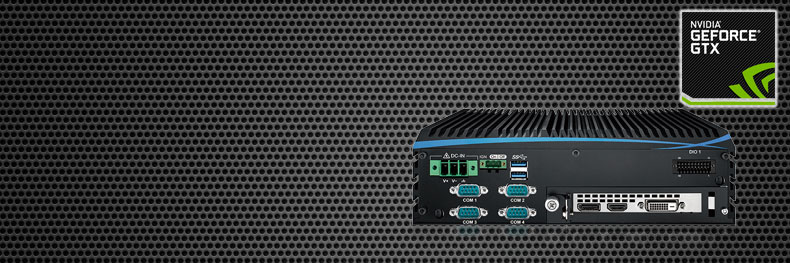

Echo 246N NVIDIA PC

9th Generation Intel® (Coffee Lake)

2 x Gigabit LAN
nVidia GTX1050
Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC

Features List

9^th Generation Intel® Core™ i7 Mobile Processor (Coffee Lake)

Heavy Duty Mini PC Industrial Design

1 Front-access CFast Socket

3 Front-access SIM Card sockets (Required Separate Mini PCIe Modem)

2 Internal 2.5" SSD/ HDD

Dual NIC GiaE LAN

Intel® HD Graphics 630 UHD up to 3 independent displays(2 x DP, 1 x DVI-D, 1 x VGA)

nVidia® Geforce GTX1050 up to 4 independent displays (1 x DP, 1 x HDMI, 1 x DVI-I)

6 x USB 3.1

4 x COM Ports

16 GPIO

Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours

12V to 36V DC-in, 80V Surge Protection

-40°C to 70°C Operating Temperature when pair with special Memory and SSD

Intel® Firmware Raid

EN50155 compliant

Echo246N i7 Coffee Lake with nVidia Geforce GTX1050 supports 4K 60fps 3x displays ports
Specifications

System
Processor	Intel® Core™ i7/i5/i3 Processor (CFL-R S)
Chipset	Intel® C246
BIOS	AMI
SIO	IT8786E
Memory	2 DDR4 2666MHz SO-DIMM, up to 64GB (ECC/ Non-ECC)
I/O Interface
Serial	- 4 COM RS-232/ 422/ 485
USB	- 6 USB 3.1 (External) - 1 USB 2.0 (Internal)
GPIO	16 GPIO
LED	Power, HDD, Wireless
SIM Card	3 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 M.2 Key E socket
Graphics
Graphics Processor	- Intel® HD Graphics 630 UHD(Max 3 independent displays) - NVIDIA GeForce® GTX 1050 (Max 3 independent displays)
Interface	- VGA : Up to 1920 x 1200 @ 60Hz (Intel) - DVI-D Digital Only: Up to 1920 x 1200 @ 60Hz (Intel) - 2 x DisplayPort: Up to 4096 x 2304 @ 60Hz (Intel) - 1 x DisplayPort: Up to 5120 x 3200 @ 60Hz (Nvidia) - DVI-I: Up to 1920 x 1200 @ 60Hz (Nvidia) - HDMI: Up to 5120 x 3200 @ 60Hz (Nvidia)
Storage
SATA	2 SATA III (6Gbps) Support Intel software RAID
mSATA	2 SATA III (Mini PCIe Type, 6Gbps)
M.2	- 1 M.2 Key M socket - 1 M.2 Key B socket Compatible with only Wide Temperature M.2 drive
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" SSD/ HDD Bracket (External)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I219LM Gigabit LAN supports iAMT 12.0
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	Wide Voltage 12V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal)
Remote Switch	3-pin Terminal Block : On, Off, IGN
Surge Protection	Up to 80V/1ms Transient Power
Power Adapter	Input universal AC 100~240V; Output DC 24V/120W
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical
Dimensions (W x L x H)	260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”)
Weight	4.5 kg (9.92lb)
Mounting	- L shape Mounting bracket (Included) - VESA mounting (Optional) - 2U Rackmount (Optional) - DIN Rail Mount 35mm Wide (Optional)
Operating System
Windows 10	Supported
Ubuntu Linux	Supported (Only can use the Video ports on Nvidia and Intel Raid Not supported)
Environment
Operating Temperature	-20°C to 60°C (-4°F to 140°F) With Special Wide Temperature memory and SSD and 35W CPU 0 to 40°C with Hard Disk 0 to 55°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% Humidity, non-condensing
Relative Humidity	95% at 60°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2

**For some Linux distributions, graphics driver and RAID function may not be completely implemented in its kernel. You may encounter restrictions when using these features, such as triple independent display and RAID. It should be user’s liability to manually upgrade related drivers if necessary
