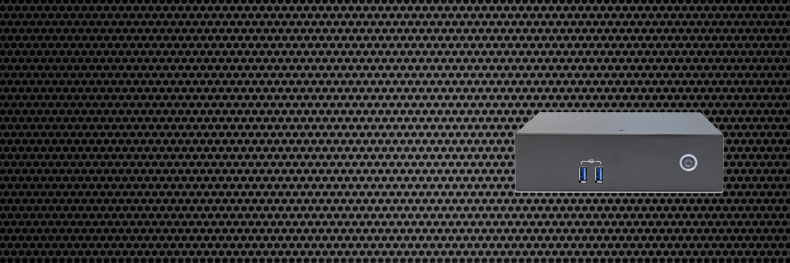

DE5500 Digital Signage Mini Computer System with dual HDMI and 2 x Gigabit Lan DE5500 Digital Signage Mini Computer System with dual HDMI and 2 x Gigabit Lan
DE5500 Digital Signage Mini Computer System with dual HDMI and 2 x Gigabit Lan
DE5500 Digital signage mini Computer system with dual HDMI and 2 x Gigabit Lan is supported by the 7th generation Intel® Core. It consumes little power due to the of this mobile processor. It supports a DDR4 dual channel memory with a maximum capacity of 32GB. The standard Digital Engine small form factor can easily be integrated into a kiosk or behind a screen for a digital signage application.
2 x Giga LAN
2 x Hdmi
Small Form Factor Industrial
Low Power Consumption Industrial PC
The innovative design of the DE5500
Supports 7th generation Intel® Core™ i5 processor
High performance support for Ultra HD resolution (4K)
Watchdog timer
2 x Giga LAN
Wake On LAN (WOL)
Power recovery via APAR (AC Power Auto Recovery)
Raid mode to enhance the reliability of the DEX5500
Digital Engine DE5500 is a mini Computer designed for tough environments. It is designed for vigorous or highly sensitive environments where digital information displays, medical appliances, POS or kiosks are running. Thanks to its Compact design the system is very quiet, reliable and flexible as to their location.
The DE5500 PC supports the 7th Generation Intel® Core™ processor family (i5) for brilliant imagery and a seamless computing experience. It has 2 independent display outputs with 3 independent audio outputs for multi display purposes.
Related Products
Echo 246F-PoE(4 x PoE)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246F(2 LAN)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246FE(x16 PCIe Slot)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246FM(4 x M12 PoE Port)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246FO-10GSR(2 Fiber 10GE)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246FP(PCI Slot)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
Echo 246FW(Wide Temp)
Multiple LAN mini Computer 9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)
Read More
DE5500 Digital Signage Mini Computer System with dual HDMI supports Ultra HD 4K resolution Specifications
System
Processor
7th generation Intel®Core™i5 processor
Chipset
N/A
BIOS
N/A
Memory
2 x DDR4 2133MHz SO-DIMM, up to 32GB

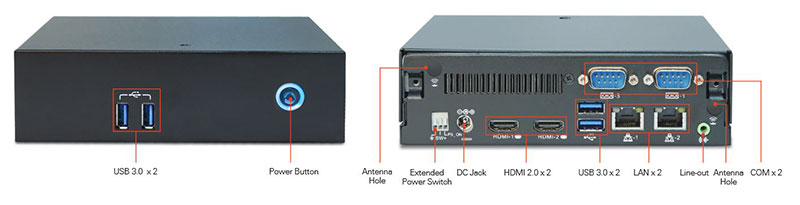

Rear I/O
Rear Panel IO
DC Jack 12/19V, 5517 x 1
HDMI 2.0 Port x 2
USB 3.0 Port x 2
RJ 45 LAN Jack x 2
Audio Set Line-out x 1
Antenna Holes x 2
COM Port RS232 x 2
Extend power SW x 1

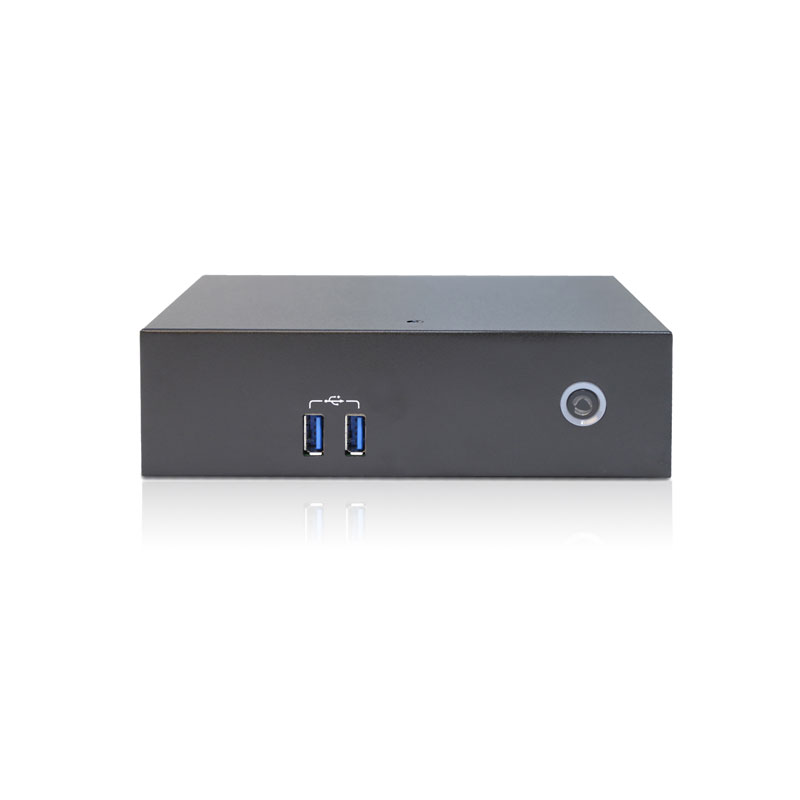

Front I/O
Front Panel I/O
USB 3.0 x 2
Power Button x 1
LED
Power, HDD
Expansion
M.2 2242 key E x 1
M.2 2242 key B x 1
M.2 2230 key E x 1
Graphics
Graphics Processor
- Intel® HD Graphics 610/620, Iris Plus 640/650
Interface
- HDMI : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 60Hz
Storage
SATA
2 SATA III (6Gbps)
Storage Device
- 1 x 2.5" SSD/ HDD Bracket (Internal)
- 1 x M.2 SSD (Internal)
Audio
Audio Codec
ALC269Q
Audio Interface
1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1
Intel ®i210AT Gigabit
LAN 2
Intel ®i219LM Gigabit
Power
Power Input
Voltage 19V, DC-in
Power Adapter
65W, AC230~110 to DC19V adaptor met DoE VI
Others
Smart Management
Wake on LAN, PXE supported
HW Monitor
CPU temperature, cooling fan speed, system voltage
