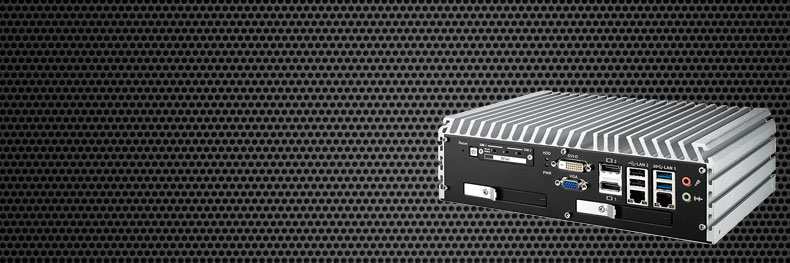

Echo 87FR Industrial Fanless Mini PC with 2 x Hard Drives in one PC

Echo 87FR Industrial Fanless Mini PC with 2 x Hard Disk in one PC

With extreme features integration, outstanding system performance, versatile I/O connections, wide range power input, smart management functions and rugged reliability, Echo 87FR Industrial Fanless Mini PC with 2 x Hard Disk in one PC is your great choice for Machine Vision, Intelligent Manufacturing, Intelligent Transportation System (ITS), In-Vehicle Information System, Logistic Solution, Vehicle Computing and Surveillance applications.

Echo 40F Embedded Fanless Mini PC with 2 LAN

Echo 87FR Fanless PC

5th Generation Intel® SoC (Broadwell-H)

2 x Display Ports
Small Form Factor Fanless
Low Power Consumption Fanless PC

Features List

5^th Generation Intel® Core™ i7 Mobile Processor (Broadwell-H)

Fanless Mini PC Industrial Design

1 Front-access CFast Socket

2 SIM Card sockets (2 External)

2 Internal 2.5" SSD/ HDD

Dual NIC

2 x Removable Hard Disk in one PC

VGA/ DVI-D/ DisplayPort/ eDP Interface, up to 3 independent 4K displays

2 x USB 3.0

4 x COM Ports

32 GPIO (16 Internal) (See Manual Page 40)

Configurable Ignition Power Control for In-Vehicle user
Power off delay up to 24 hours (See Manual Page 56~58)

6V to 36V DC-in, 80V Surge Protection

Fanless, -25°C to 70°C Operating Temperature when pair with special Memory and SSD

Intel® Firmware Raid

EN50155 compliant

Echo 87FR Embedded Fanless Mini PCwith 2 x Hard Disk
Specifications

System
Processor	Quad Core 5th Generation/ Intel® Core™ i7-5850EQ/ i7-5700EQ (Broadwell-H)
Chipset	Intel® QM87
BIOS	AMI
SIO	IT8786E
Memory	2 DDR3L 1600MHz SO-DIMM, up to 32GB
I/O Interface
Serial	- 1 COM RS-232/ 422/ 485 - 3 COM RS-232
USB	- 4 USB 3.0 (External) - 3 USB 2.0 (2 External, 1 Internal by JST Connector)
GPIO	32 GPIO (16 Internal) (See Manual Page 40)
LED	Power, HDD
SIM Card	2 SIM Card Socket (External) (Additional Mini PCIe Modem required)
Expansion
Mini PCIe	3 Mini PCIe Socket : - 2 Full-size for PCIe/ USB/ External SIM Card/ mSATA - 1 Half-size for PCIe/ USB
Graphics
Graphics Processor	- Intel® Iris™ Pro Graphics 6200 (5850EQ) - Intel® HD Graphics 5600 (5700EQ)
Interface	- VGA : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1080 @ 60Hz - DisplayPort 1 : Up to 4096 x 2304 @ 60Hz - DisplayPort 2 : Up to 4096 x 2304 @ 60Hz - eDP : Up to 4096 x 2304 @ 60Hz
Storage
SATA	2 SATA III (6Gbps)
mSATA	2 SATA III (Mini PCIe Type, 3Gbps) Shared with Mini PCIe device
Storage Device	- 1 CFast Socket, Push-in/ Push-out Ejector - 2 2.5" Front-access 2.5" SSD/ HDD Tray)
Audio
Audio Codec	Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface	1 Line-out, 1 Mic-in
Ethernet Dual NIC
LAN 1	Intel® I218 Gigabit LAN supports iAMT 9.5
LAN 2	Intel® I210 Gigabit LAN
Power
Power Input	Wide Voltage 6V to 36V, DC-in
Power Interface	- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin
Ignition Control	16 Mode(Internal) (See Manual Page 58 for detail)
Remote Switch	3-pin Terminal Block : On, Off, IGN (See Manual Page 22 for detail)
Surge Protection	Up to 80V/1ms Transient Power
Others
Trusted Platform Module (TPM)	Optional Infineon SLB9665 supports TPM 2.0, LPC Interface
Watchdog Timer	Reset : 1 to 255 sec./min. per step
Smart Management	Wake on LAN, PXE supported
HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats.
Mechanical

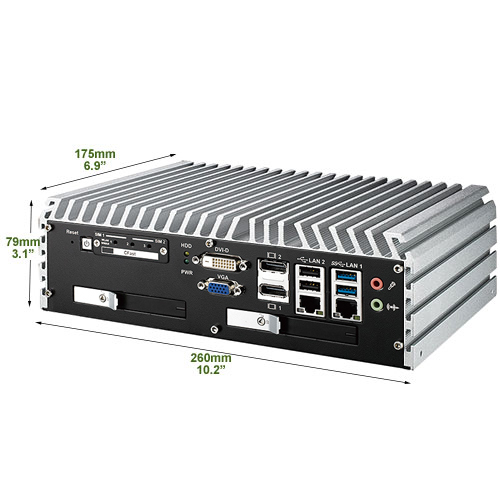

Dimensions (W x L x H)	260mm x 175mm x 79mm (10.2” x 6.9” x 3.1”)
Weight	2.8 kg (6.2 lb)
Mounting	- Wallmount by mounting bracket - 2U Rackmount (Optional)
Operating System
Windows 10	Supported
Windows 8	Supported
Windows 7	Supported
User Manual	User Manual Download
Drivers	Windows Drivers
Linux	Supported
Environment
Operating Temperature	-25°C to 70°C (-13°F to 158°F) With Special Wide Temperature memory and SSD 0 to 40°C with Hard Disk 0 to 60°C with SSD
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, non-condensing
Relative Humidity	95% at 70°C
Vibration	- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis
Shock	- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms
EMC	CE, FCC, EN 50155, EN 50121-3-2
