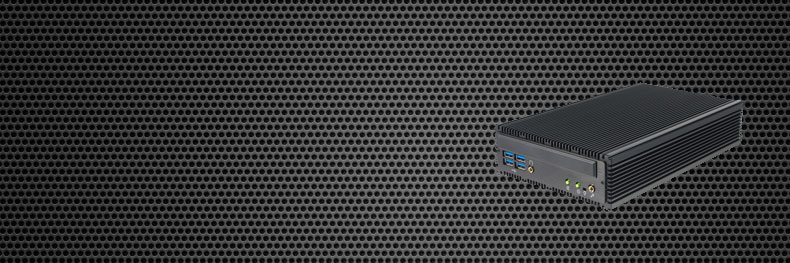

rohs compliant Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power
Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



SlimPro SeriesMini PC Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power

Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power

Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power is a perfect integrated high performance Industrial machine in the market. Powerful quad-core 4th generation Intel® Core™ i7 (Haswell) engine running with 15% enhanced productivity than former generation, Intel® Q87 chipset, dual channel DDR3 memory at 1600MHz, up to 16GB. Advanced Intel® HD Graphics 4600 supports DVI to VGA, DVI-I, DisplayPort interfaces, up to 2 independent 1080P displays. It is delivering leading performance, smart protection functions, trusted rugged reliability and compact integration.

Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power is ready to enable your Intelligent Transportation System (ITS), Machine Vision, Smart Manufacturing, Intelligent Surveillance, Energy Management, Industry 4.0 and any Internet of Thing (IoT) applications.
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC
  SP685FP Mini PC
4th Generation Intel® (Haswell)

4 x USB 3.0
Display Ports

Small Form Factor Industrial
Low Power Consumption Fanless Industrial PC
Echo 87F Industrial Fanless Mini PC with i7 Broardwell-H and Dual NIC


Features List

  • Intel Q87 core logic
  • Support the 4th generation Intel FCLGA1150 low power CPU
  • Support SODIMM DDR3 1333/1600Mhz 8GB * 2
  • On-board gigabit LAN and 4 x USB 3.0 ports
  • On-board DVI-I and Display Port
  • Optional dual mini-PCIe slots support one full size and one half size mini card
  • Support 6Gb/s SATA 2.5" hard disk (thickness equal or less than 15mm)
  • Support SATA slim optical disk drive
  • Power in: DC 12V/84W

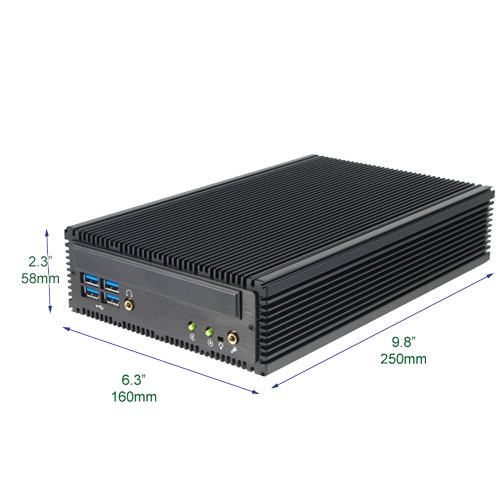

  • Dimension Wide 6.3" x Long 9.8" x High 2.3" (W160mm x L250mm x H58mm)
Related Products
i7 wide extended temperature mini pc computer

Echo 246F-PoE(4 x PoE) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246F(2 LAN) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE-PoER(x16 PCIe Slot) (2 x Removable HD Slot) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FE(x16 PCIe Slot) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FM(4 x M12 PoE Port) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FO-10GSR(2 Fiber 10GE) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FP(PCI Slot) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More
i7 wide extended temperature mini pc computer

Echo 246FW(Wide Temp) Slient Fanless Mini PC
9th Gen Intel® Core™ i3/i5/i7 Processors (CoffeeLake)

Read More


spacer
SlimPRO SP685FP
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





Silent PC - i7 Fanless Mini PC SlimPro SP685FP Quiet and Small in size with full desktop power
Specifications

System
Processor Quad Core 4th Generation/ Intel® Core™ LGA1150 low power CPU (Desktop Type)
Chipset Intel® Q87
BIOS Insyde UEFI BIOS
Memory 2 x DDR3 1600MHz SO-DIMM, up to 16GB
I/O Interface
Serial
- 1 COM RS-232, Optional 2nd COM
USB
- 6 x USB 3.0 (External)
Video
- DVI-I (Digital and Analog)
- Display Port
PS/2 - PS/2 Mouse and Keyboard Ports
LED Power, HDD
Expansion
Mini PCIe
Mini PCIe Socket :
- 1 Full-size for PCIe/ USB
- 1 Half-size for PCIe/ USB
Graphics
Graphics Processor - Intel® HD Graphics 4600
Interface
- DVI to VGA : Up to 1920 x 1200 @ 60Hz
- DVI-I : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 3840 x 2160 @ 30Hz
Storage
SATA
2 SATA III (6Gbps)
Storage Device
- 2 x 2.5" SSD/ HDD Bracket (Internal)
2nd SSD/HDD Slot shared with optical drive
Audio
Audio Codec Realtek® ALC892, 5.1 Channel HD Audio
Audio Interface 1 Line-out, 1 Mic-in
Ethernet NIC
LAN 1 Intel® I217LM Gigabit LAN
Power
Power Input Voltage 12V, DC-in
Power Adapter Input universal AC 100~240V; Output DC 12V/84W
Others
Smart Management Wake on LAN, PXE supported
HW Monitor CPU temperature, cooling fan speed, system voltage
Mechanical
Dimensions (W x L x H) Wide 6.3" x Long 9.8" x High 2.3" (W160mm x L250mm x H58mm)
Weight 2.4 kg (5.3 lb)
Mounting
- Optional U-Shape mounting bracket
- Optional Dual VESA mounting Bracket
- Optional Sliding Style Mounting Bracket
Operating System
Windows 10 Supported
Windows 8 Supported
Windows 7 Supported
Linux Ubuntu 14.04
Environment
Operating Temperature
0 to 40°C with Hard Disk
0 to 60°C with SSD
Storage Temperature -40°C to 85°C (-40°F to 185°F)
