      Detail Measurements

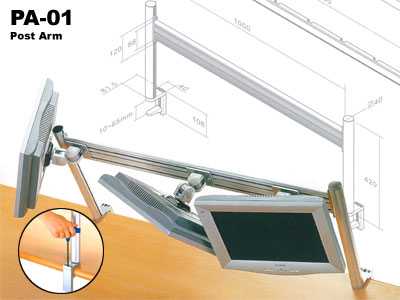

• PA-01 Post Arm
• Suits any thickness desk from 10~65mm
• Loading capacity: 30kgs
• Position of slot is adjustable to various height
• Complete with cable organiser on the rear to neatly route cables
• All lengths of cable organizer, vertical pillar support of slot can be OE
• Optional accessories: LA-17P, LA-19P, LA-17Q, LA-19Q and cable organizer

      Detail Measurements

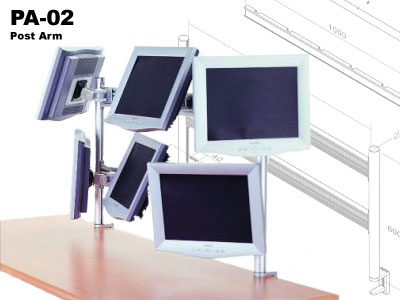

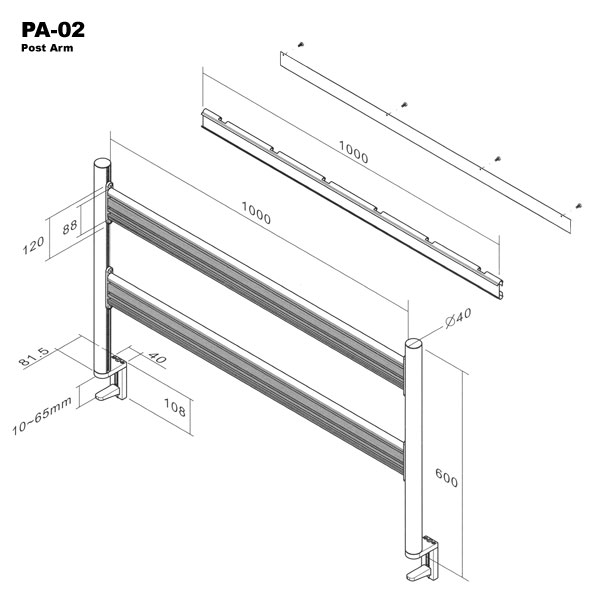

• PA-02 Post Arm
• Suits any thickness desk from 10~65mm
• Material of main body: aluminum plated
• Constructed with vertical pillar support: 40mm x 600mm (L)
• Horizontal slots: 88mm(W) x 1000mm(L)
• Loading capacity: 30kgs
• Position of slots are adjustable to various height
• Complete with cable organizer on the rear to neatly route cables
• Stores up to 6 x 8 cables
• All lengths of cable organizer, vertical pillar support or slots can be OEM
• Optional accessory: LA-17P, LA-19P and cable organizer

      Detail Measurements

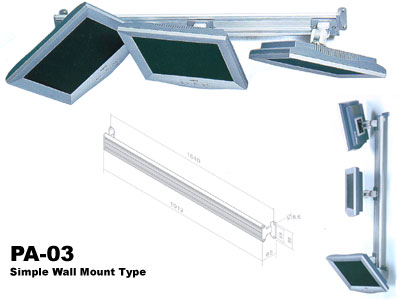

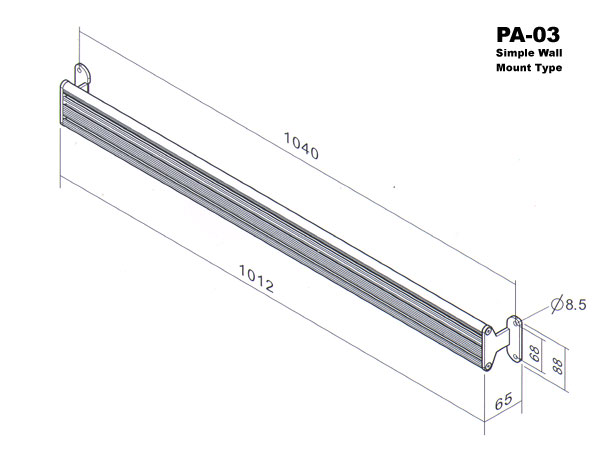

• PA-03 Post Arm
• Secures to solid wall
• Suits any thickness desks from 10 ~ 65mm
• Loading capacity: 30kgs
• Complete with cable organiser on the rear to neatly route cables
• Stores up to 6 x 8 cables
• All length of cable organizer, vertical pillar support or slot can be OME
• Optional accessory: LA-17 & LA-19

      Detail Measurements

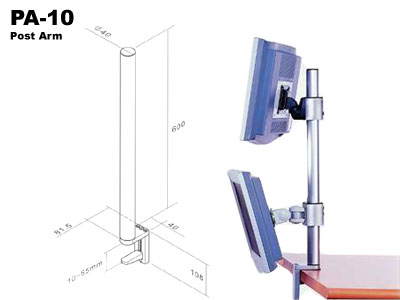

• PA-10 Post Arm
• For matching all customers' requirements, it can support not only 2~3 monitors, but also connects monitro or keyboard or mouse as a workstation at the same time.
• Suits any thickness desk from 10~65mm
• Material of main body: aluminum plated
• Loading capacity: 10kgs
• Vertical pillar support can be OEM
• Optional accessory: LA-17Q, LA-19Q and KA-01
