LA-16

  • Firmly fix on solid wall
  • For VESA mounting 75 * 75 mm
  • Loading from 3-8kgs LCD monitor
  • Two knuckles for adjusting:
    1. Swivel left & right total 180 degrees
    2. LCD monitor swivel 270 degrees

LA-17

  • Firmly fix on solid wall
  • For VESA mounting 75 x 75 mm
  • Loading from 3-8kgs LCD monitor
  • Three knuckles for adjusting:
    1. Swivel left & right total 180 degrees
    2. Pivot upward & downwards
    3. LCD monitor swivel 270 degrees

LA-17Q (Column Type) Compatible with PA-10, PA-21 and PA-22

  • Ingenious cam wrench design which can be secured or loosened to LA-17Q / LA-19Q easily
  • It can adjust to various to suit each user's requriement

Detailed Measurements

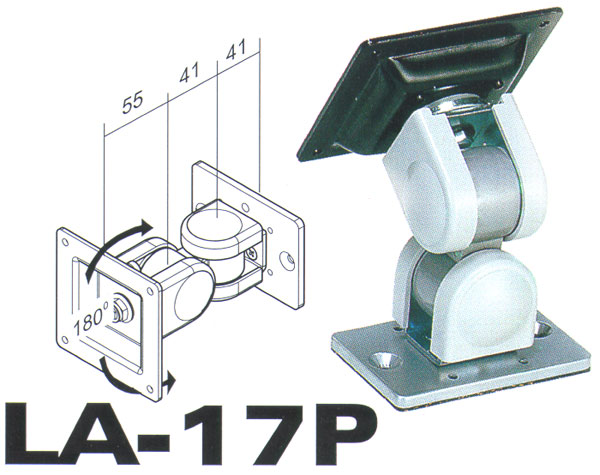

LA-17P (Slot Mount Type)

 Compatible with PA-01, PA-02 and PA-03


LA-18

  • Firmly fix on solid wall
  • For VESA mounting 75 * 75 mm
  • Loading from 3-6kgs LCD monitor
  • Four knuckles for adjusting
    1. First knuckles swivel left & right 180 degrees
    2. Second knuckles swivel left & right 180 degrees
    3. Pivot upward & downwards
    4. LCD monitor swivel 270 degrees

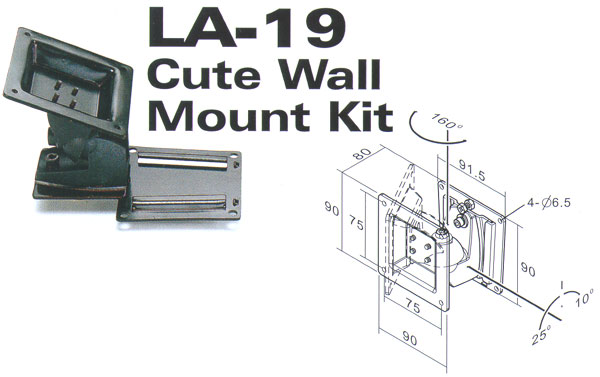

LA-19 (Cute Wall Mount Kit)

  • Firmly mounts to solid wall
  • Meets VESA mounting position: 75 x 75 mm
  • Loading capacity: 1~6kgs
  • Swivels to right and left up to 160o°.
  • Constructed of hard wear plastic
  • Pivots upwards to 10° and downwards to 25°

Detailed Measurements

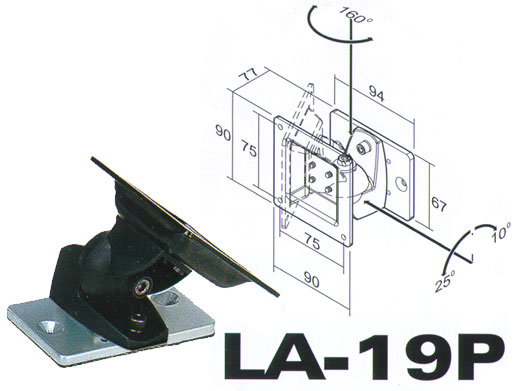

LA-19P (Slot Mount Type) Compatible with PA-01, PA-02, PA-03

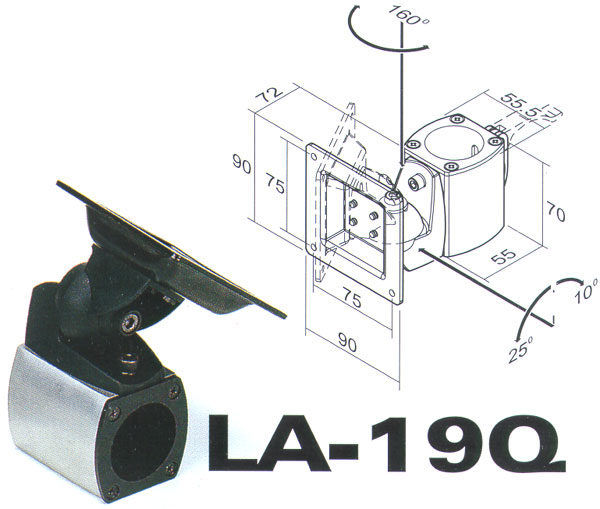

LA-19Q (Column Type) Compatible with PA-10, PA-21 and PA-22

  • Ingenious cam wrench design which can be secured or loosened to LA-17Q / LA-19Q easily
  • It can adjust to various to suit each user's requriement

Detailed Measurements
