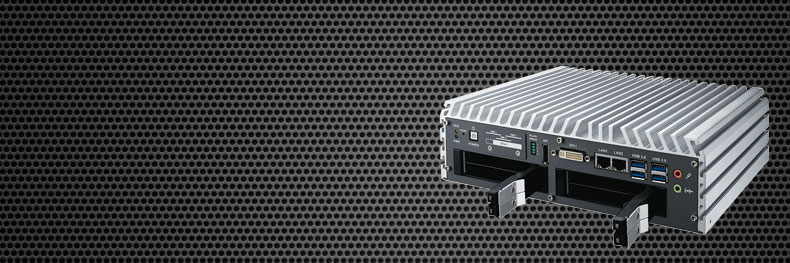

Echo 77F-QRD Fanless Mini PC with 4 hard drives

Echo 77F-QRD is a Fanless PC powered by Quad Core Intel® Core™ i7/ i5/ i3 processor, DDR3 or DDR3L dual channel up to 16GB memory; Intel® HD 4000 graphics supports DVI-I, DisplayPort, and dual channel 24-bit LVDS triple independent displays; 4 front-access 2.5" Hard Disk trays (Up to 4 x Hard Drives), 4 GbE PoE+, optional M12 connection for PoE+, dual GbE LAN, 4 Mini PCIe slots, 4 SIM card sockets (3 front-access, 1 internal), 4 USB 3.0 with independent controllers, 6V to 78V wide range DC input, smart surge protection up to 200V, configurable ignition control, UPS supported, 16 isolated DIO, fanless design and Echo 77QRD In-Vehicle Fanless Embedded System delivers excellent system performance for in-vehicle mission critical applications.

Echo 77F-QRD Fanless PC

Quad Core Intel® Core™ i7/ i5/ i3 processor

4 x Removable Hard Drives
4 x GbE PoE+ ports
Small Form Factor
Low Power Consumption PC

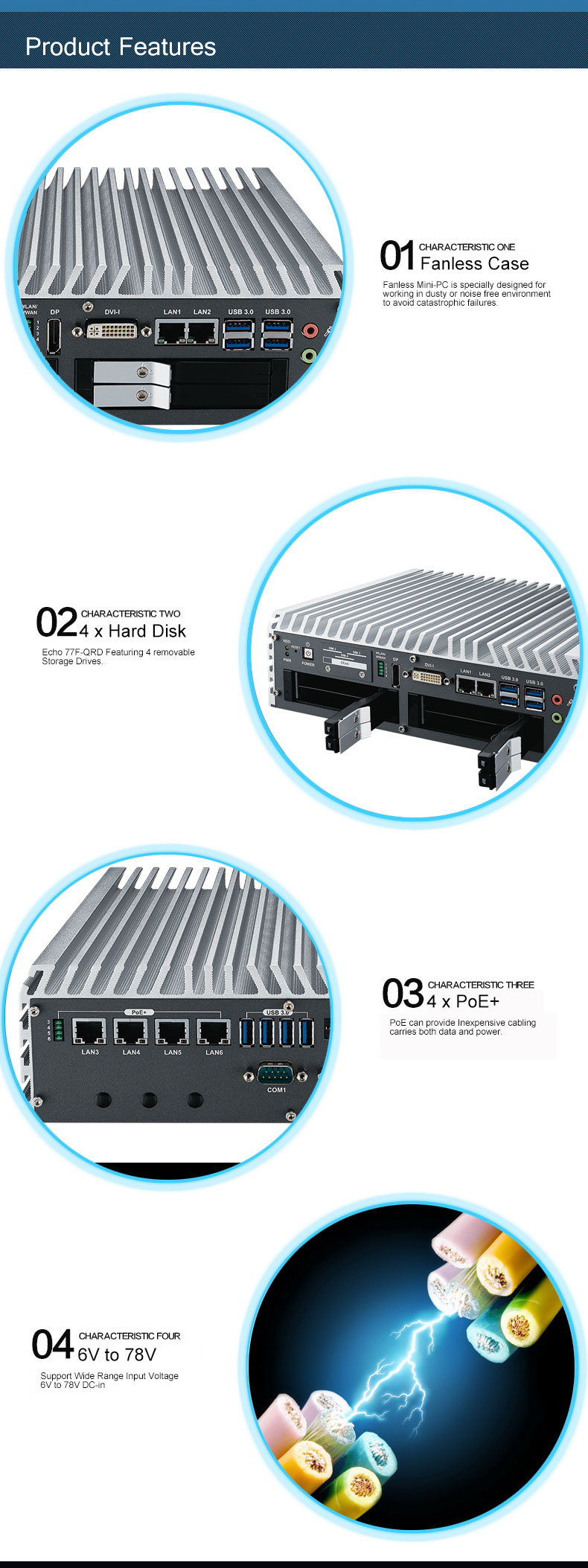

Features List

Quad Core Intel® Core™ i7/ i5/ i3 Processor

Fanless-Mini PC

4 GbE PoE+ and 2 GbE LAN

4 Mini PCIe slots

4 SIM Card sockets (3 External)

4 Front-access 2.5" Hard Drives

4 USB 3.0 with Independent controllers

Configurable Ignition Control

6V to 78V DC-in, UPS supported

EN50155 compliant

Intel® Firmware Raid 0/1/5 and 0+1 Mode (Hotswap)
(Only for windows OS)

Echo 77F-QRD Fanless Mini PC with 4 hard drives
Specifications

Processor	Quad Core 3rd Gen Intel® Core™ i7/ i5/ i3 Processor
Bios	AMI: American Megatrends, Inc UEFI supported.
SIO	IT8783
Video	Intel HD (Various on Processsor)
System Memory	- DDR3 1066/1333/1600 MHz or DDR3L 1066/1333MHz - Up to 16GB - 2 x 204-pin SO-DIMM Socket
Audio	Realtek ALC892, 5.1 Channel HD Audio
Serial	2 x COM RS-232 2 x COM RS-232/422/485
USB	- Front : 4 USB 3.0 - Rear : 4 USB 3.0 (4 Independent Controller) - 1 Internal USB 2.0 (Right Angle USB Connector) - 2 Internal USB 2.0 (6-pin JST)
SIM Card	-4 SIM Card Socket (3 External, 1 Internal)
Storage	4 x 2.5" Removable Hard Drives (2 x SATA III(6Gbps), 2 x SATA II(3Gbps)) (1 x mSATA (SATA II(3Gbps)) Intel® firmware Raid 0/1/5 and 0+1 Modes hotswap
LAN	Ethernet LAN 1: Intel® 82579LM Gigabit LAN supports iAMT 8.0 LAN 2: Intel® I210 Gigabit LAN PoE LAN 3: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210 LAN 4: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210 LAN 5: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210 LAN 6: Gigabit IEEE 802.3at (25.5W/48V) PoE+ by Intel®I210
Front I/O	Power / HDD LED WLAN/WWAN LED Power Button 3 x SIM Slots / CFast Slot Display Port (Cannot convert to Hdmi signal) DVI-I (Digital + Analog) 2 x Gb LAN 4 x USB 3.0 4 x Removable Hard Drives/ SSD Mic-In / Line-Out
Back I/O	4 x PoE+ 4 x USB 3.0 1 x Isolated DIO(16 Isolated DIO (8 DI, 8 DO, up to 40V Input) 1 x IGN On/Off Delay Power Input (Terminal Block 3 pins 6V to 78V) 4 x COM Ports

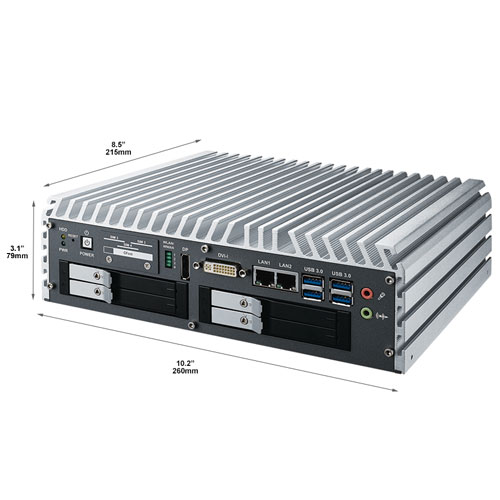

Dimension & Weight	10.2"W x 8.5"D x 3.1"H 260mm(W) x 215mm(D) x 79mm(H) 9.26lb. Fully Loaded
Power Management	Watch Dog Timer Available
Operating & Storage Temperature	Operating Temperature: 0 ~ 40C with Hard Disk 0 ~ 60C with SSD Storage Temperature: -40 ~ 85C (-40 ~ 185F) Operating Humidity: 5% to 95% humidity, non-condensing Relative Humidity: 95% at 70C Shock: - IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms Vibration- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis EMC: CE, FCC, EN 50155, EN 50121-3-2
Power Supply	External 110~240V AC-DC adapter 24V@3.75A 90W Power Loss Resume feature available Surge Protection: Up to 200V/1ms Transient Power Ignition control: 16 Modes
Mounting	-L Shape Mounting Included
Expansion Slot	- 1 Mini PCIe Socket (PCIe + USB + Internal SIM), optional with mSATA - 3 Mini PCIe Socket (PCIe + USB + External SIM)
OS Support	Windows 8.1 (x86, x64) Driver Windows 7 (x86, x64) Driver Windows XP Driver VMware vSphere® 5.5 View Connection Server 6.0.1 enterprises Fedora 13, Ubuntu 10.04 LTS, or Linux Kernel 3.0 above
