Home  Solutions Mounting Solutions Multiple Displays

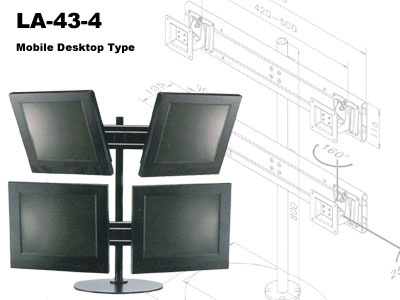

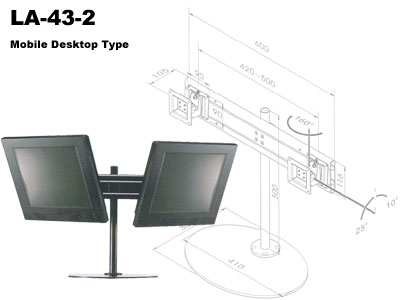

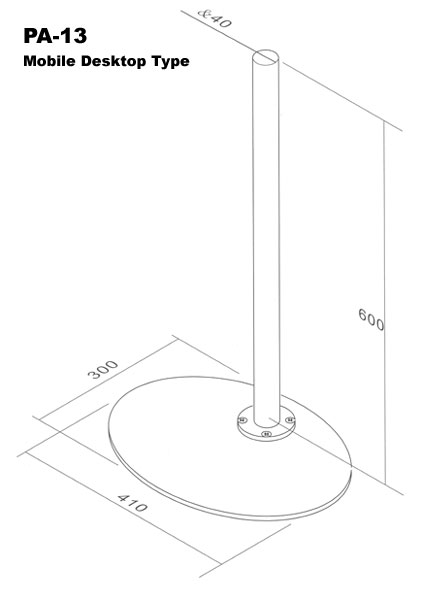

Mobile Desktop Type

    Detailed Measurements

• For matching all customer's requirements, it can support not only 2 monitors, but also connects monitor or keyboard or mouse as a workstation at the same time
• Material of main body: aluminum plated
• Loading capacity: 10kgs
• Vertical pillar support can be OEM
• Optional accessories: LA-17Q, LA-19Q and KA-01

    Detailed Measurements

• For two sets of 6kg monitors or below
• Meet VESA specs: 75mm x 75mm & 100mm x 100mm
• Compatible with two sets of LA-19, the design of gripping seat will be more convenient for installation
• The length of pillar 500mm can be adjusted t ovarious heights meeting all needs
• 600mm length track can be adjusted to the install location easily according to the size of monitors
• Range between two monitors: 420mm or 500mm
• Complete with cable organizer on the rear to neatly route cables.

    Detailed Measurements

• For four sets of 6 kg monitors or below
• Meet VESA specs: 75mm x 75mm & 100mm x 100mm
• Compatible with four sets of LA-19, the design of gripping seat will be more convenient for installation
• The length of pillar 800mm can be adjusted t ovarious heights meeting all needs
• 600mm length track can be adjusted to the install location easily according to the size of monitors
• Range between two monitors: 420mm or 500mm
• Complete with cable organizer on the rear to neatly route cables.

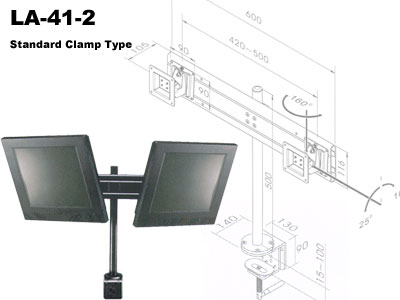

Standard Clamp Type

    Detailed Measurements

• For two sets of 6kg monitors or below
• Meet VESA specs: 75mm x 75mm & 100mm x 100mm
• Compatible with two sets of LA-19, the design of gripping seat will be more convenient for installation
• The length of pillar 500mm can be adjusted t ovarious heights meeting all needs
• 600mm length track can be adjusted to the install location easily according to the size of monitors
• Range between two monitors: 420mm or 500mm
• Complete with cable organizer on the rear to neatly route cables.
• A pad to protect desk surface
• Allow the thickness of desk from 15 to 100mm

    Detailed Measurements

• For four sets of 6 kg monitors or below
• Meet VESA specs: 75mm x 75mm & 100mm x 100mm
• Compatible with four sets of LA-19, the design of gripping seat will be more convenient for installation
• The length of pillar 800mm can be adjusted t ovarious heights meeting all needs
• 600mm length track can be adjusted to the install location easily according to the size of monitors
• Range between two monitors: 420mm or 500mm
• Complete with cable organizer on the rear to neatly route cables.
• A pad to protect desk surface
• Allow the thickness of desk from 15 to 100mm
