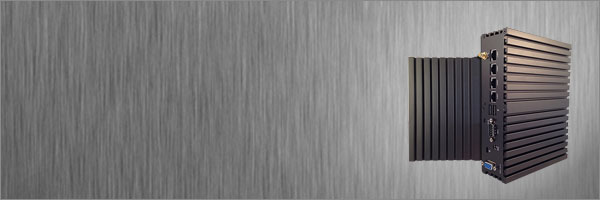

UNO 525G4 4xLAN Port(Gigabit Ethernet) Thin Client Gateway Small Mini PC

UNO 525G4 is a Mini-PC Computer features 2nd Generation Intel Atom Core D525 Prcoessor to deliver low power computing ability for demanding applications. And VGA, 4 x Gigabit Ethernet Ports, 4 x UBS 2.0, 2 x COM Port are perfect for Gateway, Network applications.

UNO 525G4 4LAN Thin Client Gateway Small Mini PC

UNO 525G4 4xLAN Mini PC

Atom Small Mini Computer

VGA
  2 x COM Ports
   Small Form Factor
    Low Power Consumption PC

Features

2^nd Generation Intel® Atom Dual Core D525

1 x DDR3 SO-DIMM.

4 x USB 2.0

4 x Realtek RTL8111EVL Gigabit Ethernet LAN Ports onboard

VGA

2 x COM Ports

Optional Wifi & Bluetooth

12V DC input

Low Power Consumption

Fanless Design

Small Form Factor

UNO 525G4 4LAN Thin Client Gateway Small Mini PC Specifications

Processor	2nd Generation Intel® Atom Dual Core D525
Graphics	Integrated Intel Graphics
System Memory	1 * 204-pin DDR3-800/1066 SO-DIMM Single Channel up to 4 GB
Storage	Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive 1 x CF Card
LAN	4 x Realtek RTL8111EVL Gigabit LAN onboard Support PXE Boot Support Wake on LAN

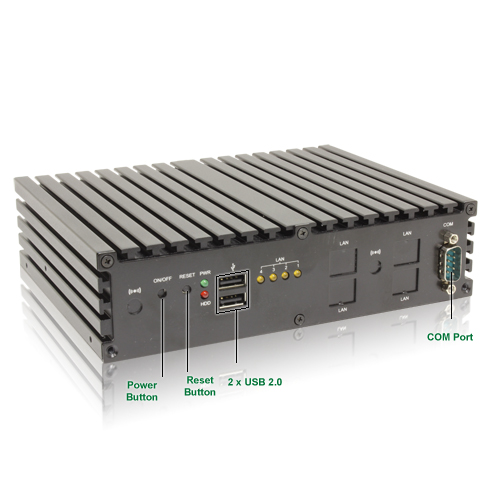

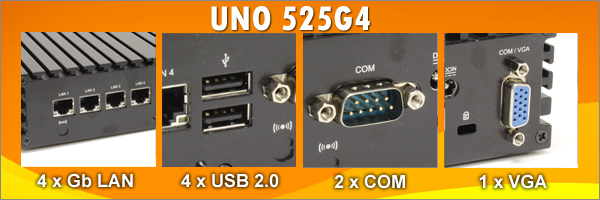

Back I/O	Front: Power Button Reset Butoon 2 x USB 2.0 1 x COM Port Rear: Power Input 12V 1 x COM Port 4 x RJ45 LAN (10/100/1000) 1 x VGA 2 x USB 2.0
Optional Features	Optional Mini PCI Express TV tuner Optional Wifi Optional Bluetooth
Dimension & Weight	180 (W) * 142 (D) * 48 (H) mm 3.2 lb. Fully Loaded
Operating & Storage Temperature	Operating Temperature: 0 to 40°C with Hard Disk 0 to 60°C with SSD Storage Temperature: -40 to 85°C
Power Supply	External 110~240V AC-DC Adapter 2-pin 12V DC@5A 60W Power Loss Resume feature available
Mounting	-Included L Shape mounting bracket
OS Support	Ubuntu Linux Windows 8.1 (x86, x64) Windows 7 (x86, x64) Windows XP
Certificate	CE, FCC, RoHS
Resolution	Support HDTV 1080p Support 16:9 resolution
