| Specifications |
| Processor |
VIA Eden (V4)
C7 Nano-BGA2 500MHz L1 128k, L2 128KB on die |
| Front Size Bus |
400 / 533 MHz |
| Chipset |
VIA CN700 + VT8237R Plus |
| Graphics |
Integrated with VIA CN700
Shared system memory up to 64MB
MPEG-2 hardware VLD.ldct and motion compensation |
| Memory |
1 x DDRII Sodimm (max. 1GB) |
| Audio |
VIA Vinyl VT1612A
AC-Link for Audio codec AC'97 2.1 |
| Storage |
1 x 2.5" SATA HD, CF disk or SSD
1 x Internal CF slot |
| LAN |
1 x Realtek RLT8100C 10/100 Mbps
Support PXE boot
Support Wake on LAN |
| Rear IO |
2 x USB 2.0 Ports
1 x Line Out
1 x Line In
1 x VGA
1 x RJ45
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x 12V DC input |
| USB |
8 x USB 2.0 (2 ports external and 6 internal ports) |
| SATA |
Supports up to two channel SATA connectors (the 2nd SATA is optional)
S-ATA drive transfer rate is capable of up to 150MB/s |
| Power |
Power DC-INPUT +12V +/- 5%
Power Lost Resume Function Supported
Watch Dog gtimer available
|
| Mounting |
Optional VESA standard wall mount |

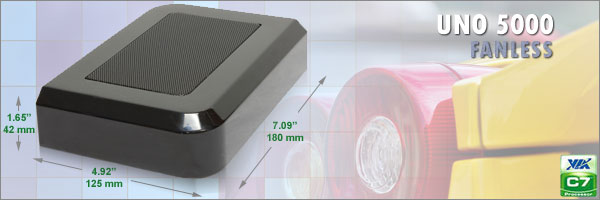

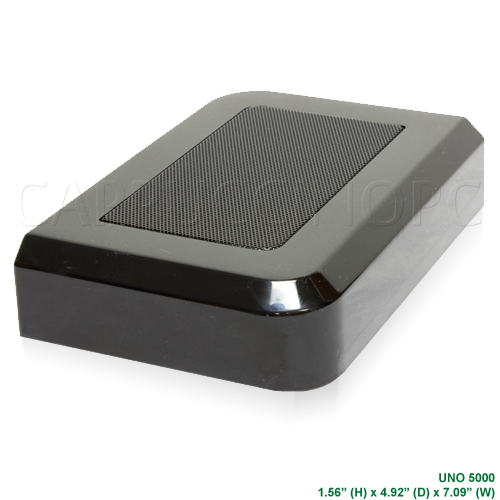

| Dimension |
42 H x 180 W x 125 D mm
1.65" H x 7.09" W x 4.92" D
VESA Compatible (VESA mount available as option) |
| Weight |
1.4 lb fully loaded |
| Operation Temperature |
0 ~ 40°C (with 2.5" HD) / 0 ~ 50°C (with CF card) |
| Operation Humidity |
5 ~ 95% @ 60°C non-condensing |
| AC Adapter |
External 110~240V AC-DC adapter 2-Pin 12V@3A 30W |
| OS Support |
Windows XP
Windows 2000
Windows XP Embedded
*Server OS is not recommended to work with Mobile chipset |
| Resolution |
-Maximum Resolution 1920 x 1440 32-bit 75 Hz
Support 16:9 Resolution
*But cannot support 1080p |
