| Specifications |
| CPU Type |
Intel Atom D525 Dual-Core 1.8GHz/1MB/667 CPU |
| MB Chipset |
ICH8M (82801 HBM) |
| Graphics |
Intel Atom D525 Integrated Graphics Engine
Dynamic Video Memory Technology (DVMT 4.0)
|
| Memory |
1 x DDRIII SO-DIMM (Max. 4 GB) |
| SATA |
Two SATA ports with independent DMA operation supported |
| Audio |
Intel High Definition Audio Specification Rev.1.0 Compliant |
| LAN |
2 x Realtek RLT8111DL 10/100/Gigabit LAN
Supports PXE boot
Supports Wake on LAN |
| IO Function |
Rear Panel:
3 x RS232 + 1 x RS422/485 (COM 3)
1 x Mic in
1 x Line out
2 x Gb Lans
2 x USB 2.0
1 x VGA |
| USB |
7 x USB 2.0 (2 external + 5 internal) |
| DIO & WDT |
Hardware digital Input & Output, 8xDI / 8xDO
Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion |
2 x PCIe Mini card for PCIe & USB interface
1 x CF Slot (Internal)
SIM Socket for 3G Modem
|
| Optional Features |
Optional Mini PCI-e TV Tuner
Optional Wifi
Optional Bluetooth
Optional Digital I/O board |
| Storage |
1 x 2.5`` SATA hard drive, SSD drive of CF disk |
| Mounting |
VESA Mounting holes ready on bottom of the case
Optional Antivibration Mounting bracket
|
| Power |
Optional wide voltage version +6V ~ +35V available.
12V Power Input
Supports power loss resume feature
External 100~240V AC-DC Adapter 4-pin 12V @ 5A 60W |
| Operation Temperature |
0 ~ 60°C with CF card
0 ~ 60°C with Regular SSD
-25 ~ 60°C with Wide Temperature SSD (Optional Model) |
| Operation Humidity |
5~95% @ 60°C, non-condensing |
| Dimension |

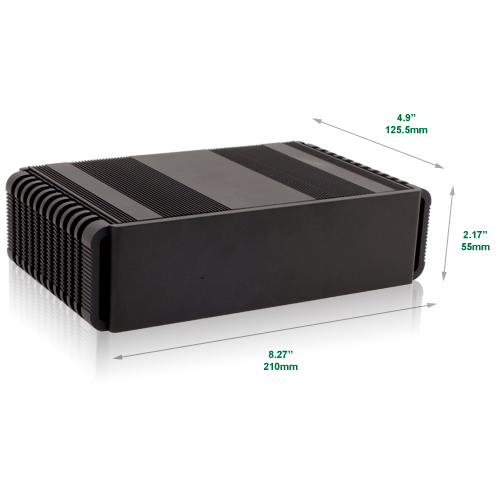

8.27"(W) x 4.9"(D) x 2.17"(H) |
| Weight |
3.15 lbs. Fully Loaded |
| OS Support |
Windows XP
Windows Vista
Windows 7 (x86, x64)
Windows 8 and 8.1(x86, x64)
|
| Resolution |
Support 16:9 resolution
Maximum Resolution: 2048x1536 32-bit 75 Hz |
