| Specifications |
| CPU Type |
Intel Atom D525 Dual-Core 1.8GHz/1MB/667 CPU |
| MB Chipset |
ICH8M (82801 HBM) |
| Graphics |
Intel Atom D525 Integrated Graphics Engine
Dynamic Video Memory Technology (DVMT 4.0)
|
| Memory |
1 x DDRIII SO-DIMM (Max. 4 GB) |
| SATA |
Two SATA ports with independent DMA operation supported |
| Audio |
Intel High Definition Audio Specification Rev.1.0 Compliant |
| LAN |
3 x Intel 82583V 10/100/Gigabit LAN
Supports PXE boot
Supports Wake on LAN
|

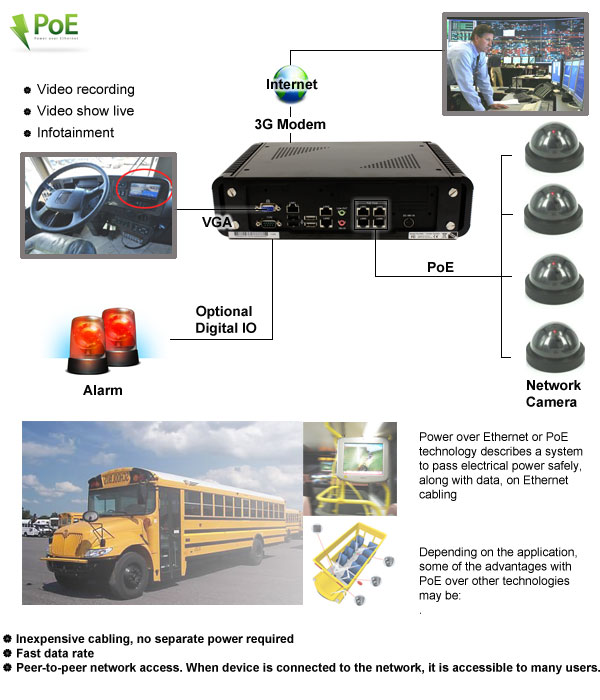

| PoE Lan |
4 Port From Realtek Gigabit Switch Controller
(Microsemi 4-Port 802.3af PSE Manager) |
| IO Function |
Rear Panel:
1 x RS232/422/485
1 x Mic in
1 x Line out
3 x Gb Lans
4 x USB 2.0
1 x VGA
4 x PoE Ports
|
| USB |
4 x USB 2.0 |
| DIO & WDT |
Hardware digital Input & Output, 8xDI / 8xDO
Hardware Watch Dog Timer, 0~255 sec programmable |
| Expansion |
1 x PCIe Mini card for PCIe & USB interface (Internal)
1 x CF Slot (Internal) |
| Optional Features |
Optional Mini PCI-e TV Tuner
Optional Wifi
Optional Bluetooth
Optional Digital I/O board |
| Storage |
1 x 2.5`` SATA hard drive, SSD drive of CF disk |
| Mounting |
Optional Wall Mount Bracket |
| Power |
48V Power Input
Supports power loss resume feature
External 100~240V AC-DC Adapter 4-pin 48V @ 2.5A 120W |
| Operation Temperature |
0 ~ 60°C with CF card
0 ~ 60°C with Regular SSD |
| Operation Humidity |
5~95% @ 60°C, non-condensing |

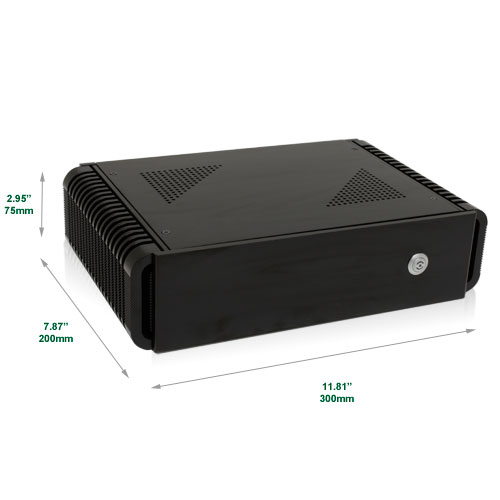

| Dimension |
11.81"(W) x 7.87"(D) x 2.95"(H) |
| Weight |
6.9 lbs. Fully Loaded |
| OS Support |
Windows XP
Windows Vista
Windows 7 |
| Resolution |
Support 16:9 resolution
Maximum Resolution: 2048x1536 32-bit 75 Hz |
