7000 Series

• The arm can fold up to fit in about 2" of space
• It can extend to 24" from where is mounted
• Adjustable gas cylinder creates a counterbalance, LCD display between 8-22 lbs.
• Over 14" of vertical movement about 7" up and 7" down
• Arm rotates 360° at three joints, the tilt mechanism can tilt over 200°

The arm floats the display above the work surface clearing the desk and saving valuable space. With little effort, the user can move their LCD up or down, forward or backward, left or right and tilt 200°. In addition, the monitor can be leveled, right and left, up to 90°. The arm uses an adapter plate which attaches to the back of the display. Also included is a universal mounting kit. This kit, allows the user to choose either a clamp, wall or through the desk type mount.

Mounting Options The 7000 Series LCD Monitor Arm includes the new mount kit which can be adapted toward several different mounts; desk edge, wall mount, reverse wall mount, and through desk mount. With the addition of the optional adapter brackets, this mount can attach to the steel case, Haworth, Herman Miller, and others, as well as specialized back panel slot walls such as SBFI, Woodtronics, CBA, LaCour, Novalink, Wall Street Trading, etc.

Edge Mount	Wall Mount	Thru-Desk Mount	Reverse Wall Mount	Panel System Mount	Slat Wall Mount

7000 Series LCD Radial Arm (Beige) $229.00

7000 Series LCD Radial Arm (Black) $229.00

LA-01 Deluxe Arms

• Adjusts the screen to the most comfortable viewing angle
• Holds the screen in any position without the need for knobs or levers
• Arms provide up and down, left and right, front and back pivot and tilting capability
• Provides counter clockwise and clockwise rotation of the arm
• Meets VESA standard, two mounting plates specs are provided: 75mm x 75mm and 100mm x 100mm
• Capability of monitor from 3 kgs to 8 kgs for various demands for each user
• Y-Y connector easily adjusts in different comfortable viewing
• Cable location helps to organize the cables in order
• Screen pivots 180 degrees front or back
• Screen pivots 180 degrees up or down
• Screen pivots 270 degrees left or right

LA-01 LCD Flat Panel Monitor Arm Standard Clamp Type (Gas system up to 6kgs) Please Call for Price

LA-20 Spring Arm

• Multi-knobs
• Save space and safety
• Adjusts the screen to the most comfortable viewing angle
• Holds the screen in any position without the need for knobs or levers
• Arms provide up and down, left and right, front and back pivot and tilting capacity
• Provides clockwise direction and counter clockwise rotation of the arm
• Meets VESA standard (Video Electronics Standards Association)
• One mounting plate spec is provided: 75mm x 75mm and 100mm x 100mm
• SUSPA series gas spring ensures the stability of product and strength of quality
• LA-20 using 1100N for capacity 3 to 8 kgs
• Y-Y universal joint using material of aluminum alloy connection easily adjusts in different comfortable viewing. It allows adjusting universal joint tension with monitor of different weights.
• Cable location helps to organize the cables in order on both of body sides

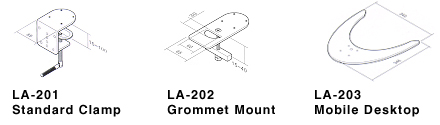

LA-202 Grommet Mount for LA-20 Please Call for Price

LA-203 Mobile Desktop for LA-20 Please Call for Price

LA-20 Multi-Functional LCD Arm Sprint Arm $119.00

LA-201 Standard Clamp for LA-20 $20.00

HA-100 Hospital LCD TV / Monitor Arm

• Ideal for most environments, including hospital, dentist and leisure
• Built in gas spring aids ease of movement
• Height adjustment 20° to 60°
• Overall Reach 1725mm
• Conforms to both 75mm and 100mm VESA standards
• Manufactured from aluminum alloy and coated with a special PVC covering allowing clinical cleaning
• Ideal for clean room environments
• Fully cable managed, concealing untidy cables
• Available in both wall and ceiling mounts
• Weight capacity 1 ~ 6 kgs

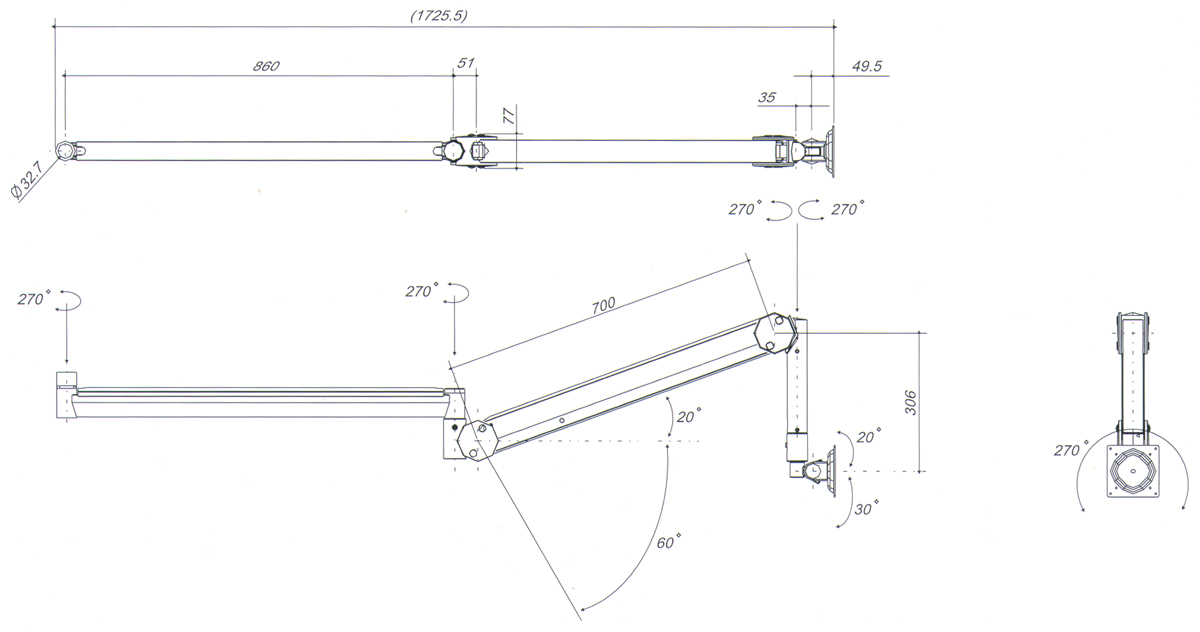

      Detail Measurements

HA-105 Hospital LCD TV/Monitor Arm (Wall Mount) Please Call for Price

HA-107 Hospital LCD TV/Monitor Arm (Ceiling Mount) Please Call for Price
