| Specifications |
| Processor |
Intel Core 2 Duo Processor
Intel Celeron M Processor |
| Memory |
Support 2 x SODIMM DDR2 667/800MHz
Maximum 8GB |
| Core Logic |
Intel GM45 / ICH9M (North / South) |
| Video |
Intel Graphics Media Accelerator 4500MHD |
| Audio |
Realtek ALC888 Software high definition audio CODEC |
| LAN |
Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
(Intel(R) PRO/1000 PL)
Support PXE boot
Support Wake on LAN
Optional 3 Intel® PRO/1000 PL(Headphone out is removed, coexist with Optical drive, DVI-D port added)
Optional 2 Gigabit LAN+Express Card Slot+Mini PCI Express slot |
| Firewire |
Built-in OHCI 1394a 1.1 compliance
Support up to 400Mb transfer rate |
| USB 2.0 |
Integrated 6 independent UHCI controller supporting USB 1.1 ports
Integrated 2 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices
|
| PCI Bus |
Support PCI Rev 2.3 specifications at 33MHz
Support PCI add-on card length shorter than 8.5" |
| SATA |
Support 2.5" hard disk drive & optical disk drive
Support AHCI function |
| Hardware Monitor |
Processor temperature; Voltage; CPU fan speed |
| Power Management |
ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC/USB Keyboard / Modem / LAN / Keyboard / Mouse
Power Loss Resume feature
Watch Dog Timer not available
|
| Switch and Jumper |

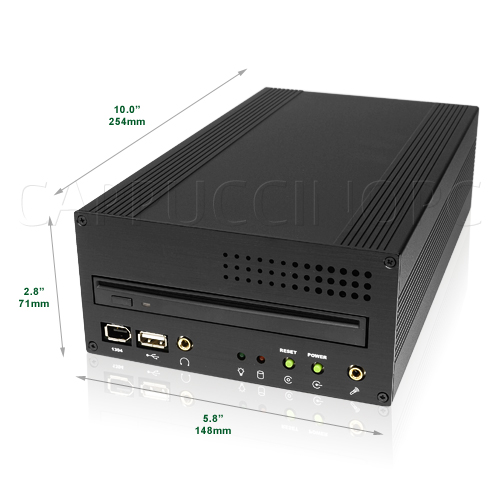

Front Panel:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output jack
1 x Power-on button
1 x Reset button
1 x Power-on and HDD LED
Rear Panel:
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x RS232 COM port
1 x RJ45 10/100/1000Mb Fast Ethernet
1 x Line-out output jack
2 x USB 2.0 / 1.1 port
1 x 15 pin VGA
1 x 12v DC power jack input |
| Optional Features |
-Optional 3 Intel® PRO/1000 PL
(Headphone out is removed, coexist with Optical drive, DVI-D port added)
-Optional 2 Gigabit LAN+Express Card Slot+Mini PCI Express slot
-Optional 2nd COM port
-Optional 3rd & 4th COM ports with cable hanging out
-Optional Parallel Port
-Optional 4 USB ports in total
-Optional 8 USB ports in total
-Optional DVI-D (Coexist with VGA)
-Optional DVI splitter cable with TV-out & YPrPb
-Optional 4 RCA in (Coexist with Optical Drive)
-Optional Wifi
-Optional Bluetooth
-Optional Mini PCI Express Slot + Card Express slot
-Optional Card Express Slot
-Optional Car PC version with DC10~26 input |
| Mounting bracket |
-Optional U-Shape mounting bracket
-Optional Dual VESA mounting Bracket
**Note Sliding style mounting bracket cannot be used for SP645E Case
|

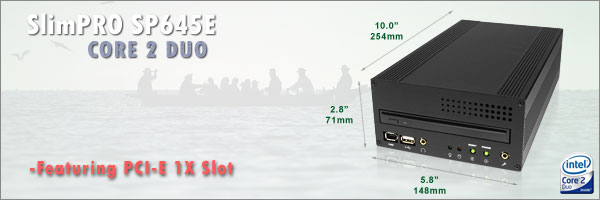

| Dimension & Weight |
5.82"W x 10.0"D x 2.79"H (14.8 x 25.4 x 7.1cm)
3.6kg (Fully Equipped) PCI-E card not included
|
| Operating Temperature |
0 to 40°C |
| AC/DC Adaptor |
External 110~240V AC-DC adapter 2-pin 12V DC @ 7A 84W
|
| OS Support |
Windows XP
Windows 2003 Server (32-Bit)*
Windows 2008 Server (32-Bit)*
Windows Vista
Windows 7
Windows 8 (x86, x64)
Ubuntu Linux
Fedora Linux
RedHat Linux
Centos Linux
*Server OS is not recommended to work with Mobile chipset |
| Resolution |
Support HDTV 1080p
Support 16:9 Resolution
Maximum Support Resolution:
VGA: 2048 x 1536 32-bit at 60Hz
DVI: 1920 x 1080 32-bit at 60Hz
Dual Display support with Optional DVI port add-on and/or splitter cable |
