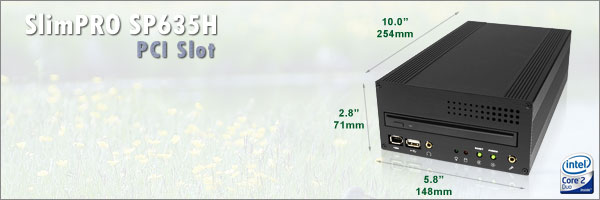

rohs compliant SlimPRO SP635H: 12V DC and Intel 945GM Chipset / PCI Slot
Fully functional and upgradable mini pc system
Features | Specifications | Options & Features| Picture Gallery | Buy Now



Features

  • Support Intel CoreDuo T2050, Core 2 Duo T7200 and Celeron M 430 CPU
  • Intel 945GM/ICH7M
  • Support Max 3GB DDR2 400/533 Dual Channel SODIMM
  • On-board Gigabit LAN, 1394 firewire port
  • Low noise and low power consumption
  • Optional 2nd COM Port
  • Optional 3 Gigabit LAN coexist with Optical Drive
  • Optional DVI version support dual display with splitter cable
  • Optional Parallel Port
  • Single PCI Slot Support up to 9.75" Long PCI card
  • Support 16:9 resolution
  • Windows Vista & Windows 7 Compatible
  • Power in: DC 12V/84W
  • 5.8"(W) x 10.0"(D) x 2.8"(H) (14.8 x 25.4 x 7.1 cm
  • Car PC Version Availabl

extended display Extended desktop mode allows the user to display a single document or application across multiple monitors, or use each monitor to display a different document or application. Extended desktop is useful for presentations where the user wishes to display one screen to the audience while reading notes from another (hidden) screen. It is also used to view spreadsheets across several monitors so that all columns or rows can be seen without scrolling.
Simultaneously (Cloning) means that a second screen is used to duplicate what is seen on the first screen. The most common usage of cloning is for individuals who are giving presentations through applications such as Power Point. This lets the presenter focus on the primary smaller screen while the audience can watch what is happening on the second screen. clone



intel core 2 duo windows 7

Powered by Intel® Core 2 Duo Technology
The Intel® Core™2 Duo desktop processor delivers revolutionary dual-core performance and breakthrough processor energy efficiency.

Genuine Windows 7™
Windows®  7, the next-generation OS from Microsoft®  , makes your PC simple and easy to use every day.

spacer
Special Options and Upgrades
bluetooth 3 giga lan 2 com ushape mounting kit dual mounting kit
Built-in Bluetooth Multiple
LAN Ports 		Multiple
COM Port		 U Shape Wall/Desk Mounting Kit Dual Vesa
Mounting Kit
spacer

spacer
SlimPRO SP635H
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

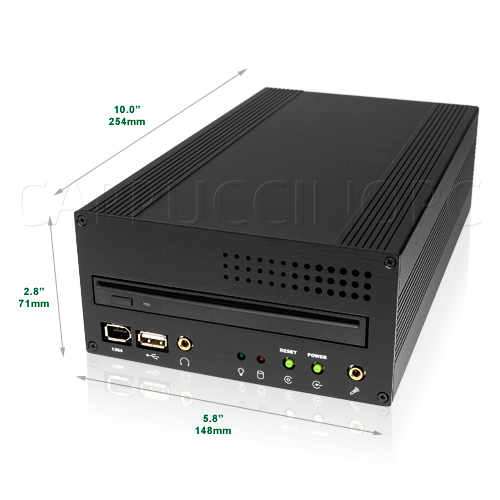

Pictures Gallery

Specifications
Processor

Intel Core Solo Processors
Intel Core Duo Processors
Intel Core 2 Duo Processors
Support Socket 479
Front Size Bus 533MHz, 667MHz

Memory Support SODIMM DDR II
Support Max 3GB DDR2 400/533/667 Dual Channel SODIMM
Core Logic Intel 945GM / ICH 7M (North / South)
Video Intel Graphics Media Accelerator 950 (Intel 945GM)
Audio Software AC`97 Audio CODEC (Realtek ALC655)
LAN Agere ET-131X Gigabit LAN
Supports PXE boot and WOL feature
Optional Features -Optional 3 x Agere ET-131X Gigabit LAN
-Optional SPDIF out
-Optional 2nd COM Port
-Optional Parallel Port
-Optional Onboard VGA version
-Optional Wifi
Firewire Built-in OHCI 1394a 1.1 compliance
Support up to 400Mb transfer rate
USB 2.0 Integrated 3 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices
IDE Support all standard slim CD-ROM/DVD-ROM/CD-RW/DVD-RW/Combo
SATA Support 1 x 2.5" SATA hard drive / CF disk / SSD
Expansion 1 x 32bit PCI Expansion Slot
Support 4" x 9.75" PCI Cards
Hardware Monitor System, processor temperature, voltage
Power Management ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC/USB Keyboard / Modem / LAN / Keyboard / Mouse
Support Power Loss Resume Last State Feature
Switch and Jumper Front Panel:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output jack
1 x Power-on button
1 x Reset button
1 x Power-on and HDD LED

Rear Panel:
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x RS232 COM port
1 x RJ45 10/100/1000Mb Fast Ethernet
1 x Line-out output jack
2 x USB 2.0 / 1.1 port
1 x DVI-I Port (DVI to DVI/VGA/YPrPb splitter cable included)
1 x 12v DC power jack input
OS Support Windows XP
Windows 2003 Server (32-Bit)*
Windows 2008 Server (32-Bit)*
Windows Vista
Windows 7
Ubuntu Linux
Fedora Linux
Centos Linux

*Server OS is not recommended to work with Mobile chipset
Resolution Support 16:9 Resolution
Maximum Support Resolution: 2048 x 1536 32-bit @ 75Hz
Dual Display support with onboard DVI port with DVI+VGA+YPrPb splitter cable
Mounting bracket -Optional U-Shape mounting bracket
-Optional Dual VESA mounting Bracket
**Note Sliding style mounting bracket cannot be used for SP645B Case
Dimension & Weight 5.82"W x 10.0"D x 2.79"H (14.8 x 25.4 x 7.1cm)
3.6kg (Fully Equipped)
Operating Temperature 0 to 40°C
AC/DC Adaptor External 110~240V AC-DC adapter 2-pin 12V DC @ 7A 84W
>
