| Specifications |
| Processor |
Intel Intel Pentium M or Celeron M Processor Dothan
Support 400MHz Front Side Bus
|
| Memory |
Support 2 x DDR 266/333/400 MHz DIMM
Maximum up to 2 GB
Uses Low-Profile (0.75``) Memory if CD ROM is used |
| Core Logic |
Intel 855GME / ICH 4 (North / South) |
| Video |
Intel I855GME Extreme Graphic 2, support 32MB DVMT |
| Audio |
Software AC97 Audio CODEC (Realtek ALC655) |
| LAN |
Intel Pro 10/100 |
| Multiple LAN (Optional) |
3 Realtek Giga LAN (RTL8110S-32) |
| Firewire |
Built-in OHCI 1394a 1.1 compliance
Support up to 400MB transfer rate |
| USB 2.0 |
Integrated 4 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices |
| IDE |
Dual Independent ATA-100/66/33 support
Support 1 x 2.5`` IDE hard drive, CF disk or SSD
Support 1 x IDE Optical Drive
|
| Hardware Monitor |
System, Processor temperature, voltage |
| Power Management |
ACPI 1.0b compliance and OS direct power management
Wake-on event: RTC/USB Keyboard/Modem/LAN/Keyboard/Mouse
Support Power Lost Resume Function
Support PXE Boot
Support Wake on Lan From S5
Support Watch Dog Timer
|
| I / O Ports |
Front:
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output Jack
1 x Power-on Button
1 x Rest Button
1 x Power LED
1 x HDD LED
Back:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x RS232 Serial Port
1 x Parallel Port
1 x RJ45 10/100Mbps Ethernet port
1 x Line-out Jack
2 x USB 2.0 / 1.1 ports
1 x 15 pins VGA
1 x 12v DC Power input |
| Optional Features |
-Optional 4 DVR input with either 1 or 4 BT878A Decoder chipset
(headphone out and front USB port are removed)
-Optional 3 Realtek RTL8110S-32 Gigabit LAN
(Headphone out and Front USB port are removed)
-Optional PCMCIA slot
(optical drive, Headphone out and front USB port are removed)
-Optional front access CF slot (Optical Drive and front USB port are removed)
-Optional SPDIF Out
-Optional 2nd COM port
-Optional 4 COM ports
-Optional Car PC Version
-Optional Wifi
-Optional Bluetooth |
| Expansion |
1 x 32bits slot support up to 9.75`` long PCI card
|
| Mounting bracket |
-Optional U-Shape mounting bracket
-Optional Dual VESA mounting Bracket
|

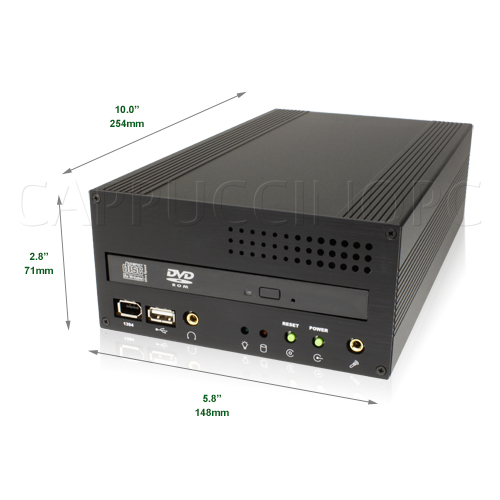

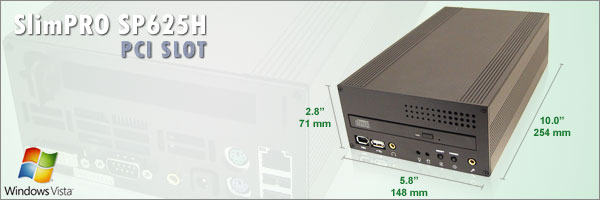

| Dimension & Weight |
5.82" x 10.0" x 2.79"
3.6kg (fully equipped) |
| OS Support |
Windows XP
Windows Vista
Ubuntu Linux
Fedora Linux
Debian Linux
RedHat Linux
Centos Linux |
| Resolution |
Maximum Support Resolution: 2048 x 1536 32bits@75Hz
|
| AC/DC Adaptor |
External 110~240V AC-DC adapter 2-pin 12V DC @ 7A 84W |
| Operating Temperature |
0 to 40°C |
